New IP & Power Solutions ...for 2019

Ethernet over Coax

Managed Ethernet over Coax PoE Switches, up to 300m at 100Mbps or up to 500m at 25Mbps.

Features:

• Deploy IP cameras/edge devices up to 300m (100Mbps) 500m (25Mbps) over coax without repeaters.
• Generates PoE/PoE+ up the coax to an eBridge transceiver.
• Eliminates the costs and labor associated with installing new network cabling.
• Control, monitor and report power/diagnostics from anywhere over the network.
• Built-in battery charging (RE2 optional rack mount battery enclosure)
• 115VAC/230VAC input.
• Compact 1U EIA 19" rack mount chassis.
• UL Listed in the U.S. and Canada, CE Approved.

8-Port EoC Receiver with Integral PoE Switch

eBridge800E

• Eight (8) 100Mbps coax ports
• Two (2) Gigabit Uplinks
• 30W full power per port (240W of total power)

eBridge8E

• Eight (8) 25Mbps coax ports
• One (1) Gigabit Uplink
• 30W full power per port (240W of total power)

Compatible Transceivers for eBridge800E:

eBridge100TM

- Single port hardened Transceiver. Dimensions: 2.5"W x 3.8"D x 1"H

eBridge100ST

• Single port hardened mini-Transceiver.
• More compact design for tighter spaces Dimensions: 2.27"W x 2.645"D x 1.12"H

Compatible Transceivers for eBridge8E:

eBridge1PCTX

- Single port hardened Transceiver. Dimensions: 2.5"W x 3.8"D x 1"H

eBridge1ST

Embedded

• Single port hardened mini-Transceiver.
• More compact design for tighter spaces Dimensions: 2.27"W x 2.645"D x 1.12"H

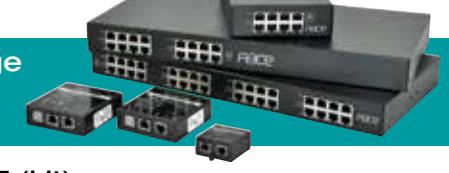

Long Range Ethernet

Extend Ethernet range 5x the distance - without repeaters.

Features:

• Deploy IP cameras/edge devices up to 500m over CAT5e/6.
• Passes PoE/PoE+ generated from midspan/endspan.
• Data rate 100Mbps full duplex.
• Supports PoE (802.3af) and PoE+ (802.3at) devices.
• Receivers available with 1, 4, 8 or 16 ports.
• UL Listed in the U.S. and Canada, CE Approved.

Compatible Transceivers:

Pace1PTM

• Single port hardened Transceiver.
• Also supports single UTP up to 150m.

Pace1ST

• Single port hardened mini-Transceiver.
• More compact design for tighter spaces.

Long Range Ethernet Adapters

Pace1PRMT (kit)

- Single port adapter kit includes a Pace1PRM Receiver and a Pace1PTM Transceiver. Also supports single UTP up to 150m.

Pace1STR (kit)

- Single port adapter kit includes a Pace1PRM Receiver and a Pace1ST Mini Transceiver.

Single & Multi-Port Receivers:

Pace1PRM

- Single port Receiver.

Pace4PRM

- Four (4) port Receiver.

Pace8PRM

- Eight (8) port Receiver.

Pace16PRM

- Sixteen (16) port Receiver

PoE Solutions ®

Managed Midspans with even more power per port for maximum flexibility...

Features:

• Supports PoE (802.3af), PoE+ (802.3at) and Hi-PoE (802.3bt) devices up to 100m over CAT5e/6.
• 10/100/1000 Ethernet ports
• Control, monitor and report power/diagnostics from anywhere over the network.

• Built-in battery charging (RE2 optional rack mount battery enclosure)
• 115VAC/230VAC input.
• Compact 1U EIA 19" rack mount chassis.
• UL Listed in the U.S. and Canada, CE Approved (pending)

Managed Hi-PoE Midspans

NetWay8BT

• Supports up to eight (8) PoE/PoE+/Hi-PoE cameras/devices.
• 90W max per port (480W of total power)

NetWay8GP

• Supports up to eight (8) PoE/PoE+/Hi-PoE cameras/devices.
• 60W max per port (480W of total power)

NetWay8GL

• Supports up to eight (8) PoE/PoE+/Hi-PoE cameras/devices.
• 60W max per port (not to exceed 240W of total power)

PoE Solutions ®

Managed Midspans with more bandwidth and power for added versatility.

Features:

• Supports PoE (802.3af) and PoE+ (802.3at) devices up to 100m over CAT5e/6.
• 10/100/1000 Ethernet ports
• Control, monitor and report power/diagnostics from anywhere over the network.

• Built-in battery charging (RE2 optional rack mount battery enclosure)
• 115VAC/230VAC input.
• Compact 1U EIA 19" rack mount chassis.
• UL Listed in the U.S. and Canada, CE Approved .

8-Port Managed PoE Midspan

NetWay8G

• Supports up to eight (8) PoE/PoE+ cameras/devices.
• 30W full power per port (240W of total power)

PoE/PoE+ Gigabit Extender

NetWayXTG

• Interfaces with NetWay midspans/switches to extend data (video) an additional 100m.
• PoE/PoE+, IEEE 802.3af (15W) and IEEE 802.3at (30W) compliant
• A maximum range of more than 600m is possible using multiple repeaters, (based on camera/device port requirement).

16-Port Managed PoE Midspan

NetWay16G

• Supports up to sixteen (16) PoE/PoE+ cameras/devices.
• 30W full power per port (480W of total power)

PoE Solutions ®

PoE Switches

Features:

• Supports PoE (802.3af), PoE+ (802.3at) devices up to 100m over CAT5e/6.
• 10/100/1000 Ethernet ports
• Control, monitor and report power/diagnostics from anywhere over the network.
• Built-in battery charging (RE2 optional rack mount battery enclosure)
• 115VAC/230VAC input.
• Compact 1U EIA 19" rack mount chassis.
• UL Listed in the U.S. and Canada, CE Approved.

NetWay8E

• Supports up to eight (8) PoE/PoE+ cameras/devices.
• Two (2) Gigabit uplinks
• 30W full power per port (240W of total power)

5-Port Switch Board

NetWay5B

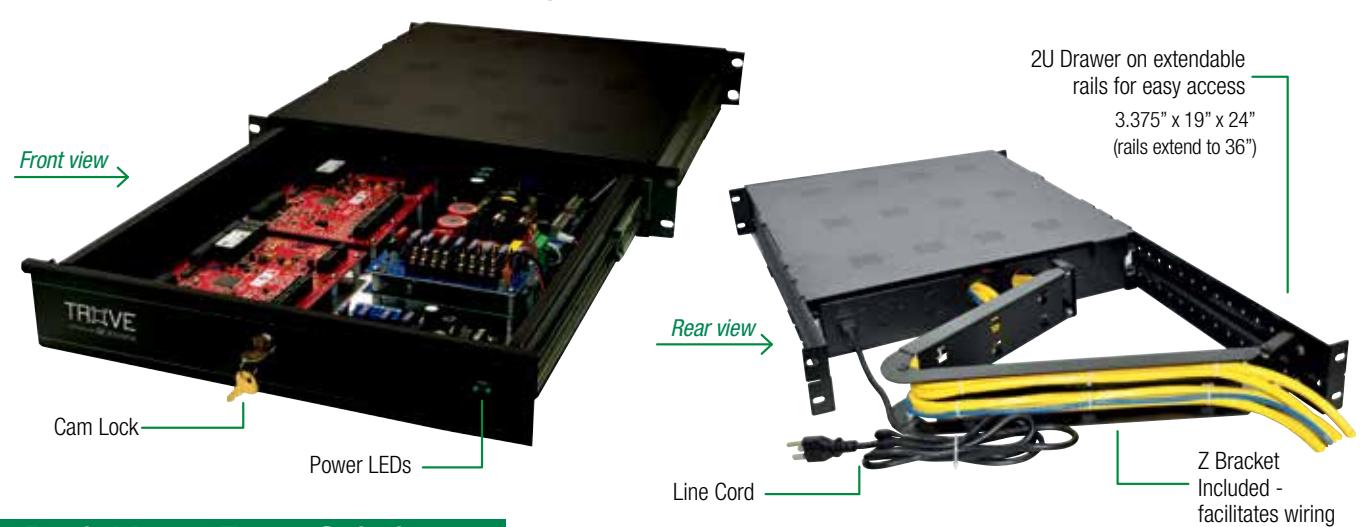

• 5-port switch ideal in Trove series units, utilizing a single network cable to connect up to four (4) network devices, reducing material and labor costs.
• Input options of PoE, 12VDC or 24VDC.
• Five (5) 10/100/1000 Ethernet ports.
• PoE IEEE 802.3af (15W) and PoE+ IEEE 802.3at (30W) compliant.

PoE & Fiber Solutions ®

Managed Hardened PoE Switches with LiFePO4 (Lithium Iron Phosphate) Battery Charger

Benefits of using LiFePO4 Batteries:

• Long cycle life (greater than 5,000).
• Up to 99% efficiency, allowing faster charging with minimal loss.
• Lower self-discharge rate.
• Reduces service calls and maintenance.
• 10 year shelf life.
• Up to 40% more up time vs. an equivalent sized sealed lead acid battery.
• Single battery saves space, cost, weight and labor.

LiFePO4 Battery

BTL125

• 12VDC / 4.5A Lithium Iron Phosphate Battery
• Compatible with NetWay Spectrum series hardened switches featuring LiFePO4 charger.

Battery Shelf

PoE & Fiber Solutions ®

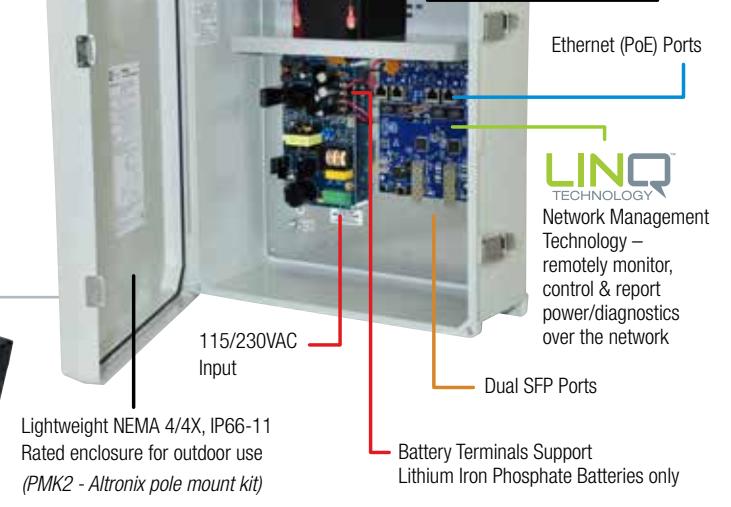

Managed Hardened PoE+ Switches with Optimized Lithium Iron Phosphate (LiFePO4) Battery Charger

Features:

• Includes Outdoor NEMA4/4X rated enclosure PoE+ Switch and 75W power supply/charger
• One (1) or Two (2) Gigabit SFP (Fiber) ports Compatible with Altronix SFP modules: P1MM (multi-mode), P1SM10 (single mode), P1AB2K (single strand) or P1GCE (copper)
• Three (3), four (4) or eight (8) 10/100/1000 Mbps Ethernet ports.
• 75W total power (max).
• IEEE 802.3at (30W), IEEE 802.3af (15W) compliant, or Hi-PoE (60W).
• Supports 12V LiFePO4 (lithium iron phosphate) batteries only (BTL125).
• Battery terminals can be utilized as a 12VDC Aux. output rated @ 800mA, when battery backup not used.
• Automatic switch over to stand-by battery when AC fails.

• Built-in power management allows for remote camera reset, control and monitoring of power, anywhere over the network.
• Email and Windows Dashboard Alert notifications report real-time diagnostics.

• UL Listed in the U.S. and Canada (pending).
• CE Approved.
• Backed by a Lifetime Warranty & Proudly Made in the U.S.A.
• Large outdoor NEMA4/4X rated outdoor enclosure with battery shelf: 17.53"H x 15.3"W x 6.67"D (Optional PMK2 Pole Mount Kit available)

Model Number	SFP Ports	PoE/PoE+ Ports	Hi-PoE Ports	Total Power
NetWaySP3LWPX	1	3
NetWaySP4LWPX	2	4	1	75W (not to exceed)
NetWaySP8LWPX	2	8
NetWay4EWPX	1	4

Enhanced Power

Network ready power with enhanced features and versatility.

Features:

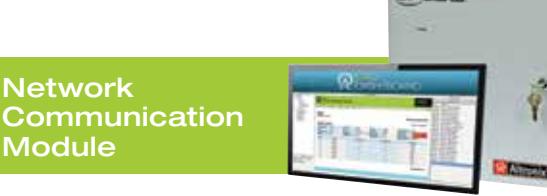

Coupled with our LINQ2 Network Communication Module you can control, monitor and report power from anywhere...

• Wide range of power configurations with single or multiple outputs.
• Built-in fire alarm disconnect.
• Over voltage protection guards against equipment damage.
• 30-50% faster battery charging.
• Low power cutoff protects stand-by batteries from deep discharge.
• All models include additional aux. Class 2 Rated power-limited output rated @ 1 amp.
• AC fail, low battery and battery presence supervision.
• Power LED visible on the enclosure door.
• Enclosure accommodates up to two (2) 12VDC/7AH batteries.
• Includes cam lock and battery leads.
• UL Listed in the U.S. and Canada, CE Approved.

Altronix eFlow Series Model	Fuse Protected Outputs*	Output Voltage & Current (max)
eFlow3N	1	12VDC or 24VDC at 2A
eFlow3N4	4	12VDC OF 24VDC at 2A
eFlow4N	1	12VDC or 24VDC at 4A
eFlow4N8	8	12 VDC 01 24 VDC at 4A
eFlow6N	1
eFlow6N8	8	12VDC or 24VDC at 6A
eFlow6N16	16
eFlow102N	1
eFlow102N8	8	12VDC at 10A
eFlow102N16	16
eFlow104N	1
eFlow104N8	8	24VDC at 10A
eFlow104N16	16

Altronix eFlow-ACM Series Model	Fuse Protected Outputs*	Output Voltage & Current (max)	Additional ACM Features
eFlow4NA8		12VDC at 3.3A or 24VDC at 3.6A	8-Fail-Safe/Fail-Secure Outputs
eFlow6NA8	8	12VDC at 5.3A or 24VDC at 5.6A	8-Trigger Inputs
eFlow102NA8		12VDC at 9.3A	8-Aux Power Outputs
eFlow104NA8		24VDC at 9.6A	Fire Alarm Disconnect

*Available with PTC Protected Outputs

Network Power Management

Control, Monitor and Report Power/Diagnostics from anywhere over the network.

LINQ™ Technology Features:

• Provides local and/or remote access to critical information via LAN/WAN.
• Third party certified cybersecurity.
• Individual password protected user levels.
• Report system diagnostics via dashboard and/or email alert notification.
• Local and/or remotely control outputs and reset devices.
• Enclosures internal temperature monitoring.
• Event log tracks history.
• Manage and maintain devices at a single or multiple site via Altronix LINQ™ DashBoard
• Programmable time events: Control outputs and power supply via flexible timing parameters
• Reduces system downtime, eliminate costly service calls and create RMR opportunities
• Includes operating software and 6ft. USB cable.

LINQ2

• Monitor and control power while reporting system diagnostics via Email notifications for two (2) Altronix eFlow power supply/chargers, (eFlow, Maximal-F series and Trove systems)
• Diagnostics/monitoring features include:
• Input and output voltage and current monitoring
• Real time battery health monitoring
• ...and more!
• Two (2) integral network controlled Form "C" relays may be used for myriad applications.
• UL Listed in the U.S. and Canada, CE Approved.

Network Power Management

Upgrade, control and communicate with virtually any low voltage AC or DC power supply over the network.

LINQ™ Technology Features:

• Provides local and/or remote access to critical information via LAN/WAN.
• Third party certified cybersecurity.
• Individual password protected user levels.
• Report system diagnostics via dashboard and/or email alert notification.
• Local and/or remotely control outputs and reset devices.
• Enclosures internal temperature monitoring.
• Event log tracks history.
• Manage and maintain devices at a single or multiple site via Altronix LINQ™ DashBoard
• Programmable time events: Control outputs and power supply via flexible timing parameters.
• Reduces system downtime, eliminate costly service calls and create RMR opportunities.
• Includes operating software and 6ft. USB cable.

Network Power Distribution Module

LINQ8PD

• Facilitates monitoring, reporting and control of one (1) or two (2) AC or supervised DC power supply/chargers.
• Output voltage is individually selectable for each of the eight (8) outputs when utilizing two (2) power supplies.
• Diagnostics/monitoring features include:
  • Input and output voltage and current monitoring
  • Real time battery health monitoring
  • ...and more!
• Retrofits with most currently installed multi-output power supply/chargers.
• Battery backup is selectable by output.

LINQ8PDCB

- LINQ8PD with PTC protected outputs.

Access Control Accessories

VR6 & PDS8 easily stack together to provide 5VDC or 12VDC and 24VDC simultaneously – individually selectable over each of the 8 outputs... all on one footprint!

Features:

- VR6 reduces the cost of adding another power supply.

- The ACMS8's pluggable design allows for an instant and seamless connection to the VR6.

• Stackable mounting configuration saves valuable enclosure space.
• UL Listed in the U.S. and Canada, CE Approved.

Kits

PDS8K1

- Includes PDS8 and VR6.

PDS8CBK1

- Includes PDS8CB and VR6.

Voltage Regulator

VR6

• Converts a 24VDC input into a regulated 5VDC or 12VDC output.
• Input: 24VDC @ 1.75A Output: 5VDC @ 6A Input: 24VDC @ 3.5A – Output: 12VDC @ 6A
• Surge suppression.

Dual Input Power Distribution Module

PDS8

• Any of the eight (8) fuse protected power outputs are selectable to follow power input 1 or input 2.
• 5VDC to 24VDC up to 10A or 16VAC to 28VAC up to 10A.
• Individual outputs may be set to OFF position for servicing.
• Multiple units may be daisy-chained to accommodate larger systems.

PDS8CB

- PDS8 with PTC protected outputs.

Access Control Accessories

VR6 & ACMS8 easily stack together to provide 12VDC and 24VDC simultaneously – individually selectable over each of the 8 outputs... all on one footprint!

Features:

• Reduces the cost of adding another power supply.
• Stackable mounting configuration saves valuable enclosure space.
• The pluggable design allows for an instant and seamless connection to the VR6.
• Bi-color voltage output LED indicators.
• Reduces number of batteries required for overall system backup.
• Selectable voltage allows for wider range of lock options.
• Easily daisy chain multiple ACMS8's to accommodate larger systems.
• UL Listed in the U.S. and Canada, CE Approved.

Kits

ACMS8K1

- Includes ACMS8 and VR6.

ACMS8CBK1

- Includes ACMS8CB and VR6.

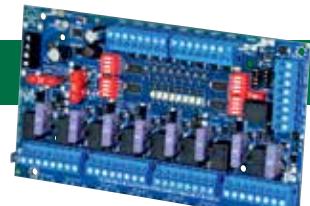

Dual Input Access Power Controller

ACMS8

• Eight (8) Access Control System trigger inputs:
• a) Eight (8) normally open (NO) inputs.
• b) Eight (8) normally closed (NC) inputs.
• c) Eight (8) open collector sink inputs.
• d) Any combination of the above.
• Eight (8) selectable 12VDC or 24VDC independently controlled outputs. Output options:
• a) Eight (8) Fail-Safe and/or Fail-Secure power outputs;
• b) Eight (8) relays (type to be determined, i.e. solid state, removable, etc.)
• c) Any combination of the above.
• Outputs are selectable to follow power input 1 or input 2.
• Eight (8) auxiliary power outputs (unswitched).
• Fire Alarm disconnect (latching or non-latching) is individually selectable for any or all of the eight (8) outputs.
• Fire Alarm disconnect input options:
• a) Supervised Normally open (NO) or normally closed (NC) dry contact input
• b) Polarity reversal input from FACP signaling circuit.

ACMS8CB

- ACMS8 with PTC protected outputs.

Lock Power and Control

Power Controller for Motorized Locking Devices & More...

Features:

• Input 115VAC, 60Hz, 2.5A or 230VAC, 50Hz, 1.5A.
• Two normally open ADA inputs for special mode of interfacing with automatic door operators.
• One (1) 19.8VDC-26.4VDC @ 0.8A rated filtered regulated auxiliary output for applications with battery back-up, 24VDC-26.4VDC @ 0.8A rated for applications in US not requiring battery back-up. Not affected by FACP trigger.
• One (1) 12VDC filtered regulated auxiliary output rated 0.5A. Not affected by FACP trigger.
• Two (2) follower Normally Open relay outputs for controlling ADA actuators/accessories rated 28VDC @ 0.5A.
• Two momentary door operator activation relay outputs.
• Trouble relay output indicating low AC voltage trouble and battery trouble.

• Built-in charger for sealed lead acid batteries.
• Automatic switch over to stand-by battery when AC fails.
• LED indicators:
• AC Power LED indicates AC presence.
• Trigger output LEDs indicate panic device status / opened (activated, short circuit).
  • Fire Alarm Interface (FAI) indicates FACP interface is activated.
• Battery LED indicates low battery during AC failure and battery test.
  • AC status LED indicates loss of AC power.

Low Current Locking Device Power Controller

StrikeIt4

- Two (2) 19.8VDC-26.4VDC rated individually controlled lock outputs configurable for fail-secure or fail-safe electronic locking hardware for applications with battery back-up.

• Two (2) Normally Open (N.O.) trigger inputs (Input 1 and Input 2).
• FACP Normally Closed (N.C.) input.

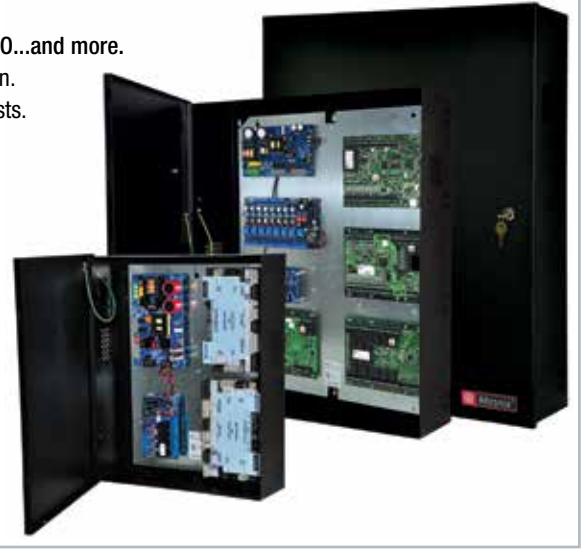

Customize your access control with the industry's leading manufacturers.

Features:

- Trove™ let you easily integrate Altronix power/accessories with access controllers from the industry's leading manufacturers: AMAG, BOSCH, CDVI, DMP, HID/VERTX, HONEYWELL, KANTECH, KEYSCAN,

MERCURY, LENEL, PAXTON, PDK, SALTO, SIELOX, SOFTWARE HOUSE, ZK-TECO...and more.

• Removable backplanes allow you to configure and test prior to on-site installation.
• Simplifies board layout and wire management, reducing installation time and costs.
• Convenient knockout configuration.
• Accommodates stand-by batteries.
• Includes cam lock, tamper switch and mounting hardware.

Pre-assembled kits with Altronix power/accessories are available.

TROVE1 Enclosure Dimensions: 18"H x 14.5"W x 6.25"D Backplane Dimensions: 16.625"H x 12.5"W x 0.5"D

TROVE2 Enclosure Dimensions: 27.25"H x 21.5"W x 6.5"D Backplane Dimensions: 25.375"H x 19.375"W x 0.5"D

TROVE3 Enclosure Dimensions: 36.12"H x 30.125"W x 7.06"D

Backplane Dimensions: 34.0"H x 28.0"W x 0.5"D

Easily integrates Altronix power/accessories with a host of access control brands – saving valuable rack space!

Rack Mount Trove Solution

The Altronix Trove Rack Mount Series accommodates access controllers from leading manufacturers expanding versatility beyond wall-mount configurations. These new additions simplify board layout and wire management, while reducing installation time and labor costs.

Trove Model	Description	Typical System	Accommodates the following Altronix power/accessories	Accommodates the following Boards
TROVE1AL1R		Up to 16-Doors		Designed for Altronix power/accessories only
TROVE1BL1R		N/A	eFlow4NB, eFlow6NB,	Any Manufacturers Boards/Equipment (blank backplane allows option to drill as needed)
TROVE1HW1R		Up to 8-Doors ACM ACM Up to ACM S-Doors MC	ACM4(CB),	eFlow104NB, ACM4(CB), ACM8(CB), ACMS8(CB), LINQ8PD(CB), MOM5, PD4UL(CB), PD8UL(CB),	Prowatch & Win-Pak: PRO32IC, PRO32E1PS, PRO32R2, PRO32IN, PRO32OUT, PW6K2E2PS, PW6K1IC, PW6K1IN, PW6K1OUT, PW6K1R2, PW6K1ICE, PW6K1R1E
TROVE1M1R	2U Rack + Backplane		Backplane Up to		Mercury: EP1501, EP1502, EP2500, EP4502, MR16IN, MR16OUT, MR50, MR51e, MR52 and MUX8 Lenel: LNL-1100-S3, LNL-1200-S3, LNL-1300-S3, LNL-1300e, LNL-1320-S3, LNL-X2210, LNL-X2220, LNL-X4420, LNL-8000
TROVE1SH1R	16-Doi	Up to 16-Doors	PD8UL(CB),		Software House: iStar ACM SE, iStar Pro ACM, iStar Ultra ACM, i8, r8, i8 CSI
TROVE1V1R		Up to 12-Doors		HID/VertX: V100, V200, V300, V1000 or V2000

TRIVE

Access & Power Integration

Pre-assembled Kits with Altronix Power/Accessories
Trove Rack Kit Model	Description	Typical System	Altronix Power/ Sub Assemblies (Included)	Accommodates the following Access Controllers
T1RAL3F8	2U Rack + Backplane	Up to 8-Doors	EFLOW6NB, ACMS8, VR6, PDS8	Designed for Altronix power/accessories only
T1RAL33F16	& Power/Sub-assemblies	Up to 16-Doors	2-EFLOW6NB, 2-ACMS8	Designed for Altronix power/accessories only
Honeywell Pr	oWatch / WinPak Kit
T1RHW3F4	2U Rack + Backplane & Power/Sub-assemblies	Up to 4-Doors	EFLOW6NB, ACM4, VR6, PDS8	Prowatch & Win-Pak: Pro32IC, Pro32E1PS, Pro32R2, Pro32IN, Pro32OUT, Pw6K2E2PS, Pw6K1IC, Pw6K1IN, Pw6K1OUT, Pw6K1R2, Pw6K1ICE, Pw6K1R1E
Mercury / Ler	nel Kit
T1RM3F4	2U Rack + Backplane & Power/Sub-assemblies	Up to 4-Doors	EFLOW6NB, ACM4, VR6, PDS8	Mercury: EP1501, EP1502, EP2500, EP4502, MR16IN, MR160UT, MR50, MR51e, MR52 and MUX8 Lenel: LNL-1100-S3, LNL-1200-S3, LNL-1300-S3, LNL-1300e, LNL-1320-S3, LNL-X2210, LNL-X2220, LNL-X4420, LNL-8000
Software House Kit
T1RSH3F8	2U Rack + Backplane & Power/Sub-assemblies	Up to 8-Doors	EFLOW6NB, ACMS8, VR6	iStar ACM SE, iStar Pro ACM, iStar Ultra ACM, i8, r8, i8 CSI
HID / VertX Kit
T1RV3F4	2U Rack + Backplane & Power/Sub-assemblies	Up to 4-Doors	EFLOW6NB, ACM4, VR6, PDS8	V100, V200, V300, V1000 or V2000

PTC versions are available - add the suffix "D" to the model number (ie. T1RM3F4D).

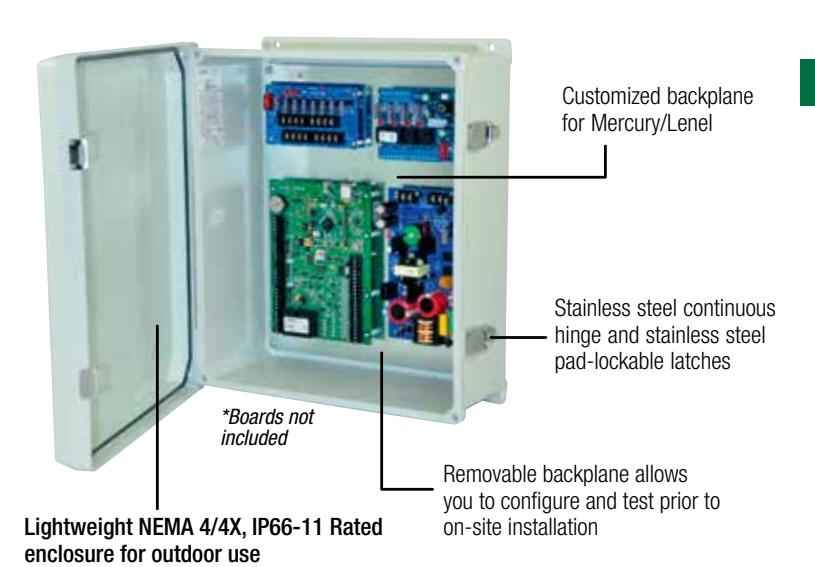

Outdoor access solution ideal for vehicle/pedestrian gate access

Outdoor Enclosure + Backplane

Trove1M1WP

• Accommodates the following Mercury/Lenel boards with Altronix power/accessories:
• Mercury: EP1501, EP1502, EP2500, EP4502, MR16IN, MR16OUT, MR50, MR51e, MR52, MUX8
• Lenel: LNL-1100, LNL1200, LNL-1300, LNL-1300e, LNL-1320, LNL-2210, LNL-2220, LNL-4420, LNL-8000
• Dimensions: 17.53" x 15.3" x 6.67"

PMK2

• Altronix pole mount kit

WM5

• Magnetic cable tie mounts for easy wire management, Pack of 5 (WM25 - Pack of 25, WM100 - Pack of 100)

SECURITY · FIRE · ACCESS · VIDEO · NETWORKING

More than just power.™

Designed & Manufactured in the U.S.A. Backed by a Lifetime Warranty

altronix.com / 718.567.8181
