ALARM LOCK
345 Bayview Avenue, Amityville, New York, U.S.A. 11701 For Sales and Repairs 1-800-ALA-LOCK • For Technical Service 1-800-645-9440 Fax: 631-789-3383 • info@alarmlock.com
Note: Technical Service is for security professionals only
ALARM LOCK Tech Support
Date: Monday, July 21, 2014
Subject: Alarm Lock Privacy Function Wiring.
Models: Alarm Lock DL4100, PDL4100

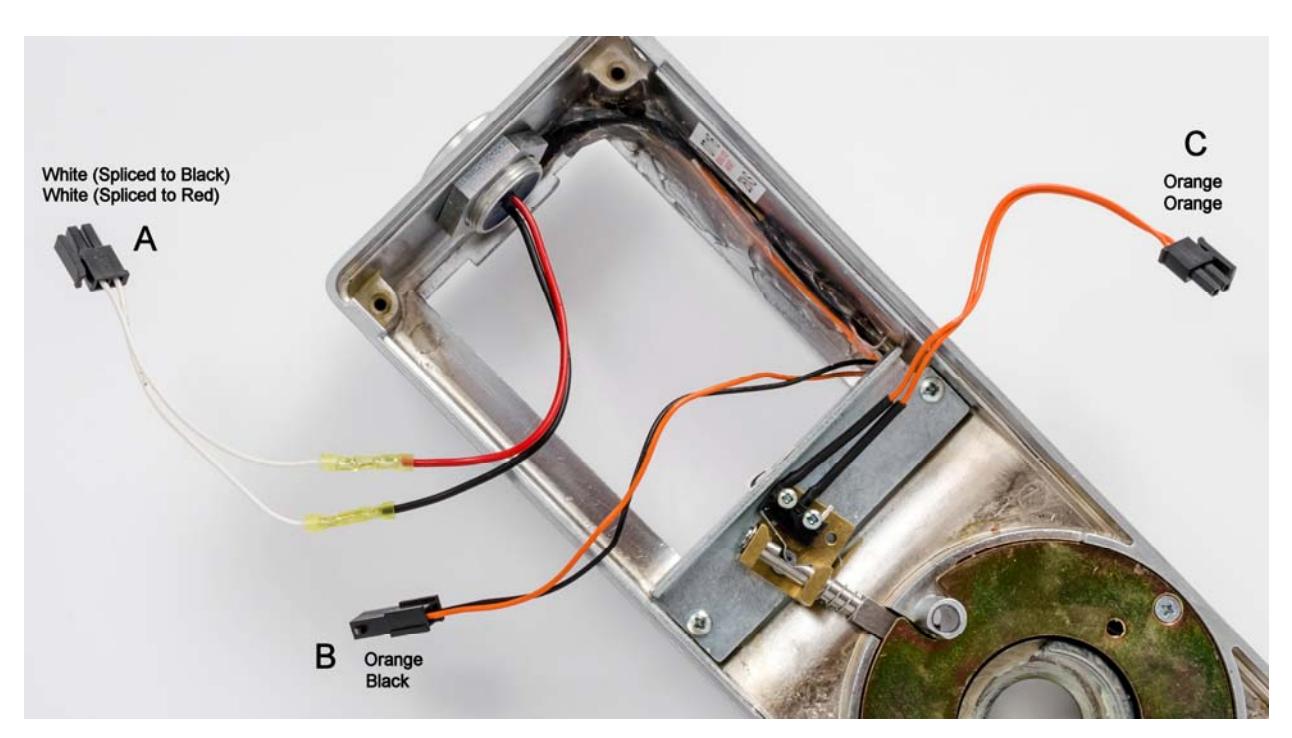

| Battery Side (Shown Below) | Keypad Side (Not Shown) |
|---|---|
| A White/White wires | To White/White labeled "REMOTE RELEASE" |
| B Orange/Black wires | To Orange/Black wires |
| C Orange/Orange wires | To Orange/Orange wires |
ALARM LOCK
345 Bayview Avenue, Amityville, New York, U.S.A. 11701 For Sales and Repairs 1-800-ALA-LOCK • For Technical Service 1-800-645-9440 Fax: 631-789-3383 • info@alarmlock.com
Note: Technical Service is for security professionals only
Another unique feature of the Alarm Lock DL4100 and PDL4100 is the inclusion of two 4" x 4" peel and stick signs shown below. These signs are intended to be applied to the surface of the door in close proximity to the lockset.
OUTSIDE INSIDE
Included Documentation:
- DL4100 / DL4500 Series Programming Instructions (WI1194)
- Installation Template (WI838)
- Exploded View / Parts List (WI1161)
- How to Remove Housing from Spindle Instructions (WI1871)
- DL/PDL General Installation Instructions (WI949)
- DL4100 "Privacy Terminated on Exit Only" Addendum (WI1378)
- DL/PDL Internal Relay "NOT EQUIPPED" Addendum (WI1958)
- "Before Using the Lock" Important (WI1133)
- Wallet Size "Quick Programming" Reference (OI225)
- Dielectric Grease Instructions (WI1822)
- Warranty Registration (OI221)
- New Feature: Group 3 "One Time Access" Addendum (WI1266)
