ADDENDUM DL2700LD BATTERY CONNECTIONS

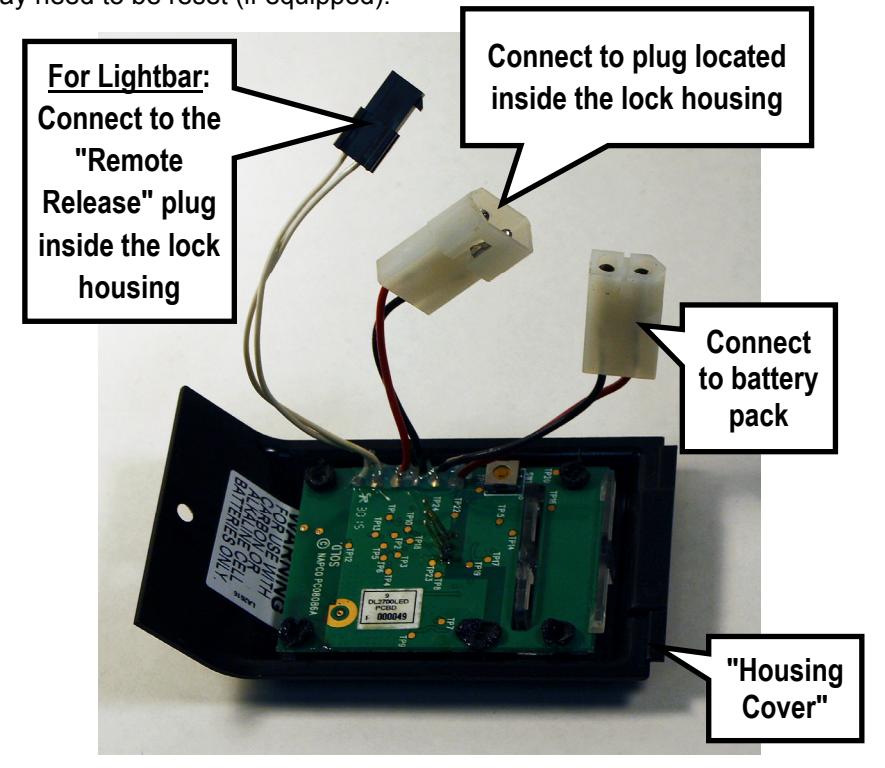

The inside lock housing cover, pictured below, has three connectors:

Connect the battery pack plug to its mate located on the housing cover.
Connect the other housing cover plug to its mate located inside the lock housing.
Connect the Lightbar black plug on the housing cover shown below to its mate inside the lock housing ("two white wires" connected to "two white wires")

Note: The lock may beep upon supplying power, and the internal clock may need to be reset (if equipped).
