Alarm Lock Trilogy Proximity Mortise Locks, PDL3500 Specification Sheet

AUDIT TRAIL ACCESS OPTIONS

AL-IR1 Infrared Printer:

Prints the event log and user code with hand-held convenience.

DL-WINDOWS

AL-DTMII Data Transfer Module:

Module used to transfer program data from the PC to the lock and receive Audit Trail from the lock. Can transfer program data for up to 48 locks.

DL-WINDOWS SOFTWARE: Version 2.92 or higher

Windows-format software used to create programming, manager users

and schedules, receive Audit Trail from lock, program the lock using PC or laptop, program the AL-DTMII to program multiple locks and configure the AL-DTMII to transfer data.

/26 = US26 Polished Chrome /26D= US26D Satin Chrome /5 = US5 Antique Brass /10B= Duronodic European Model Suffix Not Used For U.S. Models

*Note: Standard Lever for U.S. Models is Straight Lever. Standard Lever for European Models is Curved Tubular Lever

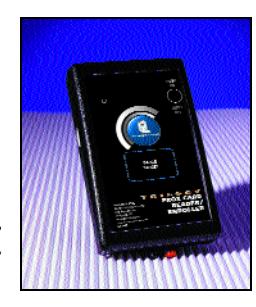

AL-PRE: Prox Card Reader/Enroller Enables instant, automatic enrollment of Prox Cards into DL-Windows

(just tap the prox Card/fob device to the unit's faceplate to enroll)! Supports all Prox Cards and Prox Keyfobs (supported by PDL5000) Simultaneous card enrollment, downloading or lock polling – all on just one serial port. Replaces AL-PCI. 9V Battery operation (6 mos. to 1 year, typical)

Left-hand (LH) Use Trilogy PDL3500L

OUTSIDE

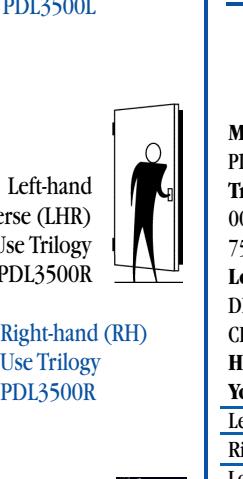

Left-hand Reverse (LHR) Use Trilogy PDL3500R

Use Trilogy PDL3500R

OUTSIDE

Right-hand Reverse (RHR) Use Trilogy PDL3500L

PDL 35 00 DB R /26D EX Model & Series: PDL35 = Trilogy Prox Mortise Series Finish: /3 = US3 Polished Brass

MORTISE LOCK ORDERING INFORMATION

Trim: 00 = Standard Lever

75 = Regal Curved Lever (U.S. Option Only) Lock Body:

DB = Dead Bolt CR = Class Room (U.S. Only)

Handing: Your Door - Order - Left Handed L Right Handed R Left Hand Reverse Bevel R Right Hand Reverse Bevel L

(Note: Trim is non-handed. Lock body is field reversible.)

U ® L

ALARM LOCK SYSTEMS, Inc. • A Division of the NAPCO Security Group 345 Bayview Avenue • Amityville, NY • 11701 • USA 1-800-ALA-LOCK • 631-789-4871 • Fax: 631-789-3383 • www.alarmlock.com

ALA168

PDL3500 Series

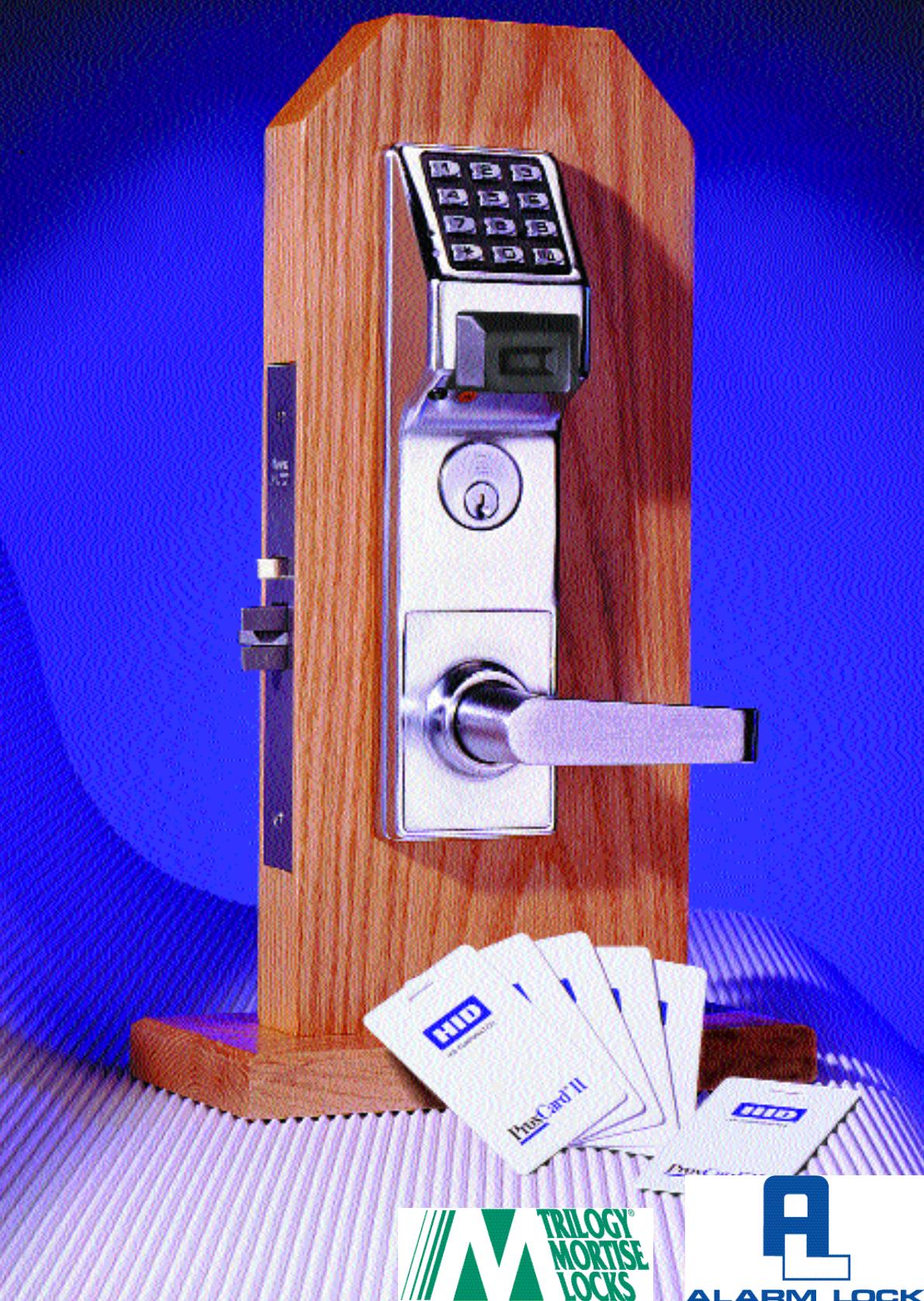

Feature-Rich, Standalone. Proximity/Digital Locks With Audit Trail Feature
