Trilogy T2

#1 Best-Selling Electronic Access Lock in the USA

DL2700 Series Grade 1

Retrofit Any Knobset

Trilogy® T2 standalone digital cylindrical keyless door lock

DL2700 SERIES

• #1 Best-selling access lock in its class, the keyless electronic door lock – now with more codes & power!
• Up to 100 3-5 digit codes, fi ngertip programmable: 1 master code, 10 managers, 90 basic users, 3 one-time service codes

• Standalone keyless access installed in under an hour; easily retrofi ts standard knobsets
• Long life 5AA battery operated; 200,000 cycles, typ.
• Low battery alert; mechanical key override; non-handed
• Choice of 7 architectural fi nishes including standard US26D Satin chrome, US3 polished brass, and US5 Antique Brass
• Also available with 5 different interchangeable core preps
• Outdoor version of above, -31˚ to +151˚F, weatherproof models

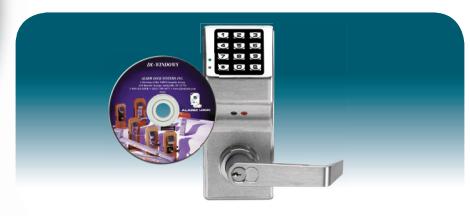

Audit Trail

Trilogy economical audit trail cylindrical security lock

DL2800

• 1000 event audit trail log, time-stamped by day, date, time and user
• 150 schedules: automatic lock/unlock,etc.
• 200 user codes: Master, manager, supervisor and basic users. Also one-time service code (3-6 digits)
• Weatherproof -31˚ to +151˚F
• 5AA Battery operated; 80,000 cycles, typ.
• Also, DL3000 Advanced version, with 300 user codes & 1600 event audit trail

All Trilogys feature no fee/license FREE Windows-based software

Restrooms/Classrooms

Trilogy Privacy/Lock Down Pushbutton –for restrooms, on-call rooms, fi le rooms, fi tting rooms, classrooms

DL4100 CYLINDRICAL PRIVACY LOCK

• Privacy Pushbutton on inside door to temporarily lock-out keypad codes
• Occupied and multi-status LED indicator, fl ashes when time-settable privacy/locked session is on
• Self-stick instructional signage, supplied (bilingual Eng./Span.)
• 2000 PIN codes; 500 scheduled events; 40,000 audit trail
• Keypad or PC programming/reporting
• Weatherproof -31˚ to +151˚F
• 5AA battery operated; 60,000 cycles, typ.
• Mortise lock version, 4500 Series

ID Card Use

Trilogy Prox Lock With Audit Trail

PDL3000: TRILOGY CYLINDRICAL PROX LOCK WITH AUDIT TRAIL

• 2000 user codes (3-6 digits) and/or accepts HID® prox cards and keyfobs
• Multilevel security Master; manager; supervisor; basic users
• Easy Tap & Add batch ID card enrollment mode allows many cards to be quickly added without PC –also- downloadable from PC or enroller tool
• 40,000 event audit trail log
• 150 scheduled events
• PC programming/reporting
• Quick passage mode
• Weatherproof -31˚ to +151˚F
• 5AA Battery operated; 60,000 cycles, typ.

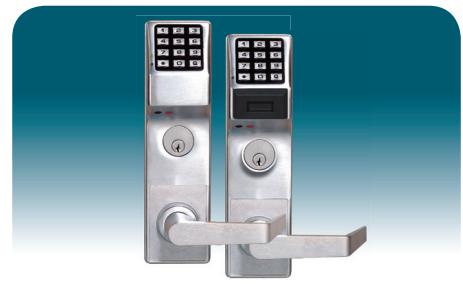

High Security Pin/Prox ID

Trilogy high security mortise locks and keyless gate locks with and without prox

DL3500 SERIES TRILOGY MORTISE PIN LOCKS

• 300 User codes: Master, manager, supervisor & basic users for keyless gate locks
• Fingertip or Windows PC-programmable
• Weatherproof -31˚ to +151˚F
• Real time clock enables up to 500 scheduled events and holiday schedules
• 40,000 Event audit trail provides a printed time/date- stamped log of all electronic activity
• Long-life 5AA batteries for 80,000 cycles, typ. and low-battery alert
• 1 3/8" (3.5 cm) mortise cylinder supplied
• 40,000 event audit trail log
• 500 scheduled events, e.g., lock or unlock
• PC programming/reporting
• Quick passage mode
• Program data transferred to lock via PC or module
• Classroom latch, available in right hand or left handed lock model

PDL3500 SERIES TRILOGY MORTISE PIN/PROX ID LOCKS

Built in HID prox reader, similar to above, but with:

• 2000 user codes (3-6 digits) and/or HID prox cards/fobs
• Multilevel security Master; manager; supervisor; basic users
• Easy Tap & Add batch prox ID card enrollment mode allows many cards to be quickly added without PC –also– downloadable from PC or prox enroller tool
• PC programming/reporting
• Quick passage mode
• Program data transferred to lock via PC or module

• 5AA battery operated; 75,000 cycles, typ.
• Classroom latch, available in right hand or left handed lock model

Glass/Aluminum Doors

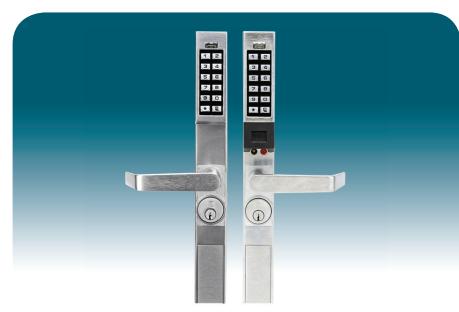

Trilogy Narrow Stile Pushbutton aluminum door trim latch locks for PIN or Prox ID card access

DL1200, DL1300, PDL1300

• DL1200 supports 100 3-5 digit PIN user codes , fi ngertip programmable
• DL1300 supports 2000 users, PC programming/reporting and features 40,000 event audit trail by user and 500 event schedule/real time clock (e.g., lock/unlock by time)
• PDL1300 Prox-reader model of above, supports 2000 Prox ID cards and/or PIN users. Version of 1YND1 with built-in HID Prox reader and tap-add enroller function for ID inputting at the lock.
• Aluminum door retrofi t outside trim for Adams Rite® 1850, 1950, 4710, 4070, 4730, 4900 Series and MS1850S and MS1950S Series latch locks
• Add keyless convenience to mechanical latch locks from Trilogy's all-metal, vandal-resistant 12-button keypad and/ or automatic timed-scheduled locking/ unlocking, PC programming & audit trail with P/DL1300 Series
• Weatherproof -31˚ to +151˚F
• Long-life, battery-operated for 100,000 and 80,000 cycles respectively, typ. on 2 lithium 3V batteries, supplied; low battery alert
• Key override mortise cylinder, 1-1/4" supplied. (Supports 1-1/8", 1-1/4" and 1-3/8"). Backsets 31/32",1-1/8" and 1-1/2" ; Stile thickness 1-3/4"
• Non-handed; fully fi eld-reversible
• US26D satin chrome or US10B Duronodic

Exit Doors

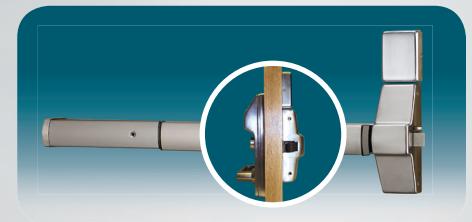

TrilogyExit retrofi ts existing exit bars and saves manpower on guard tours

Upgrade existing panic bars with Trilogy® Exit pushbutton PIN code or Prox ID card access. Get Trilogy convenience and set un/lock schedules to save the manpower required to physically dog-down doors, plus get event logs of use. Use with panic exit devices from most major manufacturers.

• ETDL Series support 2000 PIN code users, Yale, Sargent versions, respectively
• ETPDL Series Prox-reader model of above, supports 2000 Prox ID cards and/ or PIN users. Built-in HID Prox reader and tap-add enroller at the lock. Yale, Sargent versions, respectively
• Clutch mechanism ensures long life and durability
• Fingertip and/or Windows ® PC Programmable
• Real Time Clock for up to 40,000 Event Time/Date-Stamped Audit Trail
• Up to 500 Lock/Unlock Schedules (with Time Zone Support)
• Non-Handed; Fully Field Reversible
• Battery operated; uses 5 AA batteries
• Rim cylinder supplied; Choice of 7 fi nishes
• Retrofi t Von Duprin ® 99, Corbin ® ED5000 & Yale ® , Dorma ® 9300, Arrow ® 3800, Sargent ® , Precision ® 1100 & Cal Royal ® 9800

Glass Pushbar Doors

Narrow Stile TrilogyExit keyfree convenience and greater security for panic exit devices on aluminum frame glass doors

Trilogy Narrow Stile Exit Trim retrofi ts Arrow®, DCI®, Von Duprin® and Dorma® panic exit bars - ideal for storefronts!

• DL1200ET supports 100 3-5 digit PIN user codes, all-metal keypad, programmable
• DL/PDL1300ET 2000 PINs or Prox IDs (PDL) plus PC programming, auto-scheduling lock/unlock & audit trail
• Weatherproof -31˚ to +151˚F.
• 2 lithium 3V long-life, batteries for 100,000 & 80,000 cycles respectively, typ.

Access Keypads

Trilogy Matching Weatherproof PIN/Prox. ID Access Keypads

DK3000 & PDK3000 TRILOGY PIN & PIN/PROX ID KEYPADS

12/24VAC/DC Wall mount or single gang box. Ideal for elevator banks, gates and for use with electric strikes or mag locks. Match fi t and function with Trilogy Locks.

• 2000 users (PIN code or prox ID on PDL model)
• 2 High-Current Rated 8A Relays for entry, alarm zone shunting or lock release by 500 event real-time schedule
• Keypad or PC programmable
• 40,000 Event audit trail print to PC
• Timed Egress Input Selectable door open times 5, 10 or 15 seconds
• Tamper supervised (reportable to alarm system)
• Remote release feature; request-to-exit input
• Weatherproof -31˚ to 151˚F

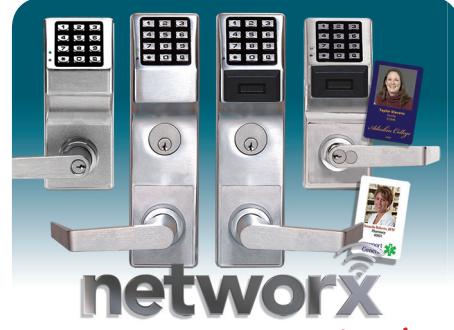

Communicate Wirelessly

Trilogy Networx™ communicate wirelessly via Ethernet or 802.11

• Wireless networking eliminates door-todoor programming and audit trail queries by communicating wirelessly via ethernet or 802.11
• Systemwide global lockdown/unlock in under 10 seconds from any lock or the network's PC
• Unsurpassed battery-life, exceeding 5 years
• Up to 2000 locks and a PC communicate wirelessly, AES-encrypted thru 900MHz bidirectional gateways
• No wiring; No repeaters; No hardwiring to server; NO extra power supplies, No access panels
• Remote Management via VPN-connection
• Networx locks share one common database with original standalone Trilogy locks and can operate as standalones until networking is done
• 5,000 3-6 digit PIN users and/or HID prox ID cards (PD-models), 500 scheduled events (incldg program uploads) and 35,000 event log
• Models for all doors: Cylindrical (P/ DL6100 Series); Mortise (P/DL6500 Series) locks & retrofi t exit trim models for most brands: Von Duprin, Corbin, Yale, Dorma, Arrow, Sargent (ETDLN/PDLN)

Trilogy: Keyless access locks trusted by more leading retailers, fi rms, hospitals, schools & airports

Amityville, NY 11701 • USA • 1-800-ALA-LOCK 631-789-4871 • Fax: 631-789-3383 • www.alarmlock.com
