Alarm Lock PG10 Installation Template

IMPORTANT

Templates must be printed without size modifications and verified for dimensional accuracy.

• • Before printing, select the printing options necessary to ensure that copies are produced without size adjustments.
• • After printing, measure the dimensions indicated on the template to ensure correct scale.

ONLY

FOR SINGLE OUTSWINGING DOORS RIGHT OR LEFT HAND - ALSO TOP MCUNT

ONLY

ARM LOCK CORPORATION

333 BAYVIEW AVE. AMITYVILLE, N. Y. 11701

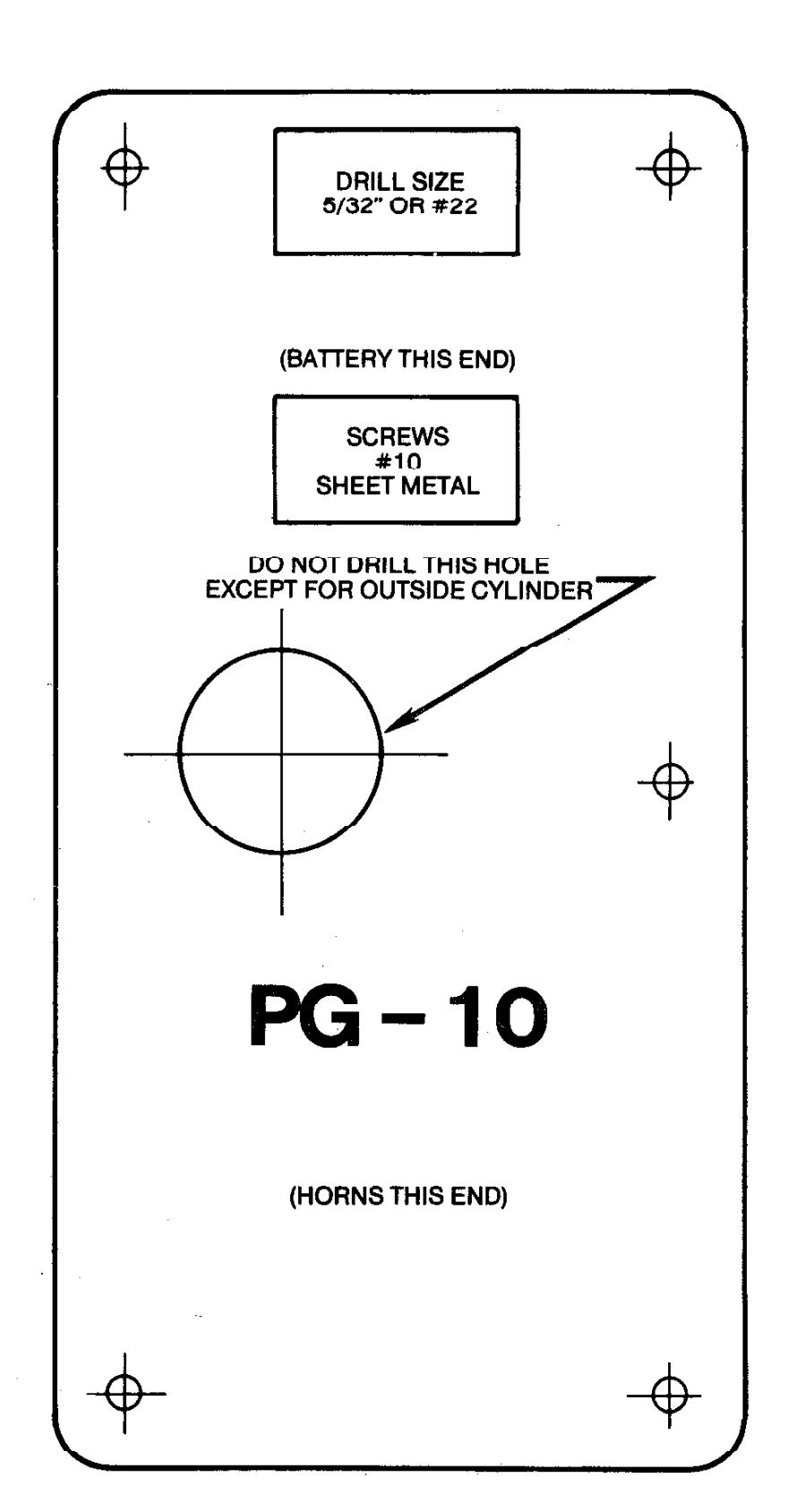

DRII I SI7F 5/32" OR #22 (BATTERY THIS END) SCREWS #10 SHEET METAL DO NOT DRILL THIS HOLE EXCEPT FOR OUTSIDE CYLINDER PG - 10 (HORNS THIS END)

INSTALLATION TEMPLATE

FOR PAIRS OF OUTSWINGING DOORS FOR PAIRS OF INSWINGING DOORS FOR SINGLE INSWINGING DOORS RIGHT OR LEFT HAND

ONLY
