Networx ™
Narrow Stile Access Locks
MOUNTING & INSTALLATION INSTRUCTIONS
345 Bayview Avenue, Amityville, New York 11701 For Sales and Repairs 1-800-ALA-LOCK For Technical Service 1-800-645-9440 or visit us at http://tech.napcosecurity.com/ (Note: Technical Service is for security professionals only) Publicly traded on NASDAQ Symbol: NSSC
© ALARM LOCK 2019 WI2357LF 6/19
GENERAL DESCRIPTION
The DL1325NW, PDL1325NW, DL1350NW and PDL1350NW are keypad programmable or wirelessly programmable (through DL-Windows software) narrow stile entry trim for Adams Rite® 1850, 1950, 4070, MS1850S, MS1950S, MS1950, MS1850S-050 and MS1950-050 series deadbolts for narrow stile aluminum doors*.
The DL13XXNW and PDL13XXNW will retract the existing Adams Rite® deadbolt when an access code is entered (or a credential is presented) and the turnpiece is turned. All locks are equipped with a mechanical metal key override. For programming information, visit our Technical Library at tech.napcosecurity.com and download programming instructions for the PDL13XXNW (WI2258) and DL13XXNW (WI2264).
MECHANICAL FEATURES
The overall enclosure housing is 15-5/16" inches high, 1-5/8" inches deep and 1-¾" inches wide. The trim is through-bolted to the stile of the door (using four #10 screws) and are secured on the interior side of the door. Supported stile thickness is 1- ¾".
- DL13XXNW and PDL13XXNW models support 5000 users and includes 36,000-event audit trail and 500 event schedule. Keypad or PC programmable
- Aluminum door retrofit outside trim for Adams Rite® 1850, 1950, 4710, 4070, MS1850S and MS1950S Series locks
- All-metal, vandal-resistant 12-button keypad supports 3-6 digit PIN codes, and multilevel user hierarchy (master, manager, supervisor and basic users)
- Keypad or PC programmable (see model information). Quickly and easily add or delete users and enter "passage mode", service codes, group lock-out & groupenable
- PDL13XXNW series locks support proximity ID cards, keyfobs and proximity tags with its integral proximity reader (high security applications can require use of both PIN code plus proximity credential for access)
- Real time clock and PC programmable automatic lock/ unlock scheduling for 500 events
- Wide weatherproof operating range from -31ºF to 151ºF (-35ºC to 66ºC)
- Provides 50,000 operations using 4AA batteries; includes audible and visual low battery alert
- Non-handed; fully field-reversible
- Mechanical key override; interchangeable cores supported (Corbin/Russwin, Yale, Schlage, Medeco)
- Mortise Cylinder, 1-¼" supplied (supports 1-1/8", 1-¼", 1-3/8" and 1-½"
- Backsets 31/32",1-1/8" and 1-½"; stile thickness 1-¾"
MOUNTING AND INSTALLATION

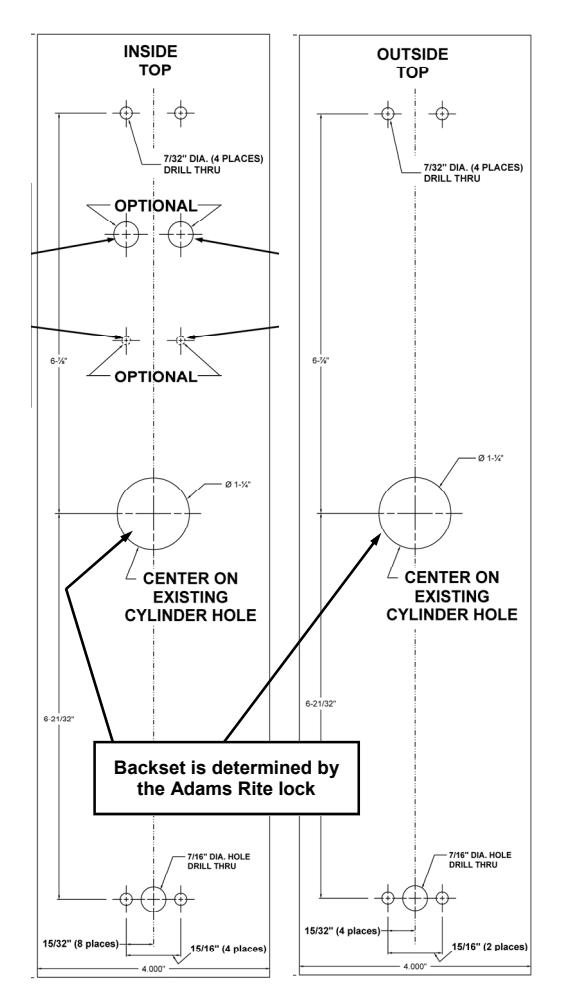

For factory prepped doors , use dimensions shown. Dimensions are referenced from center of 1-¼" cylinder hole. The Adams Rite lock determines the backset.
When mounting the new Adams Rite locks:
- Do not install the outside cylinder -- this trim replaces it;
- Do not install the faceplate (access to the cylinder set screw in the lock is required during mounting and installation).
Mechanical Override Cylinder Cams
The DL13XXNW and PDL13XXNW trim requires the use of an oval Alarm Lock cam (supplied with cylinder). For other manufacturers, please see the charts on the next page.
TABLE OF CONTENTS
| GENERAL DESCRIPTION 1 | |
|---|---|
| MECHANICAL FEATURES 1 | |
| MOUNTING AND INSTALLATION 2 | |
| INSTALL CYLINDER 3 | |
| PREPARE DOOR FOR "THROUGH-BOLTING" 3 | |
| INSTALL INTERFACE CYLINDER 4 | |
| CONNECT BATTERIES 4 | |
| INSTALL LOCK 5 | |
| MECHANICAL KEY OVERRIDE 6 | |
| ALARM LOCK LIMITED WARRANTY 8 |
| Cams for Standard Mortise Cylinders | ||
|---|---|---|
| Corbin-Russwin | HW1344 | |
| Marks | HW1346 | |
| Arrow | HW1348 | |
| Sargent | HW1348 | |
| Schlage | HW1349 | |
| Cams for IC Mortise Cylinders | ||
|---|---|---|
| Best IC Housing with Cam Attached |
S6169-10B*
S6169-26D* |
|
| Best | HW1343 | |
| Corbin-Russwin | HW1345 | |
| Medeco | HW1347 | |
| Schlage | HW1350 | |
| Yale | HW1351 | |
| Cylinder Length | Collar P/N |
|---|---|
| 1-⅜ | HW1331 |
| 1-½ | HW1342 |
*All other IC cylinder preps must provide their own IC housing, but order the appropriate cam from Alarm Lock.
Cylinder Collars:
The DL13XXNW and PDL13XXNW can use a 1-⅛" & 1-¼" mortise cylinder without the use of a collar (1-¼" requires two plastic spacers, supplied). For cylinders longer than 1-¼" a collar is required.
Order collars from an Alarm Lock distributor.
Template (use WI1459)
Cam for Mechanical Override Cylinder
INSTALL CYLINDER
1. Install Cylinder if not already installed at the factory. Screws A & B (see Fig. 1) are correctly set at factory. If it is difficult to screw in the cylinder, loosen the two screws near the actuator (A) one turn. If you find the cylinder is still difficult to screw in, then loosen the other screws (B) one turn. Do not loosen the screws all the way or it may be difficult to replace them properly!
Note: The trim is manufactured to use a 1-1/8" or 1-¼" Alarm Lock mortise cylinder with a HW-1302 cam. If the cylinder that will be used is longer than 1-¼", a collar must be utilized. Please see the collar information on the previous page.

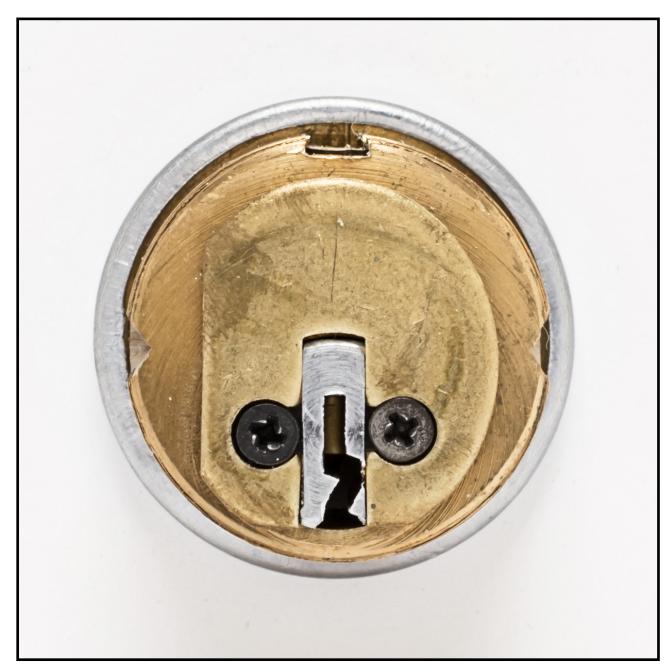

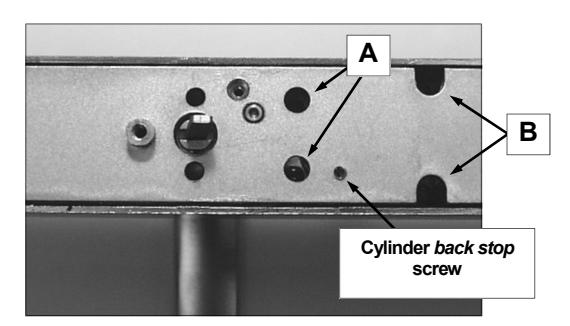

Fig. 1: Install Cylinder if not already installed at the factory
1a. Insert key half-way into the cylinder, then screw it in. See Fig. 1a. If cylinder will not seat flush, the cylinder back stop screw may require loosening. Cylinders that are longer than 1-¼" will require a collar, which will stick out from the surface when correctly installed. Please
see the cylinder information on the previous page.

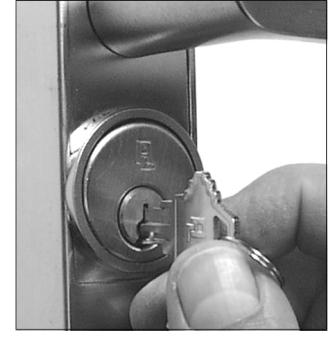

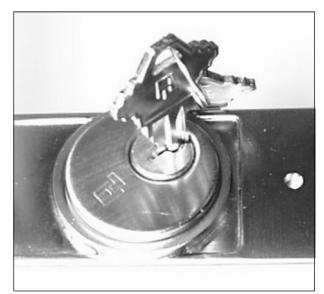

Fig. 1a: Insert key 1/2 way into cylinder and screw in
1b. After the cylinder is screwed in all the way, center the keyway toward the bottom (see Fig. 1b). If an interchangeable core cylinder is utilized, then center the interface toward the bottom. Tighten the screws that were loosened in step 1.
Fig. 1b: Center keyway toward bottom
1c. Remove the key. Use a 1/16" hex wrench to screw the cylinder back stop screw in fully. (See Fig. 1c) The key should now only rotate counterclockwise .
NOTE: To remove cylinder, reverse steps 1a-1c.

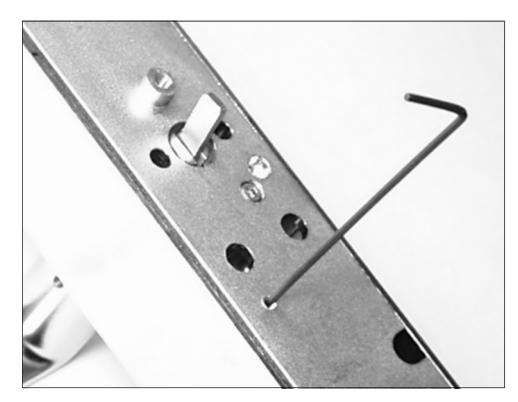

Fig. 1c: Use 1/16" hex wrench to screw in the cylinder back stop screw
PREPARE DOOR FOR "THROUGH-BOLTING"
2. Place template (WI1459) as shown. Important : Place the template on top of existing cylinder hole and parallel to the door edge.

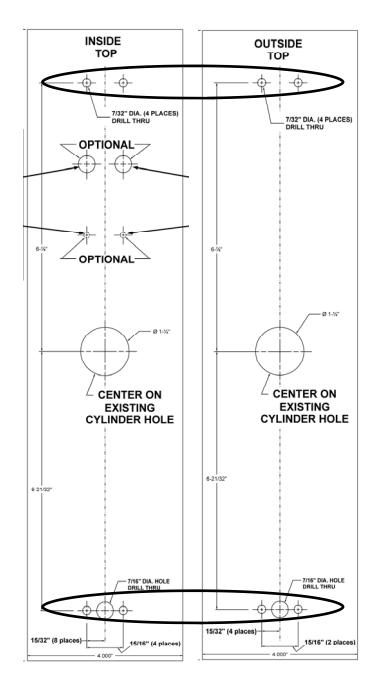

Fig. 2: Template (WI1459) through-bolt holes (circled)
-
2a. Drill
completely
through the door for through-bolting the four mounting holes and battery cover access bolt hole.
- IMPORTANT!--Drill the holes STRAIGHT THROUGH the door, or the through-bolts will not fit in the lock! THIS IS ESSENTIAL! Drill slowly and STRAIGHT through the door.
Reposition the template as often as needed until it is placed correctly.
INSTALL INTERFACE CYLINDER
Remove the existing cylinder (if present). Install the new cylinder onto rear of lock. Ensure the tailpiece at the rear of the lock enters the slot of the interface cylinder. Tighten the set screw as shown in Fig. 3 below.

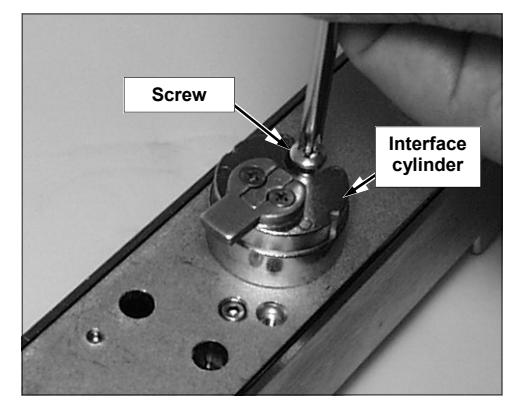

Fig. 3: Remove old interface cylinder (if present). Install the new cylinder and tighten the screw.
3a. Verify the face of the interface cylinder ("HW1824") is positioned parallel to the surface of the door.
With a straight edge flush against the surface of the door as shown in the image below, place a small ruler on the right face of the interface cylinder to measure the distance between the face of the interface cylinder and the surface of the door (the right "gap"). See Fig. 3a below.

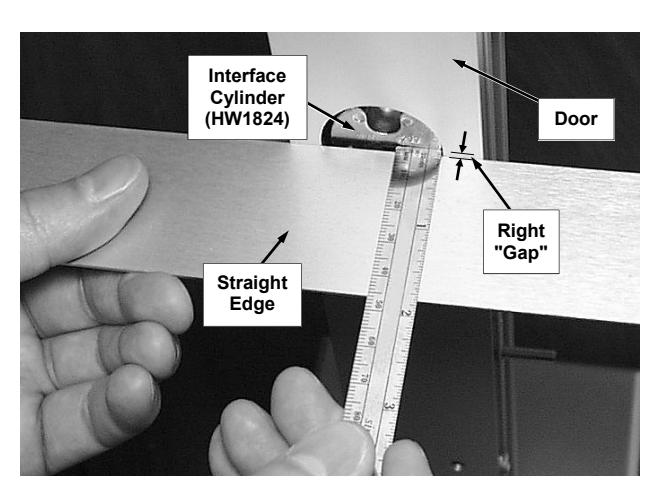

Fig. 3a: Measure right "gap": Place a small ruler against the <u>right</u> side of the interface cylinder.
3b. Measure the left "gap" with the ruler on the left face of the interface cylinder, as shown in Fig 3b.

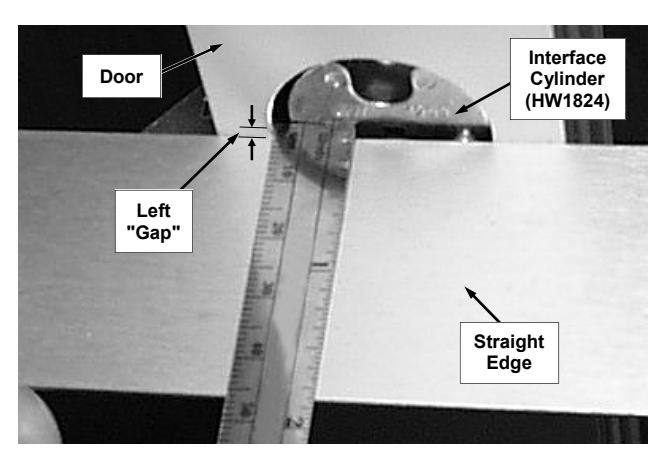

Fig. 3b: Measure left "gap": Place a small ruler against the <u>left</u> side of the interface cylinder.
The difference between the right and the left "gap" distances must not exceed 1/32".
If face of the lock body is not parallel to the surface of the door and the difference between the left and right "gap" measurements exceeds 1/32", adjust the position of the Adams Rite ® lock body until the face of the interface cylinder is parallel with the face of the door.
CONNECT BATTERIES
4. Loosen the #8-32 Phillips pan head screw located on the rear side of the base plate at the bottom of the lock (see Fig. 4). Turn counter-clockwise until the battery cover slides off the housing. Do NOT remove the screw.

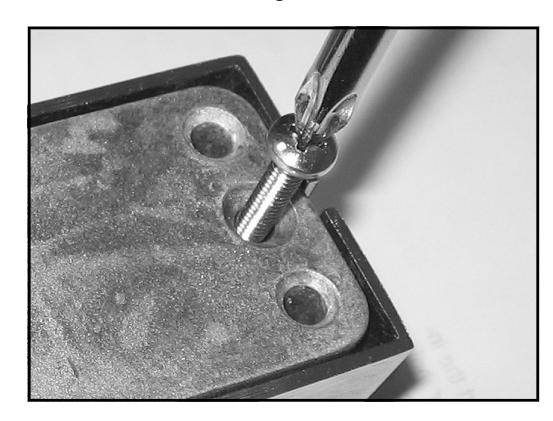

Fig. 4: The Phillips screw on the rear side locks or unlocks the battery cover. Do not remove screw .
4a. Plug in the battery connector and insert the battery pack into the battery compartment. Neatly push all wiring inside the compartment and on the side of the battery pack. Holding battery in place, slide cover back on. Secure the battery cover by tightening the #8-32 Phillips pan head screw located on the rear side of the base plate (access this screw from the 7/16" thru-hole drilled in the door). Do not over tighten the screw.

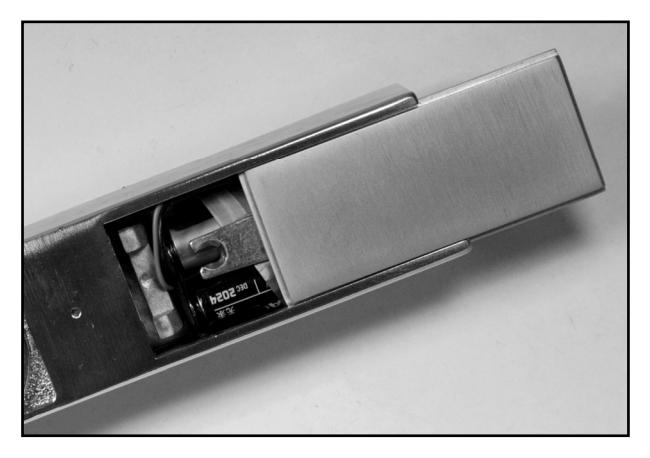

Fig. 4a: Install the battery pack: Push all wires inside the battery compartment and slide plate back on.
FOR NEW INSTALLATIONS: Refer to the programming manual (WI2258 or WI2264) for specific instructions for "First Time Startup" and "Change Factory Master Code" before connecting the battery.
The lock must be powered up as instructed (and have its factory Master Code changed) or erratic lock behavior can result.
INSTALL LOCK
Install the DL lock onto the door by aligning the four tapped mounting holes in the back of the DL lock with the four "through-bolting" holes that were drilled in the door in step two.

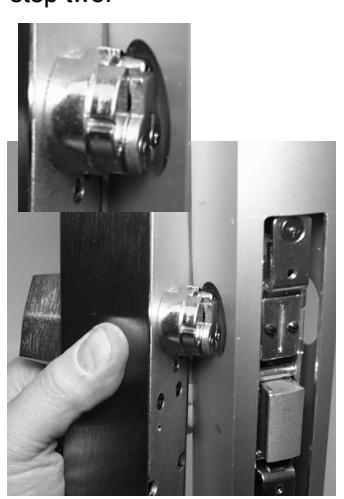

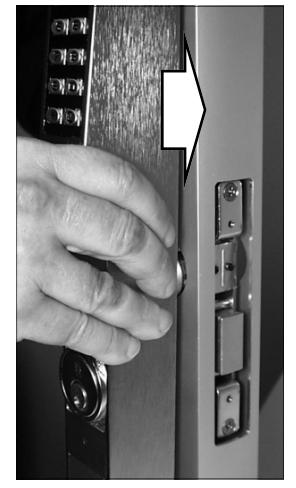

Fig. 5: Install the DL lock onto the door
5a. Secure the DL lock to the door with four throughdoor mounting screws and two door plates. Place a door plate on top of a pair of mounting holes and loosely secure lock from the inside of the door. Snug all four mounting screws before final tightening. Do not overtighten.

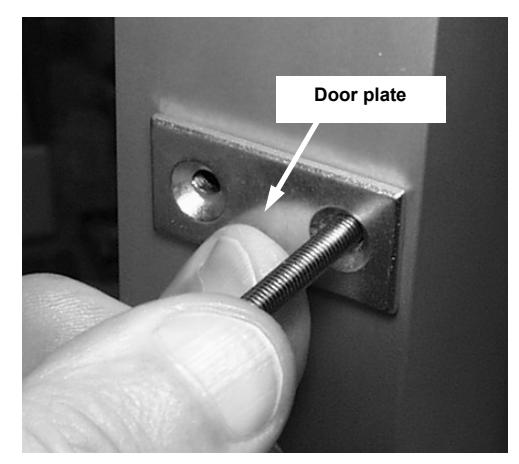

Fig. 5a: Secure lock to door -- loosely at first
5b. Cover door plates with decorative plate covers by sliding them from top to bottom on door plates.

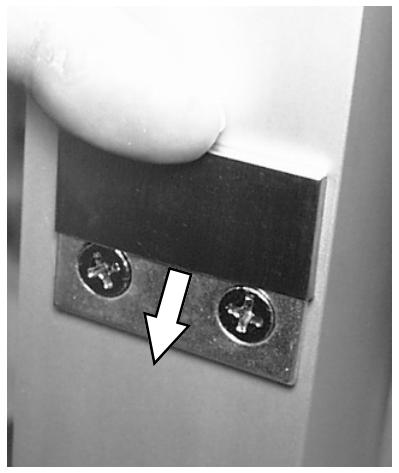

Fig. 5b: Slide down to install decorative plate covers
5c. Secure interface cylinder to lock by tightening the set screw.

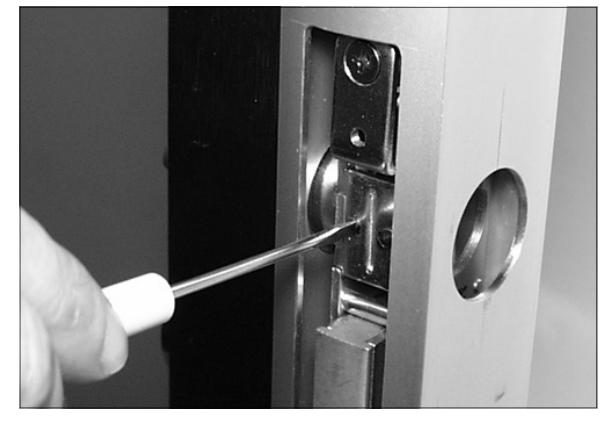

Fig. 5c: Secure interface cylinder to lock
Important! If the interface cylinder is not parallel to the door after tightening the set screw, then you must verify that the original Adams Rite<sup>®</sup> lock body was originally installed correctly (installed square to the door). Failure to ensure the interface cylinder is installed correctly could cause lock binding or improper operation of the lock mechanism.
5d. Install the deadbolt face plate.

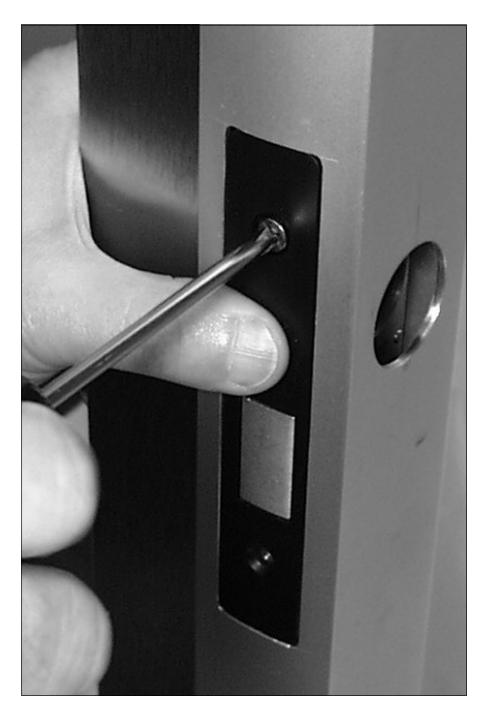

Fig. 5d: Install the deadbolt face plate
MECHANICAL KEY OVERRIDE
To unlock and enter the protected door with the mechanical key:
- Insert the key into the keyway
- Using light pressure, turn the key to the left (counterclockwise) while also turning the turnpiece until they both engage, allowing the turnpiece to unlock the lock.
Note: The turnpiece may have to be turned up to 180 degrees (to its vertical position) to enable the key to unlock the lock.

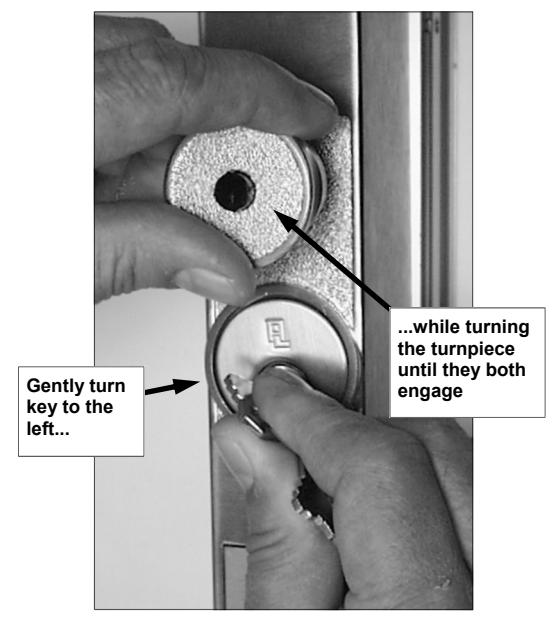

Fig. 5: Using the Mechanical Key Override
