Alarm Lock Networx ET-PDLN Marks Model 99

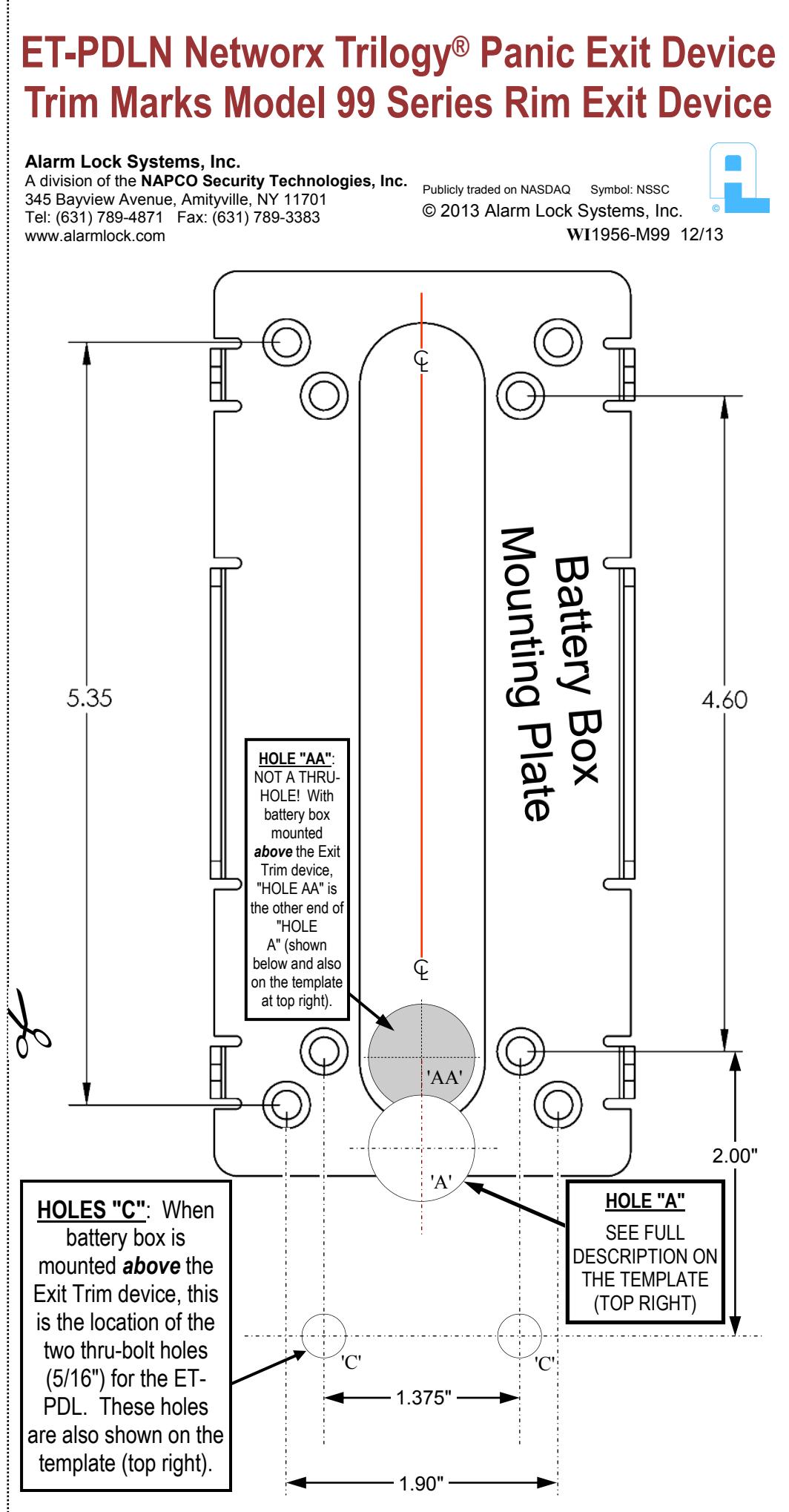

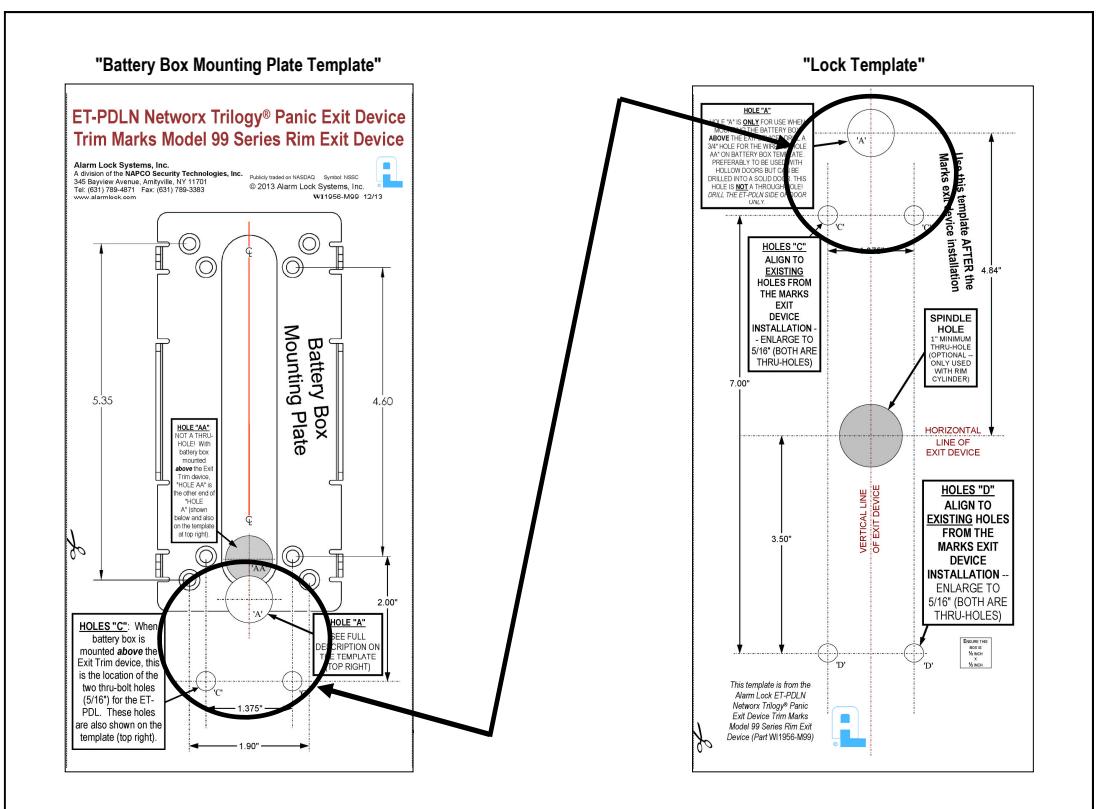

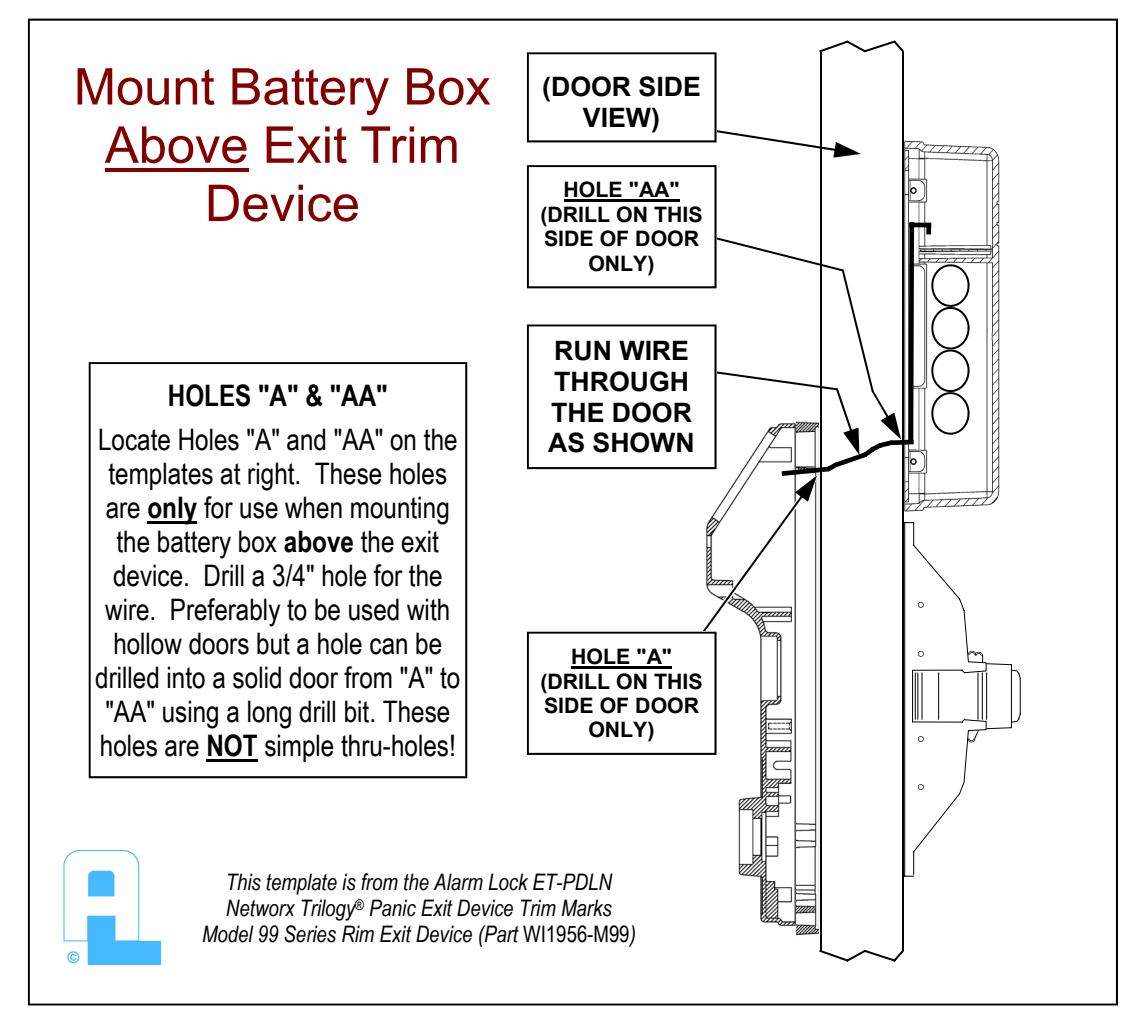

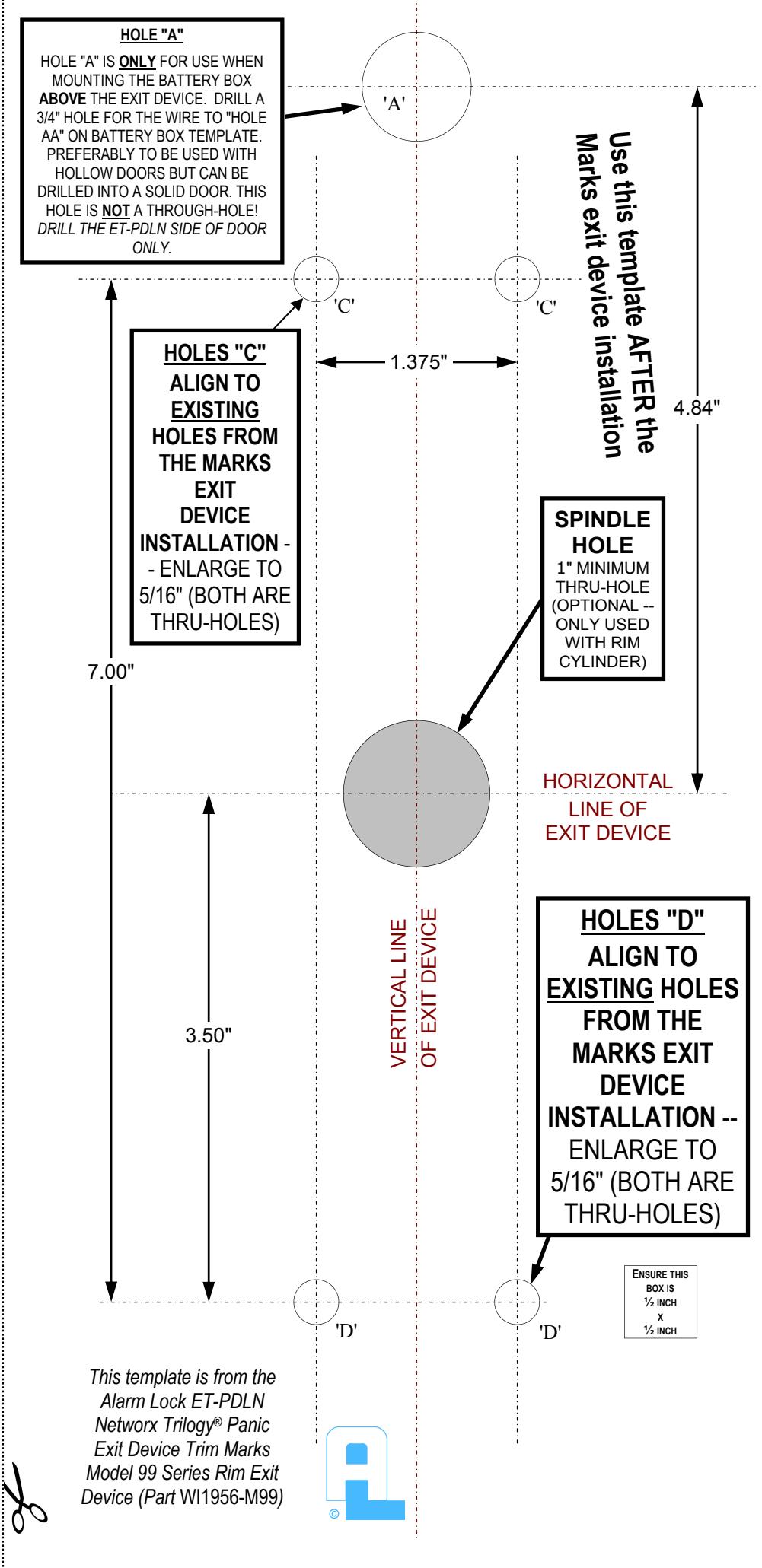

Note: There are two templates on this sheet. To show the relationship between the location of the lock body and the Battery Box, the holes "A" and "C" (located at the bottom of the "Battery Box Mounting Plate Template"), are also shown at the top of the "Lock Template". See WI1858-M99 for step-by-step instructions.
