Alarm Lock Models 250-260-700-710–Mounting Template

IMPORTANT

Templates must be printed without size modifications and verified for dimensional accuracy.

• • Before printing, select the printing options necessary to ensure that copies are produced without size adjustments.
• • After printing, measure the dimensions indicated on the template to ensure correct scale.

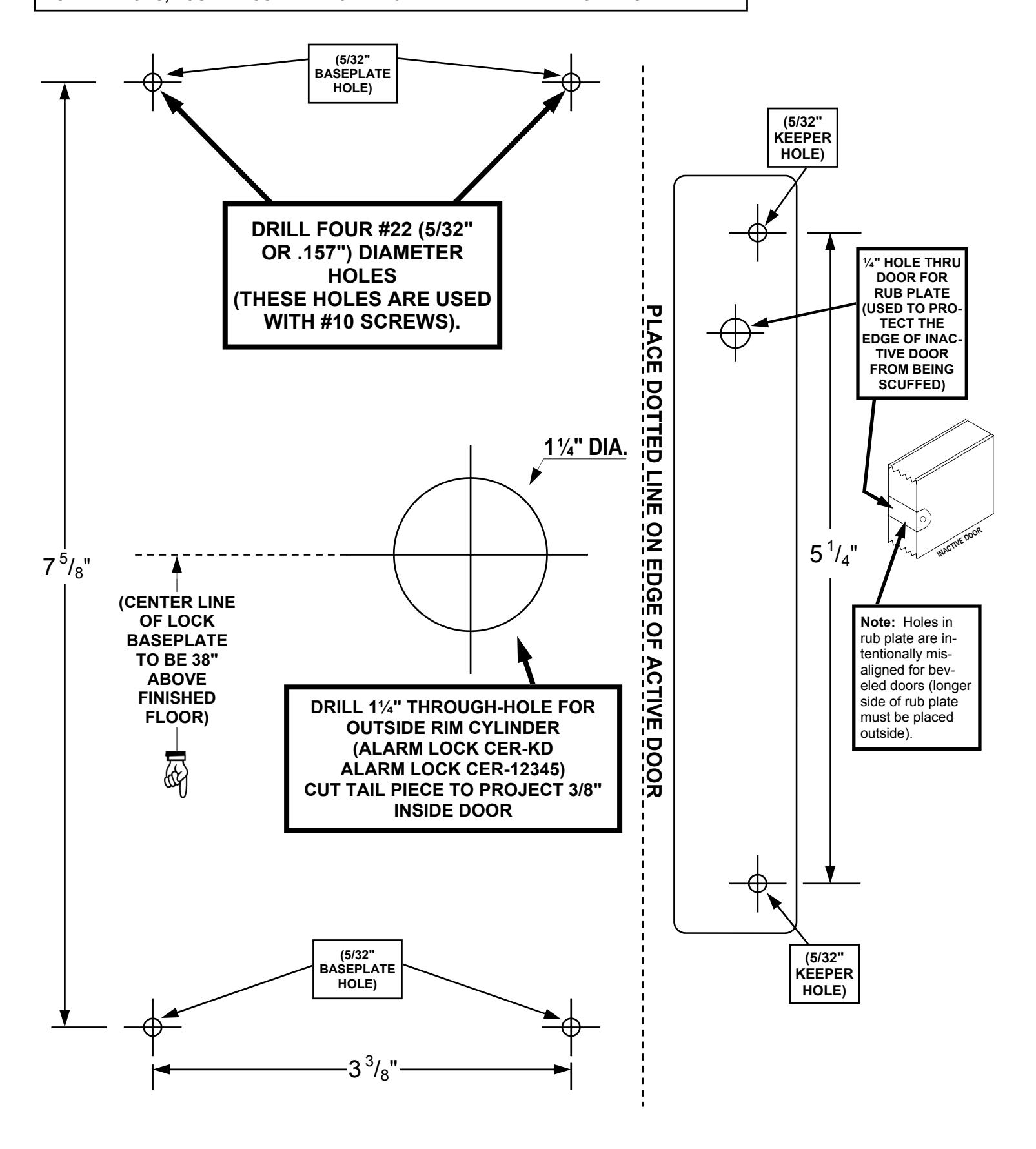

SCREW. DO NOT FULLY INSTALLED BEFORE MOUNTING THE MODEL 250 / 260 / 700 / 710 LOCK. FOR NEW INSTALLATIONS, YOU MAY USE THE MODEL 707 TEMPLATE IN PLACE OF THIS TEMPLATE. DRILL UNTIL IN-STALLATION IS COMPLETE AND ALL ADJUSTMENTS MADE, THEN DRILL & USE THIRD (5/32" (5/32 BAŜEPLATE SCREW PROVIDED. BASEPLATE FOLD 90 DEGREES ON DOTTED LINE. AFFIX TO DOOR JAMB AND TO CLOSED DOOR DRILL FOUR #22 (5/32" HOLE) HOLE) OR .157") DIAMETER HOLES (THESE HOLES ARE USED WITH #10 SCREWS). (5/32" KEEPER HOLE) IMPORTANT ALWAYS SELECT PRINTING SURFACE APPLIED KEEPER (DO NOT MORTISE) OPTIONS TO ENSURE THAT COPIES OF TEMPLATES ARE PRODUCED WITHOUT SIZE ADJUSTMENTS. AFTER PRINTING, VERIFY 11/4" DIA. THE DIMENSIONS OF THIS BOX ARE 2.000 X 2.000 INCHES $\backslash pm$ 0.010. 7⁵/₈" 3³/₈" (CENTER LINE OF LOCK BASEPLATE TO BE 38" ABOVE FINISHED FLOOR) DRILL 11/4" THROUGH-HOLE FOR OUTSIDE RIM CYLINDER (ALARM LOCK CER-KD ALARM LOCK CER-12345) CUT TAIL PIECE TO PROJECT 3/8" (5/32" INSIDE DOOR KEEPER HOLE) SEE NOTE X IN INSTRUCTIONS (3/8" WIRE-ENTRY HOLE) (5/32" (5/32" BASEPLATE BASEPLATE HOLE) HOLE)

NOTE: IF INSTALLING A MODEL 707 OUTSIDE DOOR PULL. THE MODEL 707 MUST BE

FOR HOLDING

NOTE: IF INSTALLING A MODEL 707 OUTSIDE DOOR PULL. THE MODEL 707 MUST BE FULLY INSTALLED BEFORE MOUNTING THE MODEL 250 / 260 / 700 / 710 LOCK. FOR NEW INSTALLATIONS, YOU MAY USE THE MODEL 707 TEMPLATE IN PLACE OF THIS TEMPLATE.
