Alarm Lock Model 11A Installation Template (Inswinging Doors)
Open the original PDF document
View PDF
IMPORTANT
Templates must be printed without size modifications and verified for dimensional accuracy.
- • Before printing, select the printing options necessary to ensure that copies are produced without size adjustments.
- • After printing, measure the dimensions indicated on the template to ensure correct scale.
345 Bayview Avenue Amityville, New York 11701 For Sales and Repairs 1-800-ALA-LOCK For Technical Service 1-800-645-9440 (Note: Technical Service is for security professionals only) Publicly traded on NASDAQ Symbol: NSSC

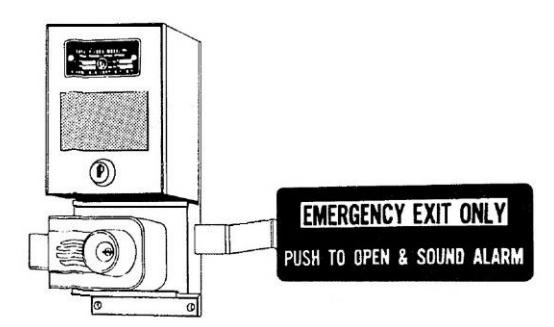

SENTRYGARD ALARM LOCK MODEL 11A

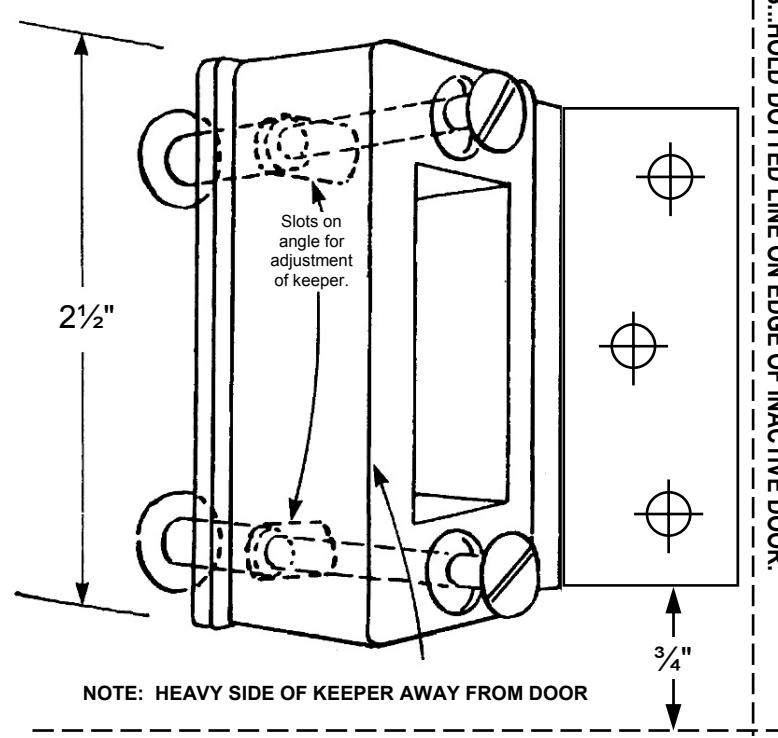

KEEPER AND PLATE DO NOT MORTISE
(THIS TEMPLATE RARELY USED)

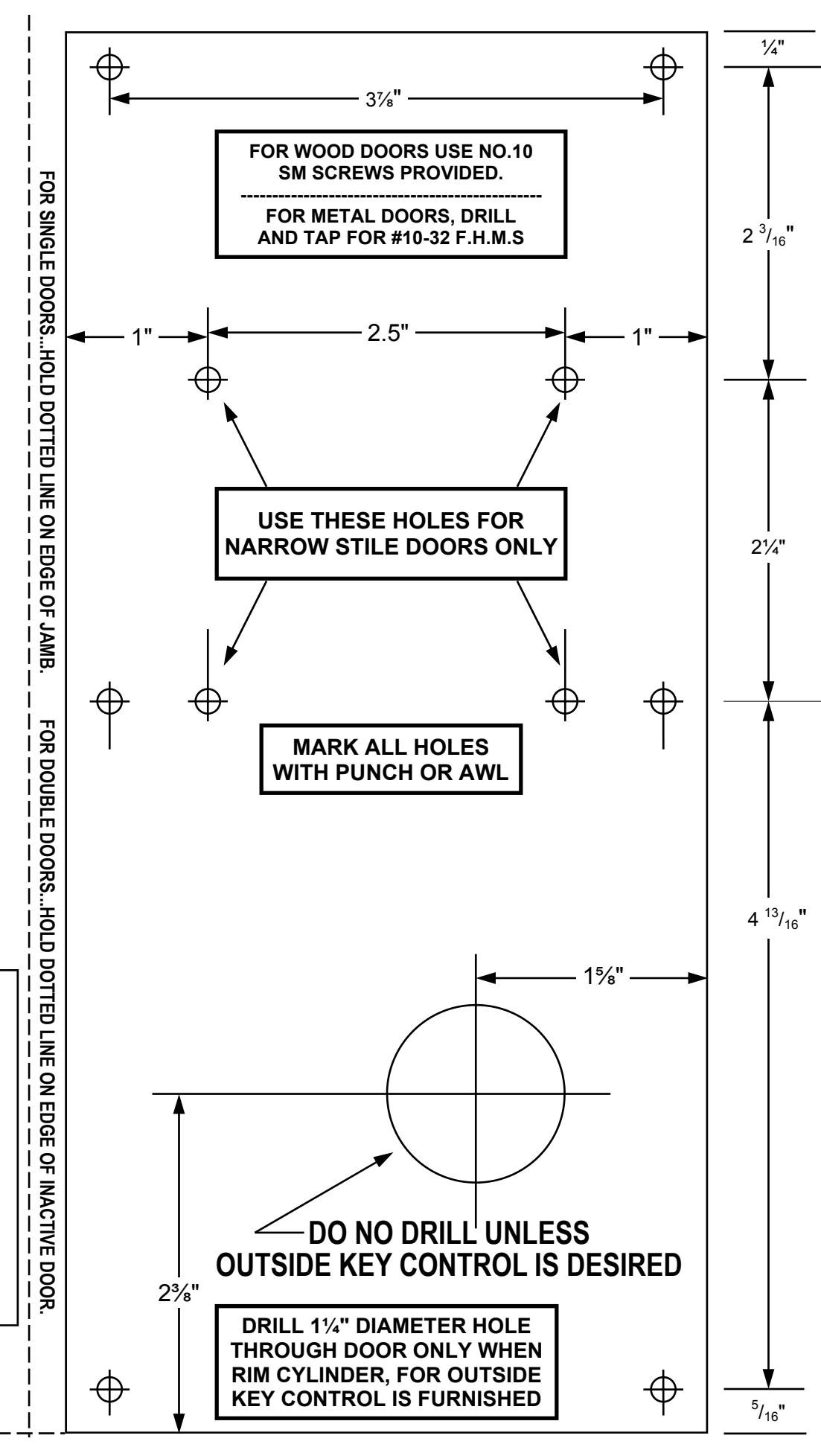

INSTALLATION TEMPLATE FOR L.H. IN-SWINGING SINGLE OR DOUBLE DOORS WITH ADJUSTABLE ANGLE KEEPER SEE REVERSE SIDE FOR RIGHT HAND INSTALLATION
INSTALLATION INSTRUCTIONS
THIS IS A NEW ALARM BOX AND NEED NOT BE REMOVED FROM THE MOUNTING PLATE
OPEN ALARM BOX AND REMOVE BATTERY. USING SIX (6) #10 SCREWS PROVIDED, MOUNT THE LOCK TO THE DOOR. (NOTE: FOUR (4) OF THE MOUNTING HOLES ARE INSIDE OF THE ALARM BOX). REPLACE BATTERY AND CLOSE THE COVER OF THE ALARM BOX.
TO REVERSE HAND OF LOCK
FROM REAR OF MOUNTING PLATE, REMOVE THE 4 SCREWS HOLDING ENTIRE LOCK MECHANISM. TURN ENTIRE LOCK MECHANISM AROUND AND REPLACE SCREWS. REVERSE CLAPPER PLATE.
IMPORTANT!
WHEN PRINTING THIS TEMPLATE FROM A .PDF FILE, ALWAYS SELECT PRINTING OPTIONS TO ENSURE THAT COPIES ARE PRODUCED WITHOUT SIZE ADJUSTMENTS.
AFTER PRINTING, VERIFY THE DIMENSIONS OF THIS BOX ARE 2.000 X 2.000 INCHES ± 0.010.
(THIS TEMPLATE RARELY USED)

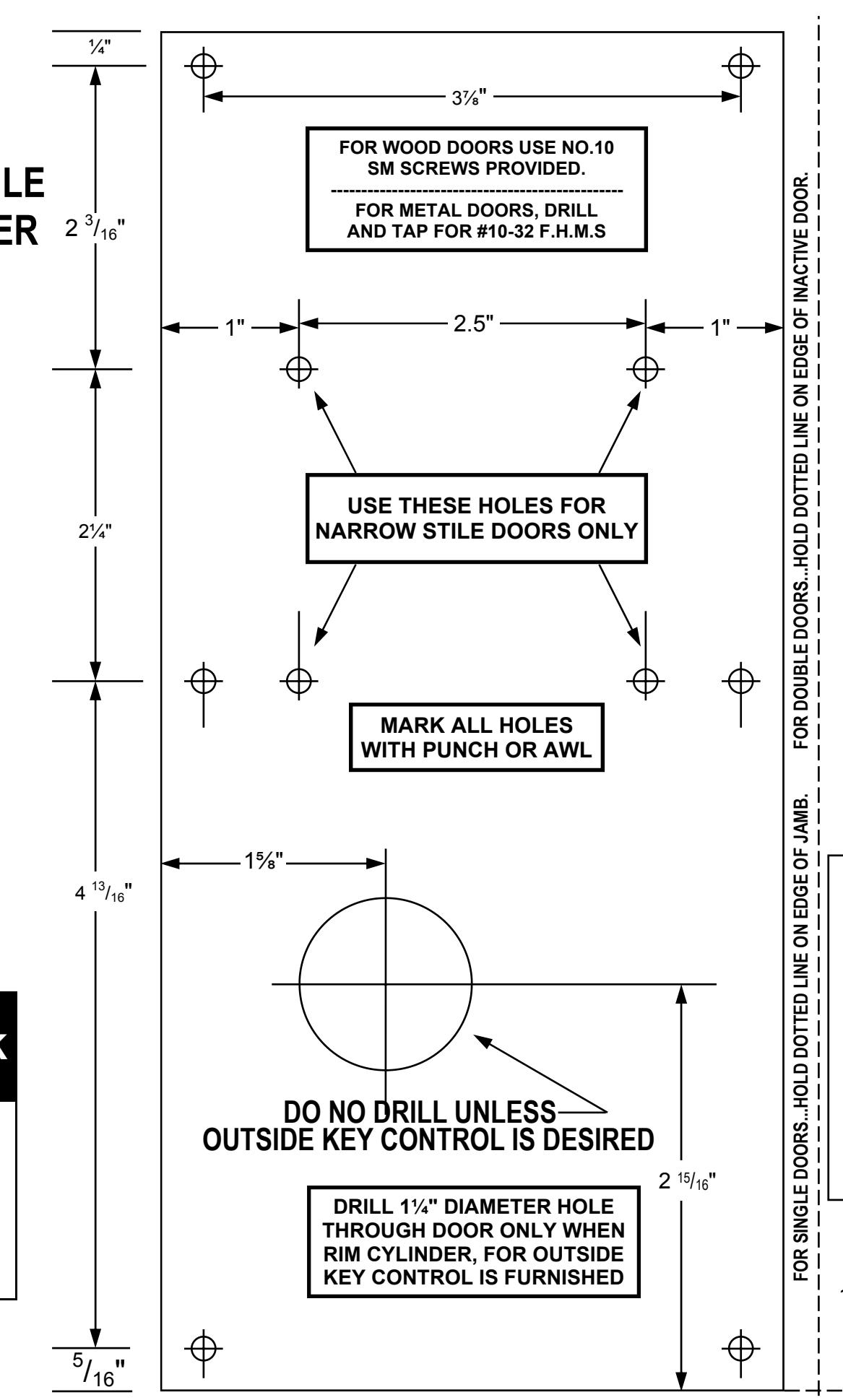

INSTALLATION TEMPLATE FOR R.H. IN-SWINGING SINGLE OR DOUBLE DOORS WITH ADJUSTABLE ANGLE KEEPER 2 3/16" SEE REVERSE SIDE FOR LEFT HAND INSTALLATION
INSTALLATION INSTRUCTIONS
THIS IS A NEW ALARM BOX AND NEED NOT BE REMOVED FROM THE MOUNTING PLATE
OPEN ALARM BOX AND REMOVE BATTERY. USING SIX (6) #10 SCREWS PROVIDED, MOUNT THE LOCK TO THE DOOR. (NOTE: FOUR (4) OF THE MOUNTING HOLES ARE INSIDE OF THE ALARM BOX). REPLACE BATTERY AND CLOSE THE COVER OF THE ALARM BOX.
IMPORTANT!
WHEN PRINTING THIS TEMPLATE FROM A .PDF FILE, ALWAYS SELECT PRINTING OPTIONS TO ENSURE THAT COPIES ARE PRODUCED WITHOUT SIZE ADJUSTMENTS.
AFTER PRINTING, VERIFY THE DIMENSIONS OF THIS BOX ARE 2.000 X 2.000 INCHES ± 0.010.
TO REVERSE HAND OF LOCK
FROM REAR OF MOUNTING PLATE, REMOVE THE 4 SCREWS HOLDING ENTIRE LOCK MECHANISM. TURN ENTIRE LOCK MECHANISM AROUND AND REPLACE SCREWS. REVERSE CLAPPER PLATE.
ALARM LOCK 345 Bavview Avenue
Amityville, New York 11701 For Sales and Repairs 1-800-ALA-LOCK For Technical Service 1-800-645-9440 (Note: Technical Service is for security professionals only) Publicly traded on NASDAQ Symbol: NSSC

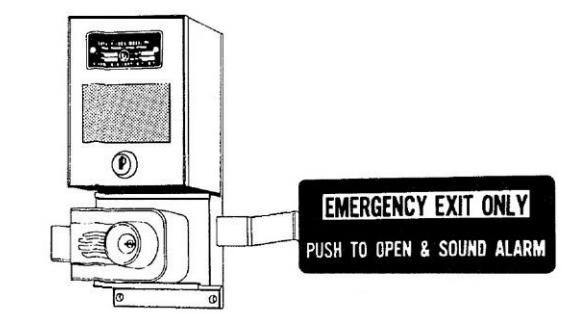

SENTRYGARD ALARM LOCK MODEL 11A

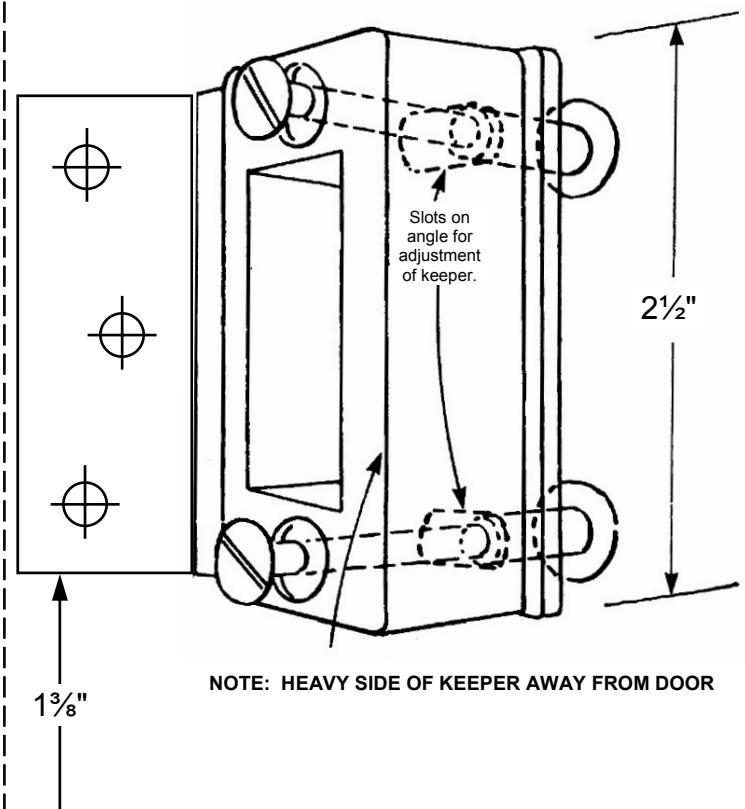

KEEPER AND PLATE DO NOT MORTISE
