Alarm Lock DL6100, PDL6100 Cylindrical Installation Template WI1676

IMPORTANT

Templates must be printed without size modifications and verified for dimensional accuracy.

• • Before printing, select the printing options necessary to ensure that copies are produced without size adjustments.
• • After printing, measure the dimensions indicated on the template to ensure correct scale.

345 Bayview Avenue Amityville, New York 11701 For Sales and Repairs 1-800-ALA-LOCK For Technical Service 1-800-645-9440 Publicly traded on NASDAQ Symbol: NSSC

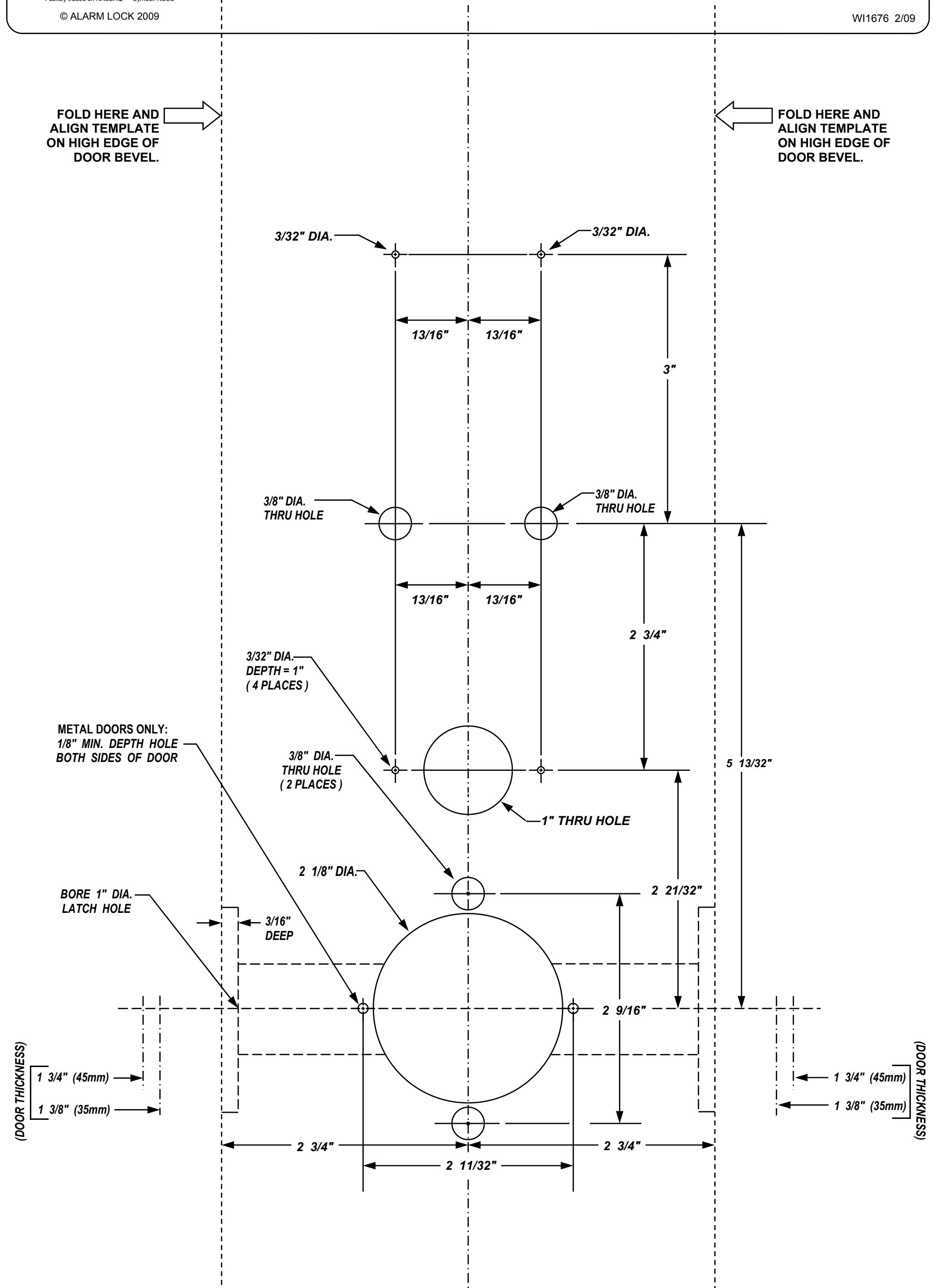

DL6100 & PDL6100 Door Locks Installation Template Wireless Trilogy®
