DL3000WP ADDENDUM TO PROGRAMMING INSTRUCTIONS
OI245 8/99
345 Bayview Avenue Amityville, New York 11701 CALL TOLL FREE: 800-ALA-LOCK (800) 252-5625

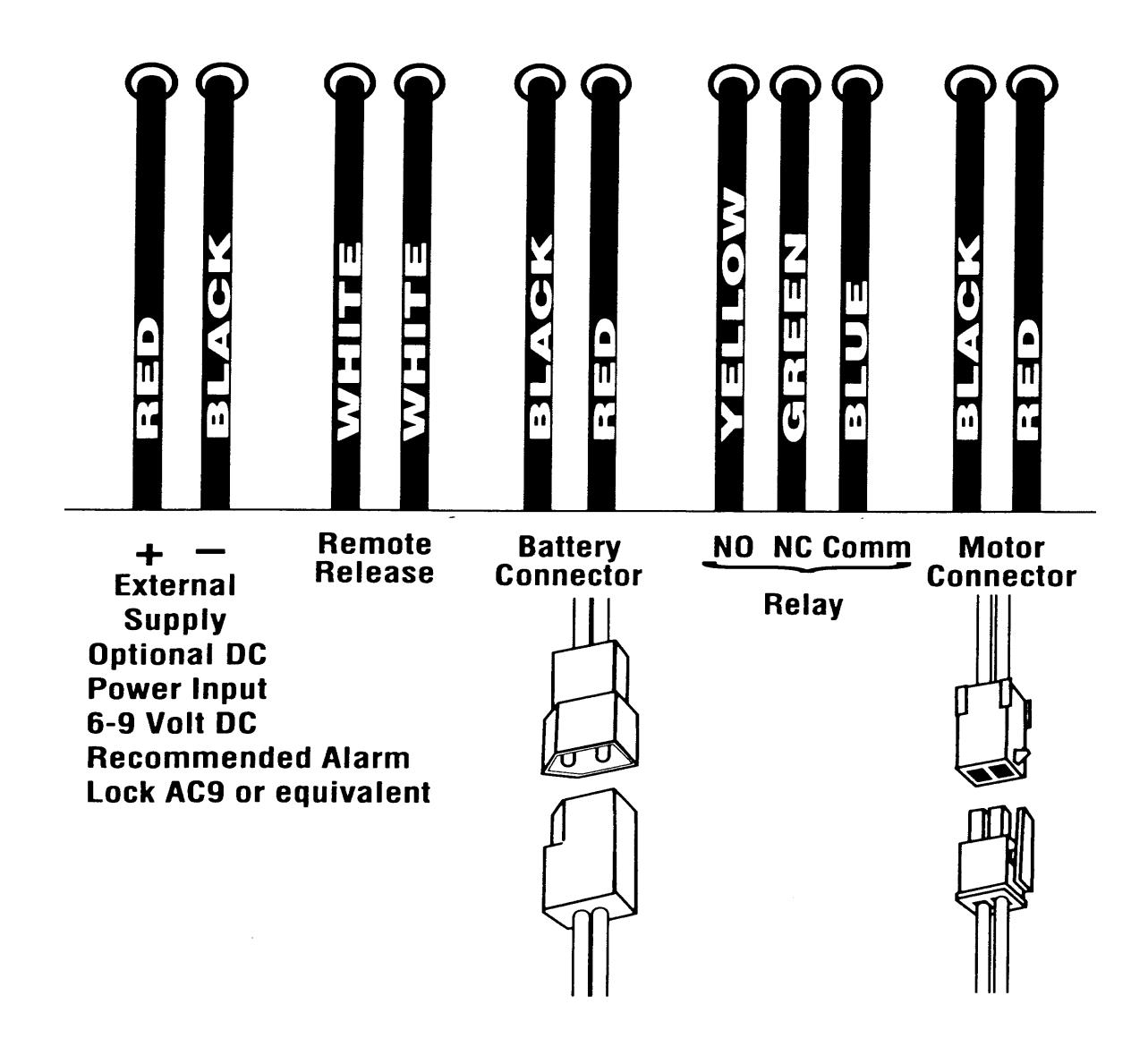

The wiring and power up information on page 6 of OI224B refers to wiring terminals. Wiring terminals are found on standard models only. The WP models do not have terminals -- they have wire leads and use a battery pack. Refer to the included installation manual (WI949C) for proper wiring.
