Trilogy: DL2800 hospitals schools airports retail pharmacies offices

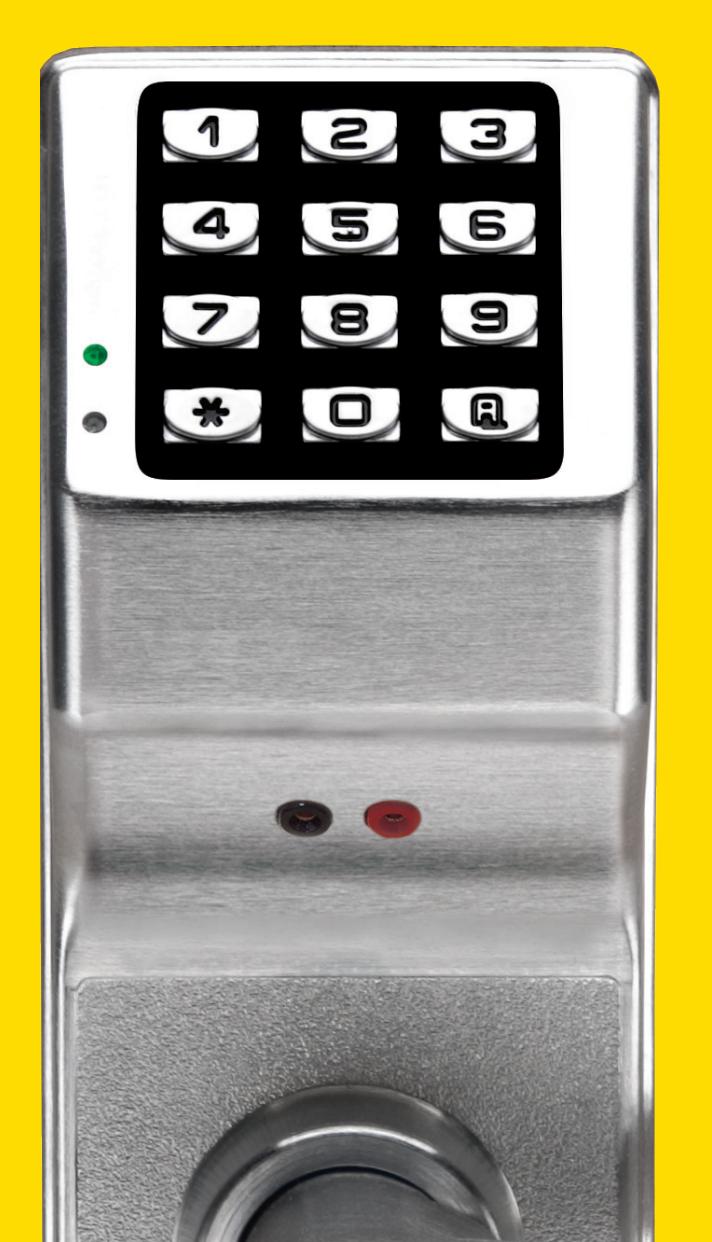

Economy audit trail pushbutton lock

Standalone access control systems with audit trail feature for indoor and outdoor applications.

• Rugged clutch mechanism and Grade 1 durability ensure long life
• 150 scheduled events, including 4 "quick schedules" for programming the 4 most common time schedules in one step
• 200 user codes including: Master, manager, supervisor and basic user. Also one-time entry service code
• Weatherproof performance, water-sealed for use inside and out, with operational temperature range of +151°F to -31°F (+66°C to -35°C)
• Entry allowance from 5-15 seconds
• Greater security with "temporary keypad lockout" after 3 unsuccessful code-entry attempts
• 1000 event audit trail with time/date stamp for a printable record of door access activity by user
• Real time clock allows logging of events to within 1 second of accuracy
• Programmable relays energize when one or more selected events occur
• 4 time-out functions allow a user to enable other users or unlock the lock for some time period without needing to return to the lock
• Easy to install in about an hour. Retrofits most cylindrical locksets and digital locks
• Battery operated; uses 5 AA batteries
• Available in standard key override and interchangeable core models accepting 6 or 7 pin cores from Arrow, Best, Falcon or KSP. Other IC core preps available.
• Available in standard Trilogy leverset (straight) or with Regal (curved) lever

Weather-Resistant Lever in US3 DL2800/3

Weather-Resistant Lever with IC Core in 26D DL2800IC/ 26D

Model & Series: DL28 = Weather-Resistant Trilogy Series Trim: 00 = Straight Lever 75 = Regal Lever Cylinder: IC = Standard Interchangeable Core Prep for Best, Falcon, Arrow, KSP (Note: No "IC" indicates standard K.O. cylinder.)

Finish: /26D = US26D Satin Chrome

/3 = US3 Polished Brass

/26 = US26 Polished Chrome

/5 = US5 Antique Brass

/10B = Duronodic (Special Order)

Special Order IC Prep:

-Y = Yale

/26D

-M = Medeco

-R = Sargent

-C = Corbin/Russwin

-S = Schlage

STRIKE: 1 1/8" x 2 3/4" T strike & 1 1/4" x 4 7/8" ASA strike included. With screws for wood or metal jambs.

LATCH FRONT: 1 1/8" x 2 1/4" wrought brass or stainless steel.

HANDING: Non-handed.

FINISHES: US26D satin chrome, US3 polished brass, US26 polished chrome, US5 antique brass, 10B Duronodic. (Call for other finishes.)

POWER: 5 AA alkaline batteries, supplied. Audible low battery alert, visual and audible entry indicators, unique Flex Drive® motor. 100,000 cycles typical.

DOOR PREP: Standard ANSI A115 Series Prep, modified by adding additional through-bolt holes.

COMPLIANCES: Grade I, heavy duty cylindrical lockset, UL listed to the 10C Positive Pressure Specification and FCC certified. ADA compliant levers.

Regal handle option

Trilogy audit trail lock accessories

AL-DTMII Data Transfer Module used to transfer program data from the PC (running DL-WINDOWS software) to the lock and receives audit trail from the lock. Can store data for up to 96 locks at a time.

AL-PCI2 Trilogy PC Software Kit Windows-format software kit used to program Trilogy lock, codes, schedules, view audit trail reports. Kit includes DLWINDOWS software and (required)

computer interface cable for use on serial port. Note: Requires DL-WINDOWS Software version 3.02 or higher.

AL-PCI2-USB , As above, but with interface cable for USB port.

DL-WINDOWS Upgrade for Trilogy software version (software only). (Contained in two items above.)

AL-PRE: Prox Card Reader/Enroller Enables instant, automatic enrollment of Prox cards, keyfobs, tags into DL-Windows (Simply present the prox Card/fob device to the unit's faceplate to enroll—no need to be\nin the presence of the lock while enrolling—

eliminates the need for keyboarding each

badge's number). Supports all Prox cards, keyfobs and tags. Simultaneous card enrollment, downloading or uploading – all on just one serial port. 9V Battery operation.

AL-IR1 Infrared Printer Prints the event log and user code with wireless hand-held convenience (battery operated).

ALARM LOCK

345 Bayview Ave, Amityville, New York 11701 1-800-ALA-LOCK • Fax 631-789-3383

www.alarmlock.com

Trilogy is a trademark of Alarm Lock. © NAPCO 6/2005 Patents and Patents Pending ALA167a
