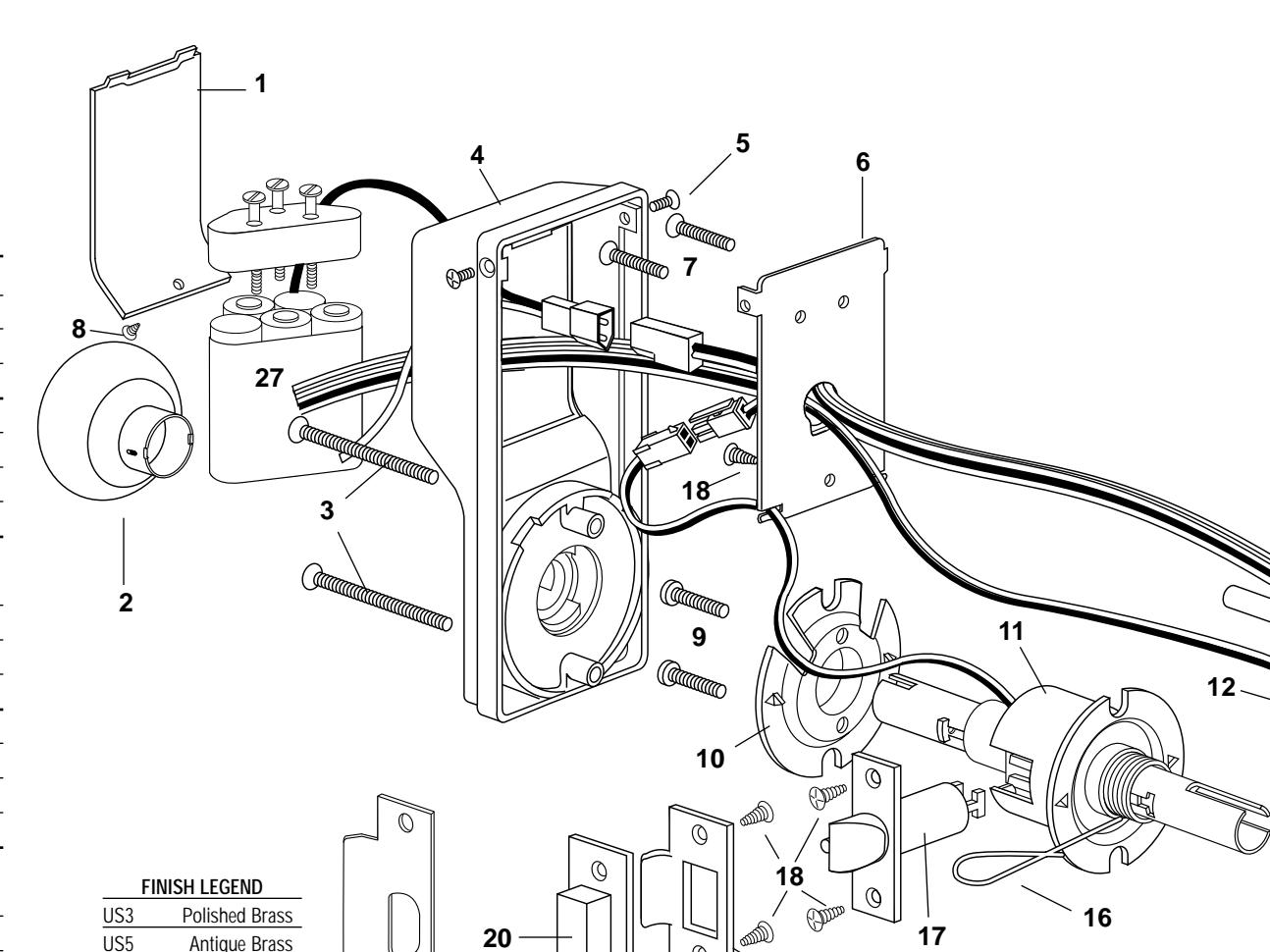

Alarm Lock DL2750WP Parts List With Exploded View
Open the original PDF document
View PDFMODEL DL 2750WP KNOB SET PARTS LIST
Standard Cylinder and Interchangeable Core Models
| Key Part No. Description | ||||
|---|---|---|---|---|
| Description | ||||
| 1a | HW592-US3 | Battery Cover | ||
| 1b | HW592-US5 | Battery Cover | ||
| 1c | HW592-26D | Battery Cover | ||
| 1d | HW592-26 | Battery Cover | ||
| 2a | S6033-US3 | Inside Knob | ||
| 2b | S6033-US5 | Inside Knob | ||
| 2c | S6033-26D | Inside Knob | ||
| 2d | S6033-26 | Inside Knob | ||
| Thru Bolt/10-32x2-1/2", (2) | ||||
| 3a | SC458-US3 | Flat Hd.,PH,MS | ||
| 3b | SC458-US5 | Flat Hd.,PH,MS | ||
| 3c | SC458-26D | Flat Hd.,PH,MS | ||
| 3d | SC458-26 | Flat Hd.,PH,MS | ||
| 4a | S6037-US3 | Inside Housing Ass'y | ||
| 4b | S6037-US5 | Inside Housing Ass'y | ||
| 4c | S6037-26D | Inside Housing Ass'y | ||
| 4d | S6037-26 | Inside Housing Ass'y | ||
| Inside Mounting Screws (2) | ||||
| 5a | P1526-US3 | #6-32x3/8", Oval Hd | ||
| 5b | P1526-US5 | #6-32x3/8", Oval Hd | ||
| 5c | P1526-26D | #6-32x3/8", Oval Hd | ||
| 5d | P1526-26 | #6-32x3/8", Oval Hd | ||
| 6 | HW594 | Inside Mounting Plate | ||
| Inside Mounting Plate Screws (2) | ||||
| 7 | SC459 | #8-32 x 1", Flat Hd., PH, MS | ||
| 8a | P5851-26D | #4-40x1/4", Flat Hd., PH, MS | ||
| 8b | P5851-US3 | #4-40x1/4", Flat Hd., PH, MS | ||
| Inside Rose Screws (2) | ||||
| 9 | SC457 | #10-32 x 1", w/#8 Pan Hd, PH, MS | ||
| 10 | HW564 | Inside Rose | ||
| 11 | S6038 | Lock Body Assembly | ||
| 11a | S6039 | IC Lock Body Assembly | ||
| 12a | S6036-US3 | Outside Housing Ass'y | ||
| 12b | S6036-US5 | Outside Housing Ass'y | ||
| 12c | S6036-26D | Outside Housing Ass'y | ||
| 12d | S6036-26 | Outside Housing Ass'y | ||
| Key Part No. | Description |
|---|---|
| 13a HW736-US3 | Std. CylinderAssembly |
| 13b HW736-26D | Std. Cylinder Assembly |
| 14a S6031-US3 | Outside Knob Assembly |
| 14b S6031-US5 | Outside Knob Assembly |
| 14c S6031-26D | Outside Knob Assembly |
| 14d S6031-26 | Outside Knob Assembly |
| 15a S6032-US3 | Outside Knob-I C Core Ass'y |
| 15b S6032-US5 | Outside Knob-I C Core Ass'y |
| 15c S6032-26D | Outside Knob-I C Core Ass'y |
| 15d S6032-26 | Outside Knob-I C Core Ass'y |
Satin Chrome Polished Chrome
| Part No. | Description |
|---|---|
| IW618 | Knob Release Pin |
| 6034-US3 | Latch - 2-3/4" Backset |
| 66034-US5 | Latch - 2-3/4" Backset |
| 66034-26D | Latch - 2-3/4" Backset |
| 66034-26 | Latch - 2-3/4" Backset |
| 6035-US3 | Latch - 2-3/8" Backset |
| 66035-US5 | Latch - 2-3/8" Backset |
| 66035-26D | Latch - 2-3/8" Backset |
| 66035-26 | Latch - 2-3/8" Backset |
|
66034-US3
66034-US5 66034-26D 66034-26 66035-US3 66035-US5 |
| Key | Part No. | Description |
|---|---|---|
| 18a | SC460-US3 | #8x3/4" Combination screw |
| _18b | SC460-US5 | #8x3/4" Combination screw |
| 18c | SC460-26D | #8x3/4" Combination screw |
| 18d | SC460-26 | #8x3/4" Combination screw |
| 19a | HW577-US3 | Strike 2-3/4" x 1-1/8" |
| 19b | HW577-US5 | Strike 2-3/4" x 1-1/8" |
| 19c | HW577-26D | Strike 2-3/4" x 1-1/8" |
| 19d | HW577-26 | Strike 2-3/4" x 1-1/8" |
| 20 | P5847 | Dust Box |
| 21 | HW598 | IC Tailpiece for Best, Arrow, Falcon |
| Key | Part No. | Description | ||
|---|---|---|---|---|
| 22 | HW597 | Std. Tailpiece | ||
| 23 | HW580 | Replacement tailpiece for Schlage | ||
| 24 | HW620 | Replacement tailpiece for Lori | ||
| 25 | WA160 | Tailpiece washer for all tailpieces | ||
| 26a | P5846-26D | Strike 4-7/8" x 1-1/4" | ||
| 26b | P5846-US5 | Strike 4-7/8" x 1-1/4" | ||
| 26c | P5846-US3 | Strike 4-7/8" x 1-1/4" | ||
| 26d | P5846-26 | Strike 4-7/8" x 1-1/4" | ||
| 27 | S6040 | Battery Pack Ass'y | ||
IC INTERCHANGEABLE CORE
TAILPIECES
25
