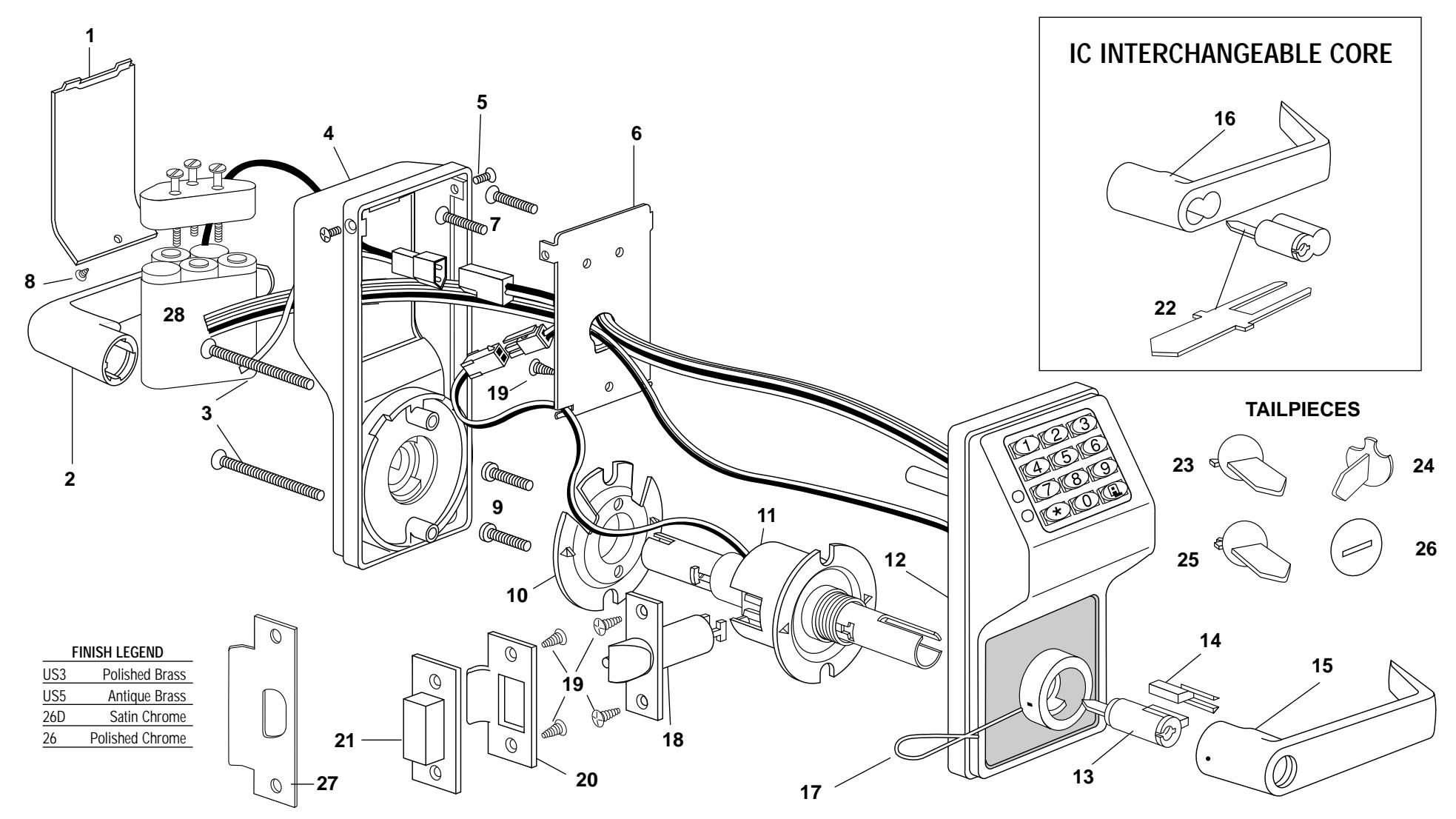

Alarm Lock DL2700WP Parts List With Exploded View
Open the original PDF document
View PDFMODEL DL 2700WP LEVER SETS PARTS LIST
Standard Cylinder and Interchangeable Core Models
| Key | Part No. | Description |
|---|---|---|
| 1a HW592-US3 | Battery Cover | |
| 1b HW592-US5 | Battery Cover | |
| 1c HW592-26D | Battery Cover | |
| 1d HW592-26 | Battery Cover | |
| 2a HW615-US3 | Inside Lever | |
| 2b HW615-US5 | Inside Lever | |
| 2c HW615-26D | Inside Lever | |
| 2d HW615-26 | Inside Lever | |
| Thru Bolt/10-32x2-1/2", (2) | ||
| 3a SC458-US3 | Flat Hd.,PH,MS | |
| 3b SC458-US5 | Flat Hd.,PH,MS | |
| 3c SC458-26D | Flat Hd.,PH,MS | |
| 3d SC458-26 | Flat Hd.,PH,MS | |
| 4a S6044-US3 | Inside Housing Ass'y | |
| 4b S6044-US5 | Inside Housing Ass'y | |
| 4c S6044-26D | Inside Housing Ass'y | |
| 4d S6044-26 | Inside Housing Ass'y | |
| Inside Mounting Screws (2) | ||
| 5a P1526-US3 | #6-32x3/8", Oval Hd | |
| 5b P1526-US5 | #6-32x3/8", Oval Hd | |
| 5c P1526-26D | #6-32x3/8", Oval Hd | |
| 5d P1526-26 | #6-32x3/8", Oval Hd | |
| 6 HW594 | Inside Mounting Plate | |
| Inside Mounting Plate Screws (2) | ||
| 7 SC459 | #8-32 x 1", Flat Hd., PH, MS | |
| 8a P5851-26D | #4-40x1/4", Flat Hd., PH, MS | |
| 8b P5851-US3 | #4-40x1/4", Flat Hd., PH, MS | |
| Inside Rose Screws (2) | ||
| 9 SC457 | #10-32 x 1", w/#8 Pan Hd, PH, MS | |
| 10 HW564 | Inside Rose | |
| 11 S6045 | Lock Body Assembly | |
| 11A S6046 | IC Lock Body Assembly | |
| 12a S6054-US3 | Outside Housing Ass'y | |
| 12b S6054-US5 | Outside Housing Ass'y | |
| 12c S6054-26D | Outside Housing Ass'y | |
| 12d S6054-26 | Outside Housing Ass'y | |
| 13a HW596-US3 | Std. Cylinder Ass'y |
|---|---|
| 13b HW596-26D | Std. Cylinder Ass'y |
| 14 HW578 | Cylinder Retainer |
| 15a HW614-US3 | Outside Lever |
| 15b HW614-US5 | Outside Lever |
| 15c HW614-26D | Outside Lever |
| 15d HW614-26 | Outside Lever |
| 16a HW616-US3 | Outside Lever-IC Core |
| 16b HW616-US5 | Outside Lever-IC Core |
| 16c HW616-26D | Outside Lever-IC Core |
| 16d HW616-26 | Outside Lever-IC Core |
|---|---|
| 17 HW618 | Lever Release Pin |
| 18a S6034-US3 | Latch - 2-3/4" Backset |
| 18b S6034-US5 | Latch - 2-3/4" Backset |
| 18c S6034-26D | Latch - 2-3/4" Backset |
| 18d S6034-26 | Latch - 2-3/4" Backset |
| 18e S6035-US3 | Latch - 2-3/8" Backset |
| 18f S6035-US5 | Latch - 2-3/8" Backset |
| 18g S6035-26D | Latch - 2-3/8" Backset |
| 18h S6035-26 | Latch - 2-3/8" Backset |
|
Key
Part No. 13a HW596-US3 |
Description
Std. Cylinder Ass'y |
Key
Part No. 16d HW616-26 |
Description
Outside Lever-IC Core |
Key
Part No. 19a SC460-US3 |
Description
#8x3/4" Combination screw |
Key
Part No. 23 HW597 |
Description
Std. Tailpiece |
|---|---|---|---|---|---|---|---|
| 13b HW596-26D | Std. Cylinder Ass'y | 17 HW618 | Lever Release Pin | 19b SC460-US5 | #8x3/4" Combination screw | ||
| 14 HW578 | Cylinder Retainer | 18a S6034-US3 | Latch - 2-3/4" Backset | 19c SC460-26D | #8x3/4" Combination screw | 25 HW620 | Replacement tailpiece for Lori |
| 15a HW614-US3 | Outside Lever | 18b S6034-US5 | Latch - 2-3/4" Backset | 19d SC460-26 | #8x3/4" Combination screw | ||
| 15b HW614-US5 | Outside Lever | 18c S6034-26D | Latch - 2-3/4" Backset | 20a HW577-US3 | Strike 2-3/4" x 1-1/8" | 27a HW470-US3 | Strike 4-7/8" x 1-1/4" |
| 15c HW614-26D | Outside Lever | 18d S6034-26 | Latch - 2-3/4" Backset | 20b HW577-US5 | Strike 2-3/4" x 1-1/8" | 27b HW470-US5 | Strike 4-7/8" x 1-1/4" |
| 15d HW614-26 | Outside Lever | 18e S6035-US3 | Latch - 2-3/8" Backset | 20c HW577-26D | Strike 2-3/4" x 1-1/8" | 27c HW470-26D | Strike 4-7/8" x 1-1/4" |
| 16a HW616-US3 | Outside Lever-IC Core | 18f S6035-US5 | Latch - 2-3/8" Backset | 20d HW577-26 | Strike 2-3/4" x 1-1/8" | 27d HW470-26 | Strike 4-7/8" x 1-1/4" |
| 16b HW616-US5 | Outside Lever-IC Core | 18g S6035-26D | Latch - 2-3/8" Backset | 21 P5847 | Dust Box | 28 S6040 | Battery Pack Assembly |
| 16c HW616-26D | Outside Lever-IC Core | 18h S6035-26 | Latch - 2-3/8" Backset | 22 HW598 | IC Tailpiece for Best, Arrow, Falcon |
| 23 HW597 | Std. Tailpiece | |
|---|---|---|
| 24 HW580 | Replacement tailpiece for Schlage | |
| 25 HW620 | Replacement tailpiece for Lori | |
| 26 WA160 | Tailpiece washer for all tailpieces | |
| 27a HW470-US3 | Strike 4-7/8" x 1-1/4" | |
| 27b HW470-US5 | Strike 4-7/8" x 1-1/4" | |
| 27c HW470-26D | Strike 4-7/8" x 1-1/4" | |
| 27d HW470-26 | Strike 4-7/8" x 1-1/4" | |
| 28 S6040 | Battery Pack Assembly | |
