DK3000 and PDK3000 - Installation Instructions

DK3000 Remote Access Controller

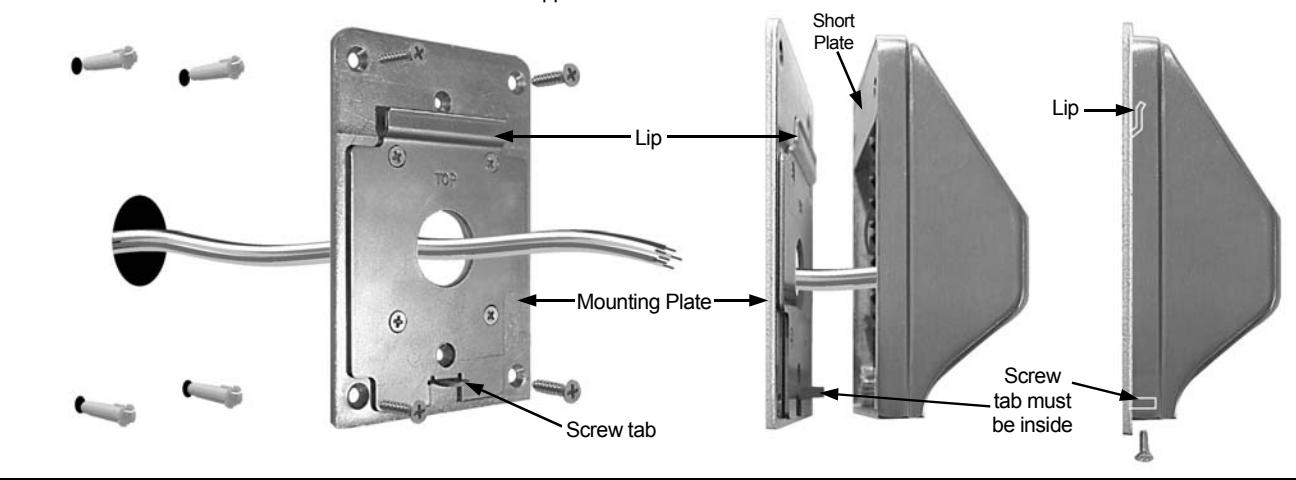

WALL INSTALLATION

• 1. Use Mounting Plate as a template to trace and drill four 7/32" diameter holes for wall anchors and 1" hole for wires.
• 2. Pull all existing wires through wall and Mounting Plate.

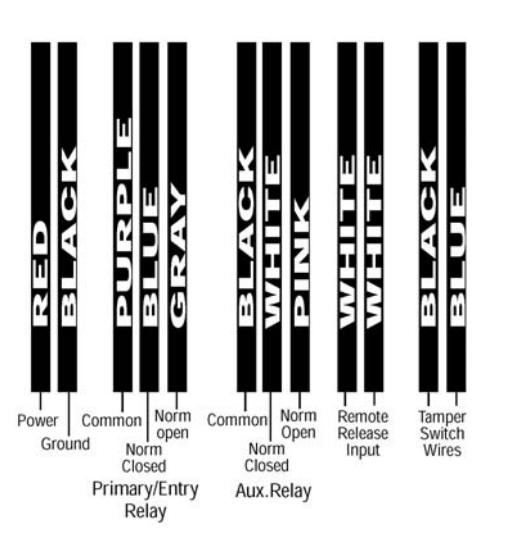

• 3. Position Mounting Plate and fasten with four wall anchor screws. Connect wires as necessary using wire nuts supplied. Push wires inside.
• 4. Position unit so that the Short Plate can be placed over the lip on the Mounting Plate.
• 5. Press unit flush with Mounting Plate and pull down. Fasten with screw.

PDK3000 Remote Access Controller with PROX

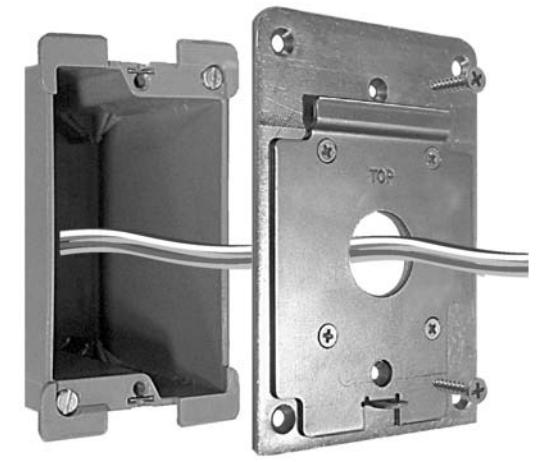

GANG BOX INSTALLATION

A. Pull all existing wires through wall Gang Box and Mounting Plate.

B. Position Mounting Plate and fasten with two flathead screws
