CORRECT WAY TO REMOVE INSIDE HOUSING FROM SPINDLE
345 Bayview Avenue Amityville, New York 11701 For Sales and Repairs 1-800-ALA-LOCK For Technical Service 1-800-645-9440
(Note: Technical Service is for alarm professionals only)
Publicly traded on NASDAQ Symbol: NSSC © ALARM LOCK 2010 WI1871 5/10

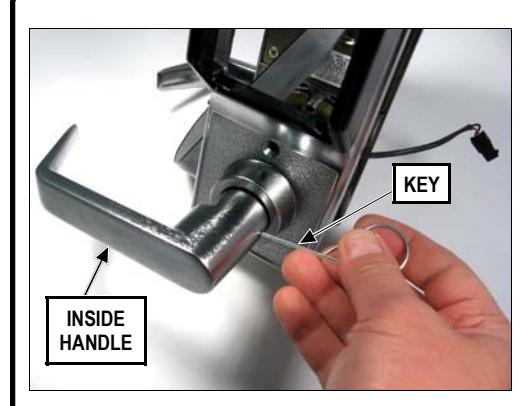

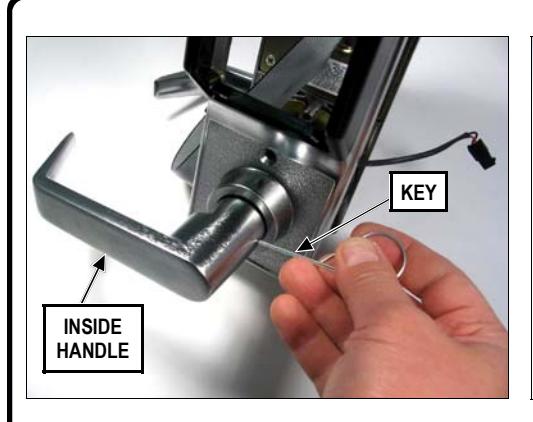

Use key to depress the lever catch pin, then remove the inside handle.

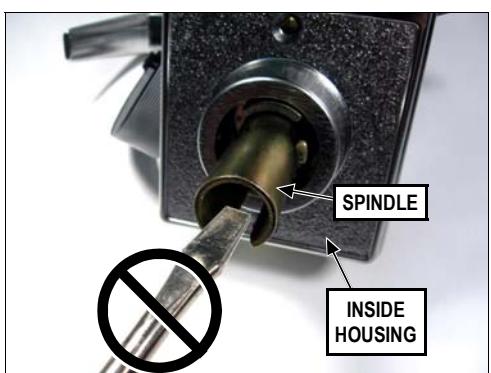

Do NOT insert a screwdriver or other tool into the spindle to release the catch pin, as the catch spring is easily damaged.

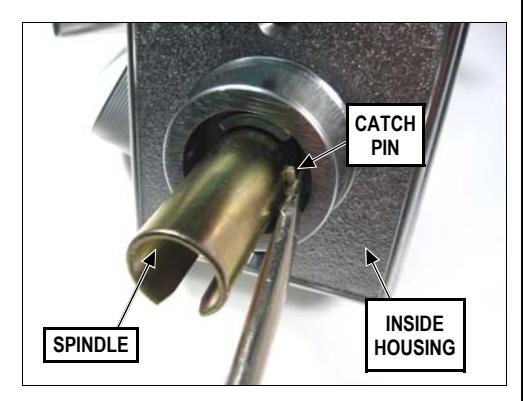

Press the catch pin as shown, then pull the inside housing off spindle.
345 Bayview Avenue Amityville, New York 11701 For Sales and Repairs 1-800-ALA-LOCK For Technical Service 1-800-645-9440
(Note: Technical Service is for alarm professionals only)
CORRECT WAY TO REMOVE INSIDE HOUSING FROM SPINDLE
Publicly traded on NASDAQ Symbol: NSSC © ALARM LOCK 2010 WI1871 5/10
Use key to depress the lever catch pin, then remove the inside handle.
Do NOT insert a screwdriver or other tool into the spindle to release the catch pin, as the catch spring is easily damaged.
Press the catch pin as shown, then pull the inside housing off spindle.
