Alarm Lock Addendum to the 4500 Series Installation Instructions

345 Bayview Avenue Amityville, New York 11701 For Sales and Repairs 1-800-ALA-LOCK For Technical Service 1-800-645-9440 ( Note: Technical Service is for locksmiths and alarm professionals only) Publicly traded on NASDAQ Symbol: NSSC

ADDENDUM TO THE 4500 SERIES INSTALLATION INSTRUCTIONS

© ALARM LOCK 2008 WI1798 12/08

Before installing the Inside Housing Assembly , rotate the Cam as follows:

1. Before installing the Inside Housing Assembly , be sure the deadbolt is retracted as shown.

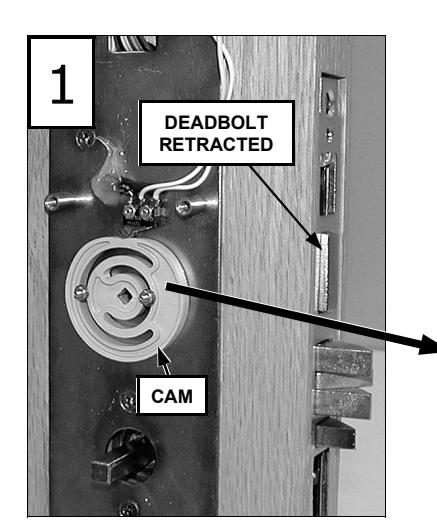

FIG. 1: CAM OVERVIEW.

2. Notice the circumference of the Cam is not completely round; there is a "flat spot". With the deadbolt retracted, rotate the Cam so that the Leaf Switch Arm sits in the "flat spot" of the Cam, as shown in Fig. 2.

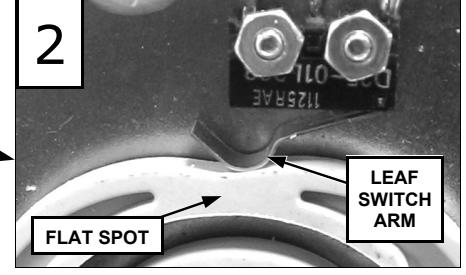

FIG. 2: CLOSE-UP OF CAM FLAT SPOT.

3. After installing the Inside Housing Assembly , connect the white wire and orange wire plugs (white to white and orange to orange).

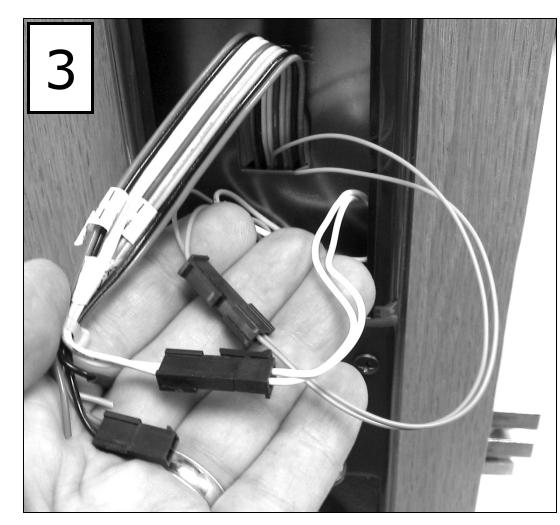

FIG. 3: CONNECT PLUGS.
