Alarm Lock AL-IME2-EXP Expander Module Installation Instructions

Open the original PDF document

345 Bayview Avenue Amityville, New York 11701 For Sales and Repairs 1-800-ALA-LOCK For Technical Service 1-800-645-9440 or visit us at http://tech.napcosecurity.com/ (Note: Technical Service is for security professionals only) Publicly traded on NASDAQ Symbol: NSSC

AL-IME2-EXP Expander

Installation Instructions

OVERVIEW

The Trilogy Networx™ AL-IME2-EXP Expander extends the coverage area of version 2 series Gateways, allowing control of up to its rated maximum of 63 Networx locks per Gateway. Installation is simple, as the Expander only requires a connection to an AC outlet.

AL-IME2-EXP Expanders are cost-effective, easier to wire than conventional Gateways, and feature a simplified 'Plug and Play' setup where the Networx system automatically identifies all newly powered Expanders and quickly determines the best wireless signal pathways. Up to 7 Expanders can be added to one version 2 series Gateway.

Why use AL-IME2-EXP Expanders?

Less costly, Expanders can be used in place of additional Gateways
Does not require network access / Ethernet cables
Extends wireless lock signal coverage
Reach otherwise troublesome locks in areas of insufficient signal strength
Allows for easier (flexible) positioning of version 2 Gateways
Allows large area signal coverage with a single network connection to the Gateway

Note: Expanders are available in two different designs, the AL-IME2-EXP and the AL-IME2-PIE Plug-In Expander (identical in operation, the compact AL-IME2-PIE plugs directly into a standard 120VAC un-switched/uninterruptable wall outlet).

Version 2

The AL-IME2-EXP "version 2" Expanders (notice the " 2 " in the model name) are the next generation of Networx wireless devices. Because AL-IME2-EXP Expanders only work with version 2 Gateways, a version 2 Gateway must be installed and operational in your system for AL-IME2-EXP Expanders to function ( AL-IME2-EXP Expanders cannot communicate with older "non-version 2" Gateways).

Note: Although the version 2 Gateways and AL-IME2- EXP Expanders CAN be mixed into an existing system that includes older "non-version 2" Gateways, at least one new version 2 Gateway must be up and running before an AL-IME2-EXP Expander can be used .

IMPORTANT: DL-Windows version 5.4.2 or later is required to support version 2 Gateways and Expanders.

The AL-IME2-EXP Expander is compatible with Alarm Lock and Continental Access products. Refer to the documentation supplied with your software for integration details.

AL-IME2-EXP SPECIFICATIONS

NETWORK RANGE

Gateway/Expander to Locks: Clear field range 500'. Typical indoor range: Networx 75-175'; ArchiTech Networx: 50-125'. Note: Actual range varies with building construction.

Gateway/Expander to Expander: Clear field range 500'. Typical indoor range, 75- 175'. Note: Actual range varies with building construction.

AL RADIO LINK

900 MHz GFSK 50 Channels 10mW power output

POWER - Provided by UL Listed Class 2 Transformer

Peak Supply Current: 150mA Input Voltage: 5 - 6VAC

Includes one (1) 6VAC External Power Supply

ENVIRONMENTAL

Operating Temperature: -20˚ to 60˚C (-4˚ to 140˚F) Storage Temperature: -40˚ to 85˚C (-40˚ to 185˚F)

PHYSICAL

Enclosure Size: 4.5"H x 6.0"W x 1.94"D Weight: 0.5lbs.

EXPANDER LOCATION GUIDELINES

Once your version 2 Gateway location has been selected, the next step is to determine where to mount the Expander. However, the following must be taken into consideration:

Generally, the Expanders should be within approximately 75 feet (radially) from the Gateway or another Expander
Expanders should be located within 100 feet (radially) from the intended wireless lock locations
- Open areas will increase range while concrete building construction, walls, ceilings and narrow corridors will decrease range
- ArchiTech series locks generally have shorter range to/ from an Expander
Select a location that allows access to the power wires running from the 6VAC power transformer (supplied)
Expanders should be mounted in elevated areas; however mounting in a drop ceiling can adversely affect signal strength
- Preferred mounting position = 6 to 12" below ceiling
Expanders must be mounted vertically; horizontal "flat" mounting of the Expander should be specifically avoided
Although wood and wallboard construction can have little effect upon signal strength, concrete or brick can reduce signal strength by up to 35%. Steel-reinforced concrete or metal lath and plaster can reduce signal strength as much as 90%!
Do NOT mount close to electrical wiring or other metal obstructions such as pipes or conduits
Installing in computer closets or server rooms can negatively impact signal strength

Helpful Tips

The AL-NSM Networx Signal Meter and the AL-NSG Networx Signal Generator can assist with identifying

optimal Gateway locations relative to Expanders and locks. See WI2092 for complete information.

The "SIGNAL LEVEL" graph displayed on the front label of the AL-NSM Networx Signal Meter indicates the signal strength as measured in "DL-Windows units"; the AL-IME2-EXP will allow itself to be connected to the Gateway (or another Expander) if the signal is determined to be 37 or greater. Therefore, the AL-NSM should have a signal strength of 37 or above at the intended Expander installation location
We recommend obtaining or creating a layout of your intended system identifying all proposed installation locations, also noting building construction materials

IMPORTANT: Be sure to read the " EXPANDER GROUP" DIALS section on page 3 before powering your Expanders.

The above guidelines and tips should be followed for each additional Expander added to the system. See next section for Expander installation configurations.

INSTALLATION CONFIGURATIONS

AL-IME2-EXP Expanders can be added in any configuration. Provided the above instructions from EXPANDER LO-CATION GUIDELINES are followed, Gateways / Expanders will automatically determine the optimal routing pathways between one another, ensuring optimal signal levels. The following are examples of Expander configurations: E1

" Star Pattern ": This configuration could be used to cover an entire building with a single version 2 Gateway located in the center, surrounded by up to 7 Expanders

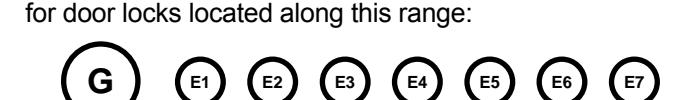

(maximum). " Daisy-Chain ": For covering long distances, such as a long hallway, a "daisy-chain" configuration connects several Expanders in series with a 100 foot maximum distance between the Gateway and the first (and between each subsequent) Expander. In this example, the signal is easily ex- E2 E5

tended over 700 feet in one direction, and provides coverage

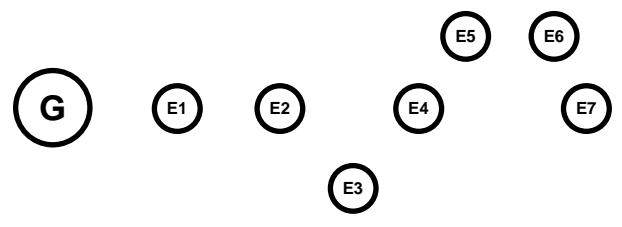

If a wireless lock along the above daisy-chain is unreachable, Expanders can be moved as required (in the example below, Expanders E3 , E5 and E6 were relocated to allow the wireless signal to reach previously inaccessible locks).

The above are just 3 possible scenarios; in theory, endless installation configurations are possible.

Blue and White ID Cards

We recommend that when installing any model Gateway, a blue-colored " Gateway ID Card " (OI357) be completed, and when installing the AL-IME2-EXP Expander, a whitecolored " Expander ID Card " (OI388) be completed.

Gateway and Expander physical locations may easily be forgotten. These ID cards may prove to be very useful when replacing Gateways or Expanders, when using DL-Windows to select a particular Gateway or Expander to discover locks, or whenever an installed Gateway or Expander needs to be physically located.

MOUNTING INSTRUCTIONS

The AL-IME2-EXP rear housing must be mounted "up" as shown on the page 4 template; i.e. when the front housing is attached, its engraved Networx logo must be located at the lower right with the front housing positioned "up" in a conventional manner. (The unit contains internal antennas that must be positioned vertically). Horizontal "flat" mounting of the enclosure is to be specifically avoided. As stated previously, the AL-IME2-EXP Expander only requires connection to the 6VAC power transformer wires.

Mount as follows:

1. Insert a small flat-head screwdriver into the slots at the bottom and twist while applying inward pressure (see Fig. 1; insert the screwdriver closer to the edges of the unit, as shown in the Fig. 1 "inset" image).

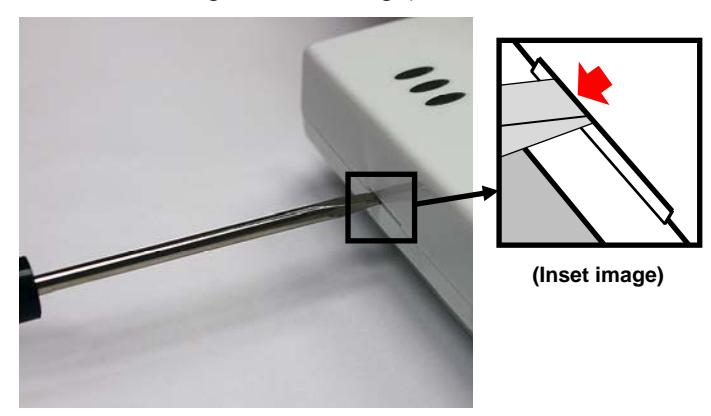

Fig. 1: To separate rear housing from cover (Inset: Insert flat-head screwdriver closer to the edges of the unit)

2. Using the rear housing as a mounting template, secure

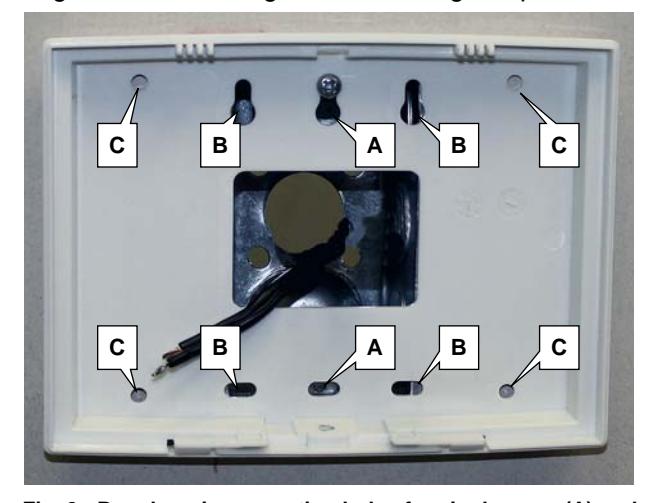

Fig. 2: Rear housing mounting holes for single-gang (A) and double-gang (B) electrical boxes, and four all-purpose holes (C)

the unit to a wall or other flat surface using the hardware provided (see page 4 for printed template).

As shown in Fig. 2, the rear housing includes two mounting holes for single-gang ( A ) and four mounting holes for double-gang ( B ) electrical utility boxes, as well as four all-purpose holes ( C ) for mounting to drywall or other surfaces (use minimum #6 screws suitable for the surface).

"EXPANDER GROUP" DIALS

Inside the Expander are 2 rotary dials (see Fig. 3). These dials are used to set the "Expander Group". All version 2 Gateways include an identical set of dials. Therefore, the dial values set on your Gateway MUST then match the dial values set on your AL-IME2-EXP Expanders. IMPORTANT: Each Gateway in your system MUST be set to a different "Expander Group" value along with its associated Expanders. The "Expander Group" dial setting determines which Expanders are associated with which Gateway, thus preventing Gateways from discovering unintended Expanders.

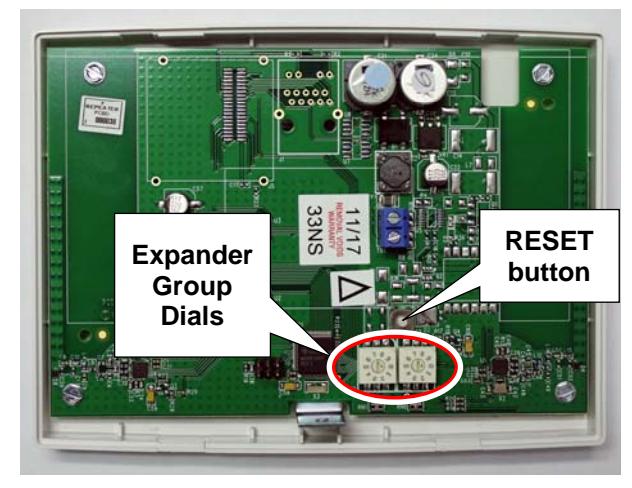

Fig. 3: "RESET" button and two "Expander Group dials" Be sure to orient the Expander with the RESET button ABOVE the dials as shown above to ensure proper Group setting!

Expander Group values of "00" through "99" are valid selections.

IMPORTANT: The small "selection arrow" on each dial must be pointing directly to the desired Group value. In Fig. 4 (below), the Group value is set to "50". Use a small flathead screwdriver to turn the dials and make the selections. Be sure to orient the Expander as shown above with the RE-SET button ABOVE the dials to ensure proper Group setting!

Fig. 4. Example: The above Expander Group dials are set to "50"

POWER UP

Connect the 6VAC power transformer wires (non-polarized). Upon power up:

Red LED solid (momentarily)
Yellow LED blinks (counting out "Expander Group" dial setting).

Note: Zero = No blink

Yellow LED solid + green LED flickering rapidly

Next, reset the Expander as follows:

Reset the Expander

IMPORTANT: Before securing the Expander housing cover, <u>ALWAYS</u> reset the Expander memory, even if the Expander is new "out of the box" and/or has never been used previously.

After initial power up, press and hold the "RESET" button (see below for location); continue to hold the button until the red light turns on solid. Now, release the button and the green light will flicker rapidly.

This "resetting" of the Expander clears all memory and ensures that any previous data is cleared from the unit.

Note: Resetting the Expander also re-writes the "Expander Group" dial setting into the Expander memory.

EXPANDER LED INDICATIONS

Yellow	On Power up, displays "Expander Group" dial setting (in two sequences)
Yellow	Receiver On (normal operation)
Red	Transmitter on
Green	(Expander Status)
	Not configured - Rapid blinking / flickering
	Idle / configured - 1 blink per second
	Lock Communication Fail - 2 blinks (continuously)
	Expander Communication Fail - 4 blinks (continuously)

CLOSE HOUSING COVER

Close the housing cover by first engaging the hooks at the top, then snapping the bottom together. Secure the cover with the Bottom Screw provided as shown in Fig. 5.

Fig. 5: Bottom Screw

Congratulations! You're finished! Now go to the DL-WINDOWS™ for Networx™ V5 USER'S GUIDE (OI383) for instructions about discovering your Expanders from DL-Windows.

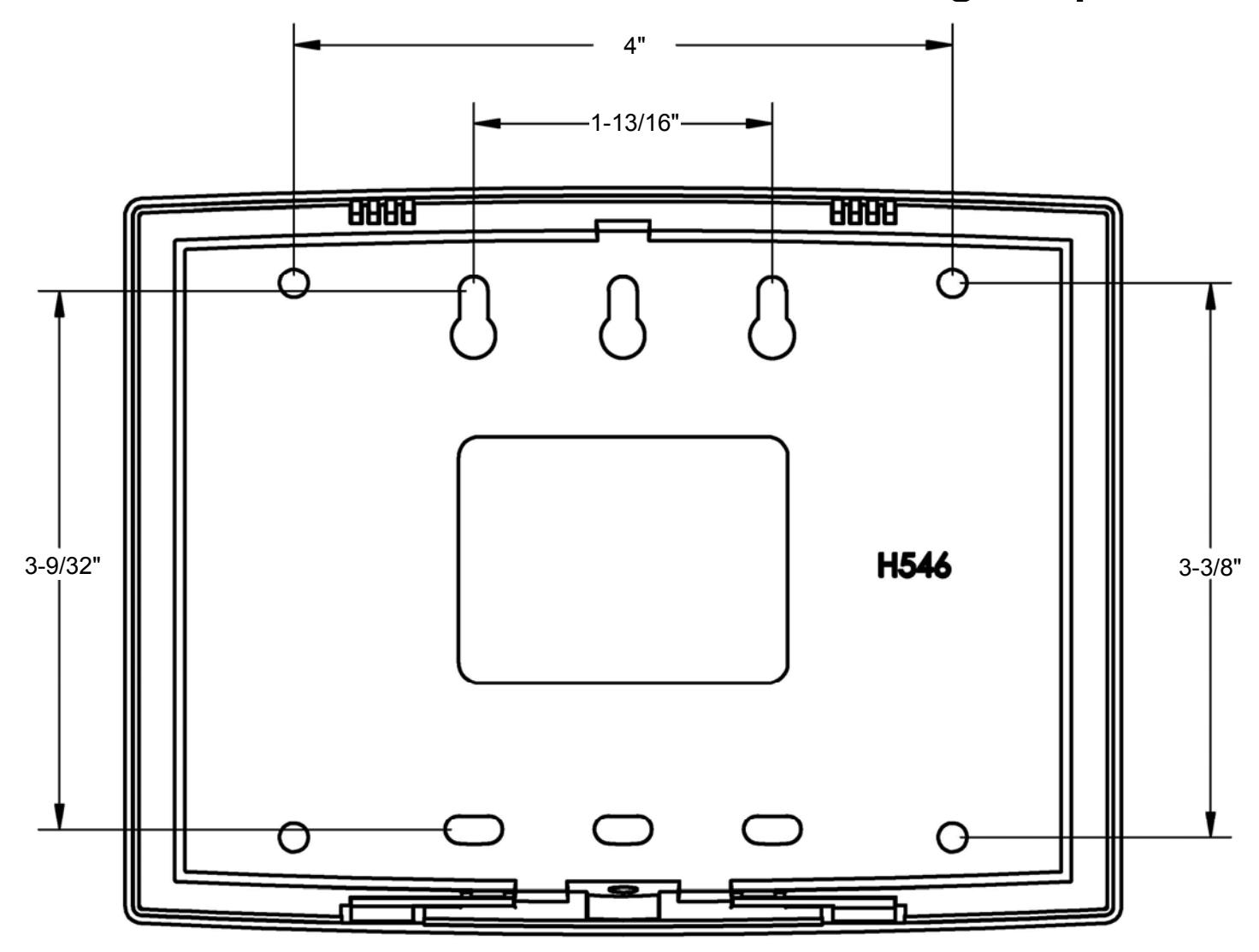

AL-IME2-POE and AL-IME2-EXP Mounting Template
