AL-IM2-80211 "Wireless / Wired" Gateway Installation Instructions

345 Bayview Avenue, Amityville, New York 11701 For Sales and Repairs 1-800-ALA-LOCK For Technical Service 1-800-645-9440 or visit us at http://tech.napcosecurity.com/ (Note: Technical Service is for security professionals only) Publicly traded on NASDAQ Symbol: NSSC

OVERVIEW

The AL-IM2-80211 is a "Wireless / Wired" Gateway device used within the Trilogy Networx™ wireless system. Installation is simple, with the AL-IM2-80211 only requiring temporary access to one RJ-45 Ethernet network cable and connection to an AC outlet.

Version 2

The AL-IM2-80211 "version 2" Gateways (notice the " 2 " in the model name) are the next generation of Networx Gateways. The "version 2" models are virtually the same as the original "version 1" Gateways, but have the added ability to expand your system with up to 7 Expanders (model AL-IME2-EXP Expanders cannot communicate with older "non-version 2" Gateways).

Note: Version 2 Gateways CAN be mixed into an existing system that includes older "non-version 2" Gateways.

IMPORTANT: DL-Windows version 5.4.2 or later is required to support version 2 Gateways and Expanders.

The AL-IM2-80211 Gateway is compatible with Alarm Lock and Continental Access products. Refer to the documentation supplied with your software for integration details.

Blue ID Card

We strongly recommend that when installing any model Gateway, a blue-colored "Gateway ID Card" (OI357) be completed. Gateway physical locations may easily be forgotten. These ID cards may prove very useful when replacing Gateways, when selecting a particular Gateway to use to discover locks, or whenever an installed Gateway needs to be physically located.

AL-IM2-80211 SPECIFICATIONS WIRELESS SPECIFICATIONS

Wireless Standards: IEEE 802.11b; 802.11g Frequency Range: 2.412 - 2.484 GHz Output Power: 14dBm + 1.5dBm/-1.0dBm

Maximum Receive Level: -10dBm (with PER < 8%) Data Rates With Automatic Fallback: 54Mbps - 1Mbps

Modulation Techniques: OFDM, DSSS, CCK, DQPSK, DBPSK, 64 QAM, 16 QAM

SECURITY

SIEEE 802.11 - PSK with AES Encryption 128-bit Encryption: 128-bit AES Rijndael encryption

NETWORK RANGE

Gateway / Expander to Locks: Clear field range 500'. Typical indoor range: Networx 75-175'; ArchiTech Networx: 50-125'.

Gateway / Expander to Expander: Clear field range 500'. Typical indoor range: 75-175'. Note: Actual range varies with building construction.

AL RADIO LINK

900 MHz GFSK 50 Channels 10mW power output

POWER - Provided by UL Listed Class 2 Transformer Peak Supply Current: 650mA Input Voltage: 5 - 6VAC

AVERAGE POWER CONSUMPTION

1300mW (WLAN mode; maximum data rate) 300mW (WLAN mode; idle) 750mW (Ethernet Mode)

ENVIRONMENTAL

Operating Temperature: -20˚ to 60˚C (-4˚ to 140˚F) Storage Temperature: -40˚ to 85˚C (-40˚ to 185˚F)

PHYSICAL

Enclosure Size: 4.5"H x 6.0"W x 1.94"D

Weight: 0.5lbs.

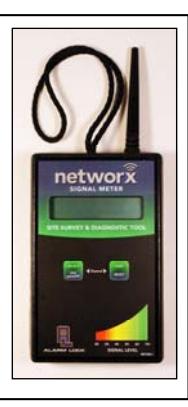

The AL-NSM Networx Signal Meter tool can help you perform a site survey test of the premises to find the optimum location for Gateways relative to Networx locks; as well as determine the optimum number of Gateways (or Expanders) needed for signal area coverage. See WI2092 or speak to your Alarm Lock sales representative for more information. TIP

GATEWAY LOCATION GUIDELINES

Before selecting a final mounting location for your Gateway, the following must be taken into consideration:

Gateways should be located within 175 feet (radially) from the intended wireless lock locations
- Open areas will increase range while concrete building construction, walls, ceilings and narrow corridors will decrease range
- ArchiTech series locks generally have shorter range to/from a Gateway
Generally, the Gateway should be within approximately 75 feet (radially) from an AL-IME2-EXP Expander (see WI2156)
Select a location that allows access to an RJ-45 network Ethernet cable connection (temporarily)
- Mount Gateway within acceptable range of wireless router or wireless access point
Gateways should be mounted in elevated areas; however mounting in a drop ceiling can adversely affect signal strength
- Preferred mounting position = 6 to 12" below standard 8-9 foot ceiling
Gateways must be mounted vertically; horizontal "flat" mounting should be specifically avoided
Although wood and wallboard construction can have little effect upon signal strength, concrete or brick can reduce signal strength by up to 35%. Steelreinforced concrete or metal lath and plaster can reduce signal strength as much as 90%!
Do NOT mount close to electrical wiring or other metal obstructions such as pipes or conduits
Installing in computer closets or server rooms can negatively impact signal strength

Helpful Tips

In difficult installations wherein signal problems exist, the use of (multiple) AL-IME2-EXP Expanders throughout the premises is recommended. AL-IME2-EXP Expanders extend the coverage area of version 2 Gateways, allowing control of up to its rated maximum of 63 locks. Up to 7 Expanders can be added to one version 2 Gateway. For more information, see WI2156.
We recommend obtaining or creating a layout of your intended system identifying all proposed installation locations, also noting building construction materials to assist in determining optimal Gateway installation locations

IMPORTANT: If you plan to use AL-IME2-EXP Expanders with your Gateway, be sure to read the " EXPANDER GROUP" DIALS section on page 4 before powering your Gateway.

The above guidelines and tips should be followed for each additional Gateway added to the system.

MOUNTING INSTRUCTIONS

The AL-IM2-80211 rear housing must be mounted "up" as shown on the page 7 template; i.e. when the front housing is attached, its engraved Networx logo must be located at the lower right with the front housing positioned "up" in a conventional manner (the unit contains internal antennas that must be positioned vertically). Horizontal "flat" mounting of the enclosure is to be specifically avoided.

Mount as follows:

1. Insert a small flat-head screwdriver into the slots at the bottom and twist while applying inward pressure (see Fig. 1; insert the screwdriver closer to the edges of the unit, as shown in the Fig. 1 "inset" image).

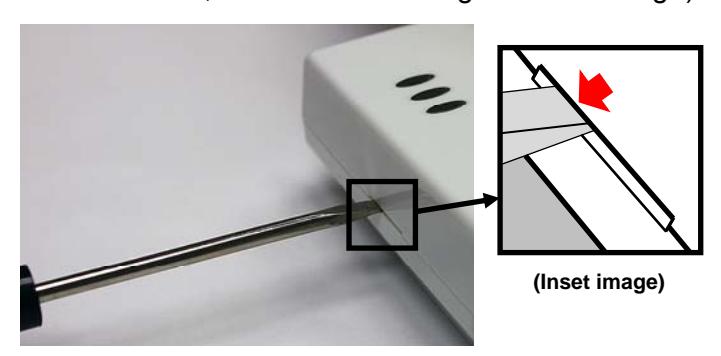

Fig. 1: To separate rear housing from cover (Inset: Insert flat-head screwdriver closer to the edges of the unit)

2. Using the rear housing as a mounting template, secure the unit to a wall or other flat surface using the hardware provided (see page 7 for printed template).

Shown in Fig. 2, the rear housing includes two mounting holes for single-gang ( A ) and four mounting holes for double-gang ( B ) electrical utility boxes, as well as four all-purpose holes ( C ) for mounting to drywall or other surfaces (use minimum #6 screws suitable for the surface).

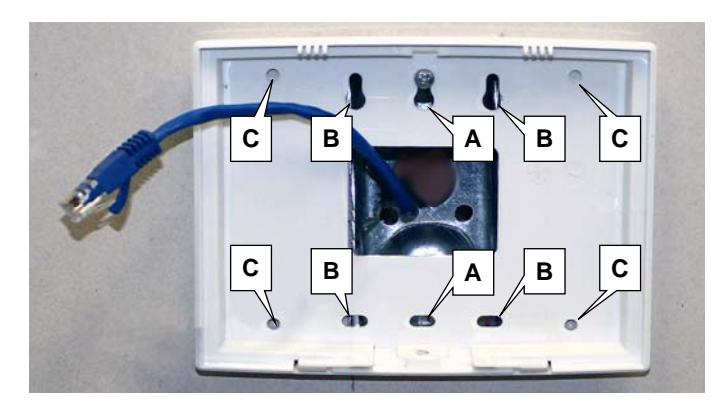

Fig. 2: Rear housing mounting holes for single-gang (A) and double-gang (B) electrical boxes, and four all-purpose holes (C)

CONNECTING TO A NETWORK

The AL-IM2-80211 Gateway can be used wired or wirelessly. However, "out of the box", the Gateway is configured for a wired connection only. (See section Wireless (80211) Configuration below for configuring wireless connectivity). Connect RJ-45 cable to the network, and apply power via the class 2 VAC transformer. Upon connection, the Gateway automatically begins searching for a valid IP address from the network (see the POWER UP section on page 4).

IMPORTANT: Gateways can ONLY be discovered by DL-Windows when the PC running DL-Windows is on the same subnet as the Gateway. Refer to Subnet section for more information.

The following sub-sections refer to the DL-Windows software, therefore the following terminology may be better understood by referencing OI383 (included with your Gateway).

Static IP Addresses

We recommend using static IP addresses for each Gateway:

DL-Windows software performs faster; no wasted time re-locating Gateways that have had their IP addresses changed by DHCP
Static IP addresses allow operation across subnets in large corporate networks (such as those that exist between buildings)
Static IP addresses allow Emergency Commands (such as "Emergency Lockdown") to perform properly

Contact the Network Administrator

If you know the Gateway will be installed on a large corporate network that includes multiple subnets, we recommend you start by contacting the corporate network administrator and request the following:

IP Address An address for each Alarm Lock Gateway device
Subnet Mask Filtering data ("mask bits") as required by the aforementioned IP address
Default Gateway The address of the physical device, such as a router, for the current subnet to which DL-Windows will be connected
Wireless Network Configuration The wireless network security settings, authentication, encryption, etc.

Subnets

To improve security and processing performance, corporate networks are often divided into interconnected but separate "subnet" segments. The network administrator may decide to use routing tables or may specify blocks of addresses through which the two subnets

can freely communicate in both directions. However, if the two subnets cannot freely communicate as in the illustration below, in order to communicate to the Gate-

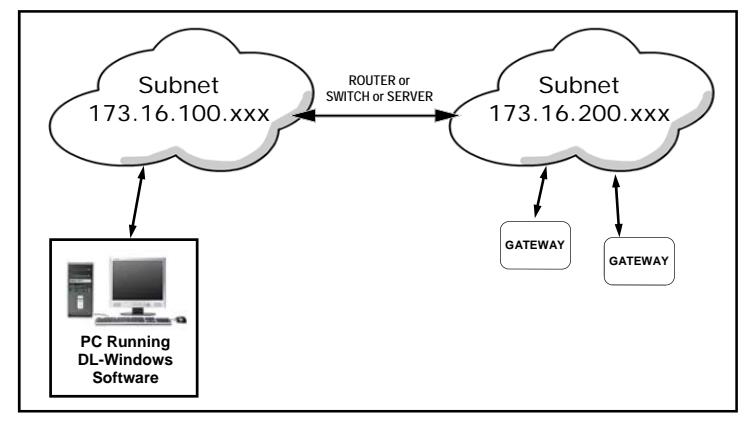

Fig. 3: Gateways on different subnets within a network

way across the subnet, follow the steps below:

Connect the Gateway to local network (DL-Windows on same subnet); Gateway receives valid IP address
Using DL-Windows, Discover and add the Gateway to an Account
Configure Gateway with the static IP address information of the subnet you plan to communicate with
Disconnect from the local network remove power from the Gateway (Gateway will retain static IP information)
Re-connect / re-apply power in the desired location / subnet

Wireless (80211) Configuration

DL-Windows cannot Discover a Gateway wirelessly; it must first be Discovered via a wired connection, then, you can configure the Gateway to be wireless. Similar to the steps above (in the Subnet section) follow the steps below:

Connect the Gateway to local network (DL-Windows on same network as wireless router or wireless access point); Gateway receives valid IP address
Using DL-Windows, Discover and add the Gateway to an Account
Configure Gateway with the proper wireless network security settings, authentication and encryption
Disconnect from the local network Gateway will retain wireless information
If Gateway is moved to a new location, simply reapply power; the Gateway will now communicate wirelessly to your network!

"EXPANDER GROUP" DIALS

Inside the Gateway are 2 rotary dials (see Fig. 4). These dials are used to set the "Expander Group" when you wish to add AL-IME2-EXP Expanders in your system (all AL-IME2-EXP Expanders include an identical set of dials). Therefore, the dial values set on your Gateway MUST then match the dial values set on your AL-IME2-EXP Expanders. IMPORTANT: Each Gateway in your system MUST be set to a different "Expander Group" value along with its associated Expanders. The "Expander Group" dial setting determines which Expanders are associated with which Gateway, thus preventing Gateways from discovering unintended Expanders. See WI2156 for more information about installing AL-IME2-EXP Expanders in your system.

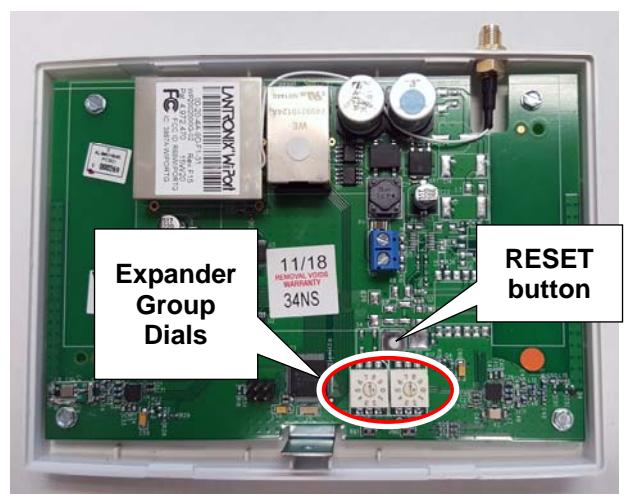

Fig. 4: "RESET" button and two "Expander Group dials"

Expander Group values of "00" through "99" are valid selections.

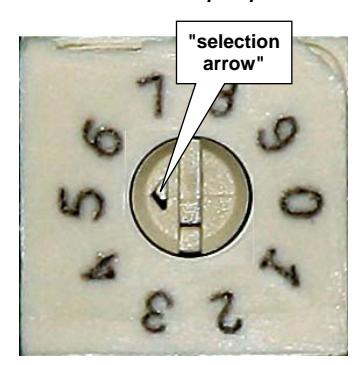

IMPORTANT: The small "selection arrow" on each dial must be pointing directly to the desired Group value. In Fig. 5 (below), the Group value is set to "50". Use a small flat-head screwdriver to turn the dials and make the selections. Be sure to orient the Gateway as shown above with the RESET button ABOVE the dials to ensure proper Group setting!

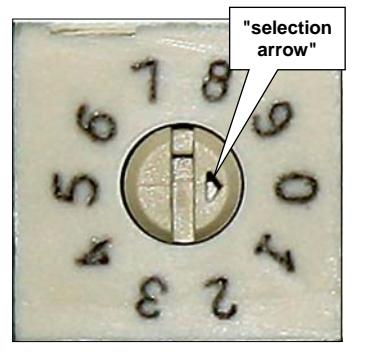

Fig. 5. Example: The above Expander Group dials are set to "50"

POWER UP

Connect RJ-45 Ethernet cable to the Gateway. THEN , apply power to the Gateway using the supplied transformer. Upon connection, the Gateway automatically begins searching for a valid IP address from the network.

Valid IP Address - LED Indication

Upon power up, watch the 3 LEDs on the Gateway cover carefully to determine if the Gateway receives a valid IP address. Be patient; this process could take up to 1 minute. After applying power, the Red LED will blink slowly while searching for an IP address.

If the GREEN LED turns on solid for 3 seconds, the Gateway received a valid IP address from the network! The Yellow LED will turn on solid and the Green LED will flicker indicating the Gateway is ready for Discovery by DL-Windows (not configured).
If the RED LED turns on solid for 3 seconds (after 3 attempts to receive an IP address from the

network), the Gateway was unable to receive a valid IP address from the network. However, the Yellow LED will still turn on solid and the Green LED will still flicker. Do not confuse this with the above valid IP address indication .

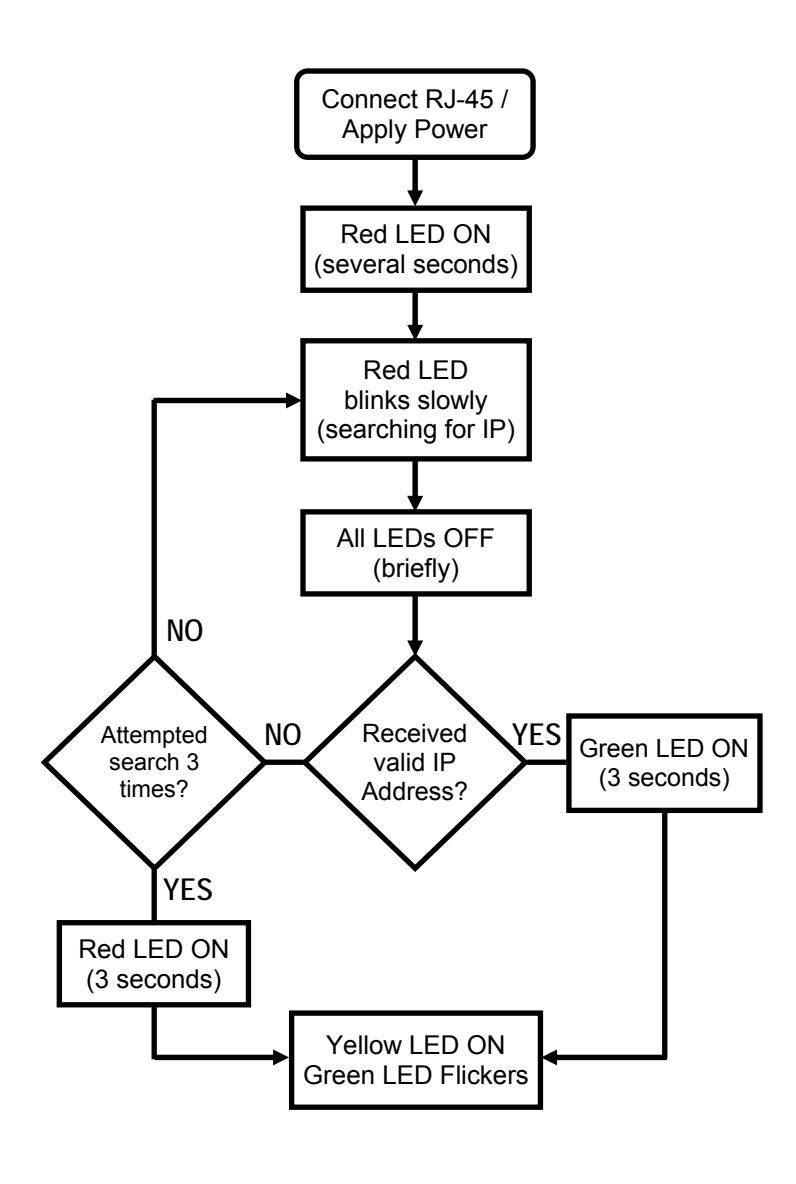

Refer to the flowchart for a visual representation of the above process:

Next, reset the Gateway as follows:

Reset the Gateway

IMPORTANT: Before securing the Gateway housing cover, ALWAYS reset the Gateway memory, even if the Gateway is new "out of the box" and/or has never been used previously.

After initial power up, press and hold the RESET button (see below for location); continue to hold the button until the red LED turns on solid. Now, release the button and the green LED will flicker rapidly.

Always reset the Gateway for new installations; you can also reset the Gateway any time after the Gateway is powered. Two levels of reset exist, a "Normal" reset and "Factory" reset, as follows:

Normal Reset: Clears Gateway memory and user data allowing for re-discovery by DL-Windows. Press and hold the RESET button until the Red LED turns on solid, then release the button and the Green LED will start to flicker rapidly.

Factory Reset: Clears Gateway memory, user data and configuration data (such as static IP information), thus returning the unit to its original factory settings. Press and hold the RESET button, the Red LED turns on solid; keep holding until the Yellow LED also turns on solid. Release the button; the Yellow LED will remain on solid, and the Green LED will start to flicker rapidly, indicating a full factory reset.

Note: Resetting the Gateway (Normal or Factory) does NOT cause the Gateway to search for a new IP address. After a reset, power cycle the Gateway to initiate a new IP search .

GATEWAY LED INDICATIONS

Yellow	Receiver On (normal operation)
Red	Transmitter On
Green	(Gateway Status)
	Not configured - Rapid blinking / flickering
	Idle / configured - 1 blink per second
	Lock Communication Fail - 2 blinks (continuously)
	Expander Communication Fail - 4 blinks (continuously)

CLOSE HOUSING COVER

Close the housing cover by first engaging the hooks at the top, then snapping the bottom together. Secure the cover with the Bottom Screw provided as shown in Fig. 6.

Fig. 6: Bottom Screw

Congratulations! You're finished! Now go to the DL-WINDOWS™ for Networx™ V5 USER'S GUIDE (OI383) for instructions about discovering your Gateway from DL-Windows.

NOTES

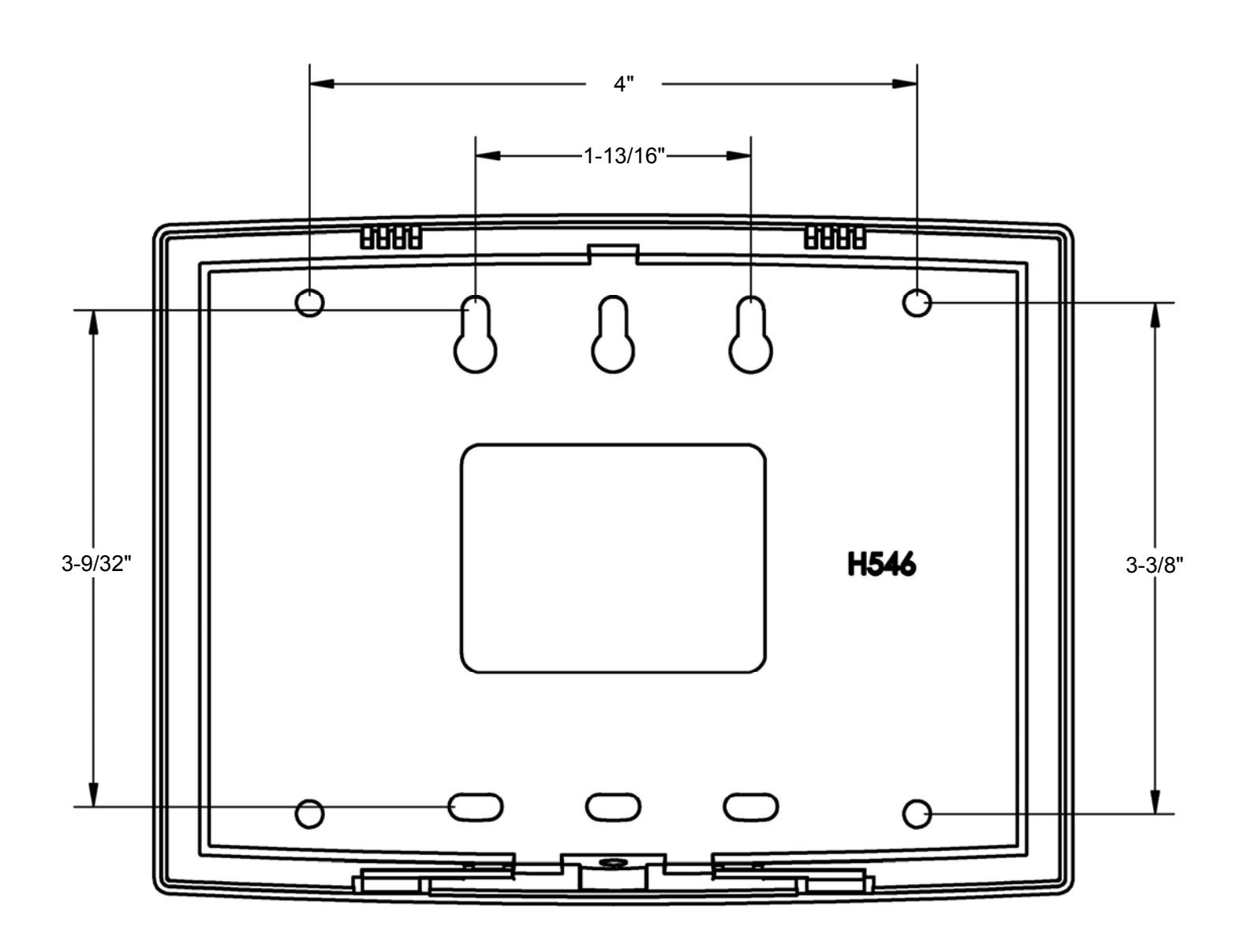

AL-IM2-80211 Mounting Template
