5 Series EU / EL Solenoid Mortise Lock Body INSTALLATION INSTRUCTIONS

WI2351LF 4/19

Overview

The 5EU / 5EL Series is an electrified mortise lock body that fits a standard mortise prep. The lock is available in two models, either " EU " or " EL ":

• EU is electrically unlocked / fail secure, i.e. power is required to unlock. Therefore, if power fails, the lock will remain in a secure locked state.
• EL is electrically locked / fail safe, i.e. power is required to remain locked. Therefore, if power fails, the unit will change to an unsecured / unlocked state, allowing safe egress through the protected door.

The lock body is powered from a 12VDC or 24VDC power supply or control panel, and the body provides outputs for up to 3 separate sensors: A key position sensor, a request to exit sensor, and a latch thrown/ retracted sensor.

Specifications

Weight: 2.5lbs
Dimensions
Depth with face plate: 4-9/16"
Height without face plate: 5-15/16"
Height with face plate: 8"
Width without face plate: 1"
Width with face plate: 1-1/4"

Current

12V system: 390mA (max), 185mA (typical)
24V system: 360mA (max), 115mA (typical)

Temperature

Operating:20°C to 60°C (-4°F to 140°F)
Storage:40°C to 85°C (-40°F to 185°F)

Wire Gauge Chart

The maximum length of each power wire based on gauge (for either 12V or 24V power):

• #22 AWG 150 feet maximum per wire
• #20 AWG 250 feet maximum per wire
• #18 AWG 400 feet maximum per wire
• #16 AWG 600 feet maximum per wire

AC to DC Rectifier (optional)

Important: If you intend to use 12VAC or 24VAC to power the lock body, you must purchase and install an AC to DC rectifier (model E1901) before powering the lock body.

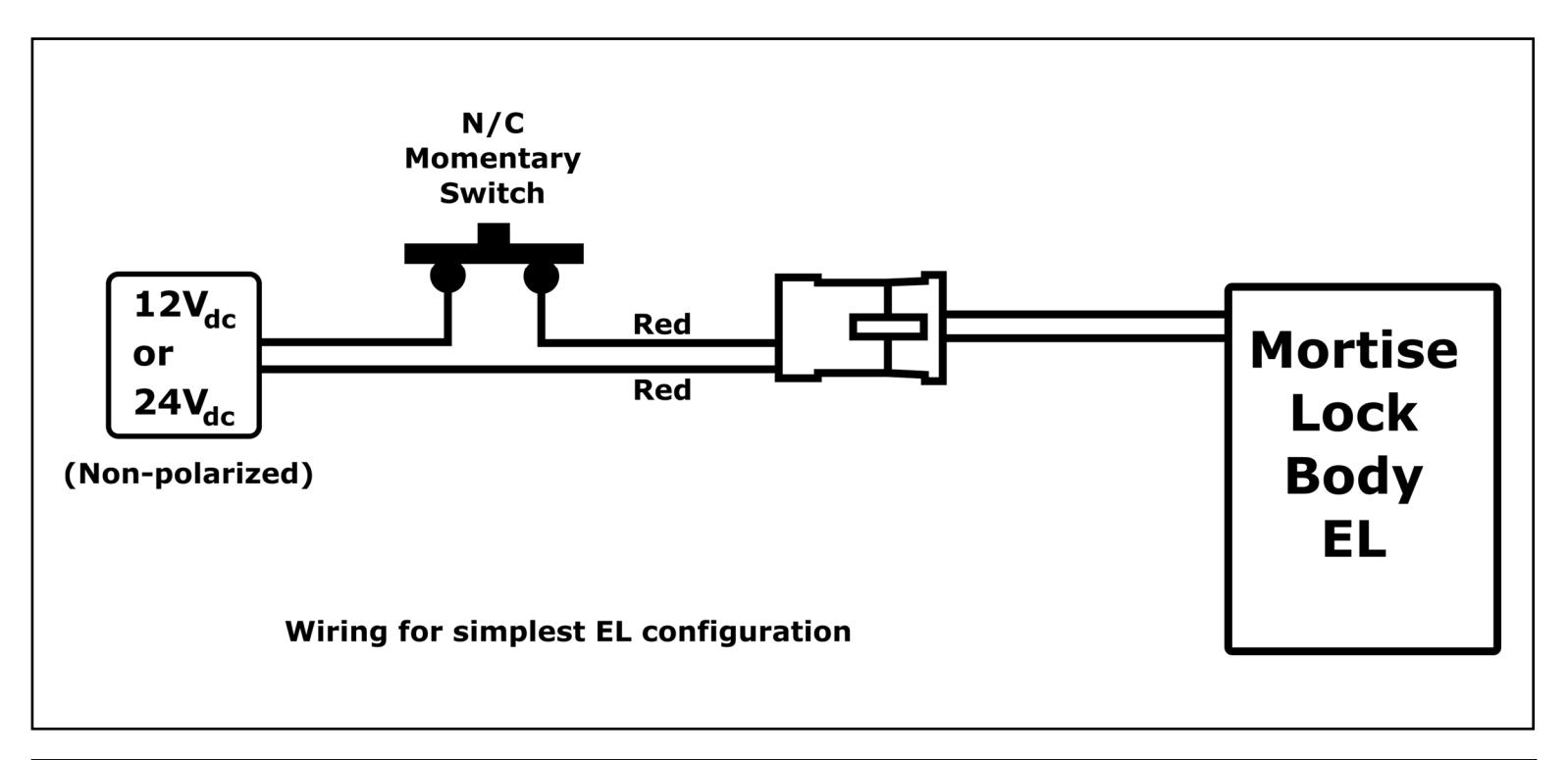

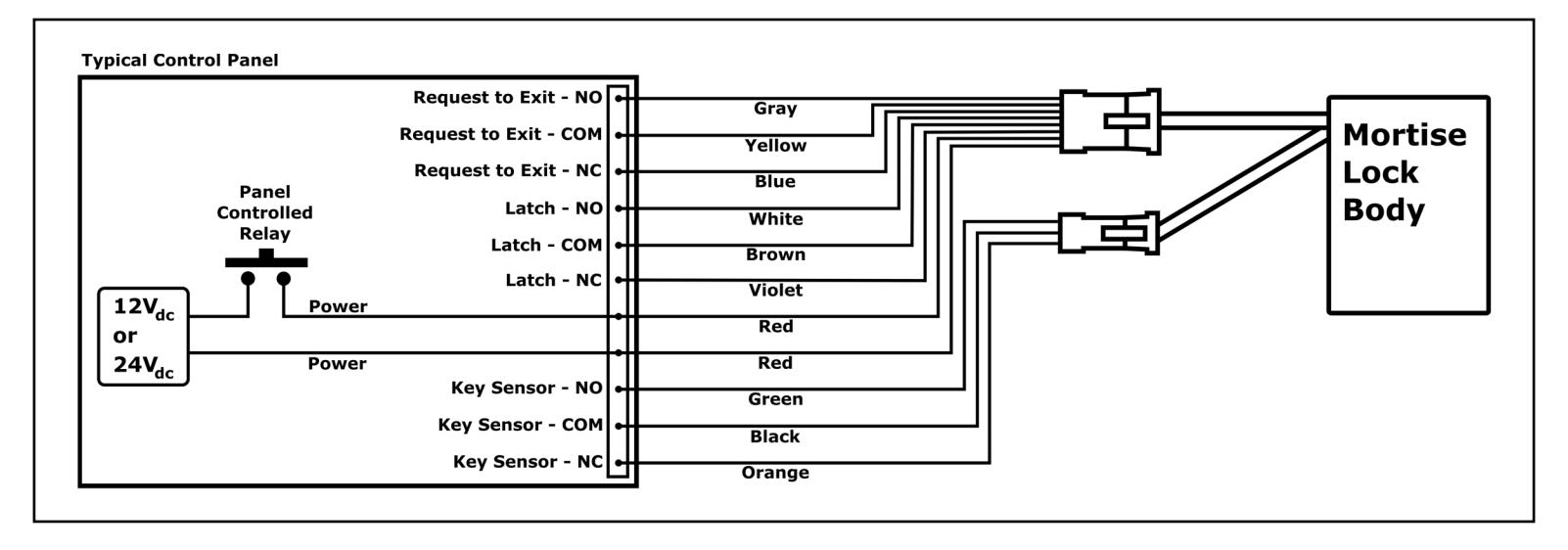

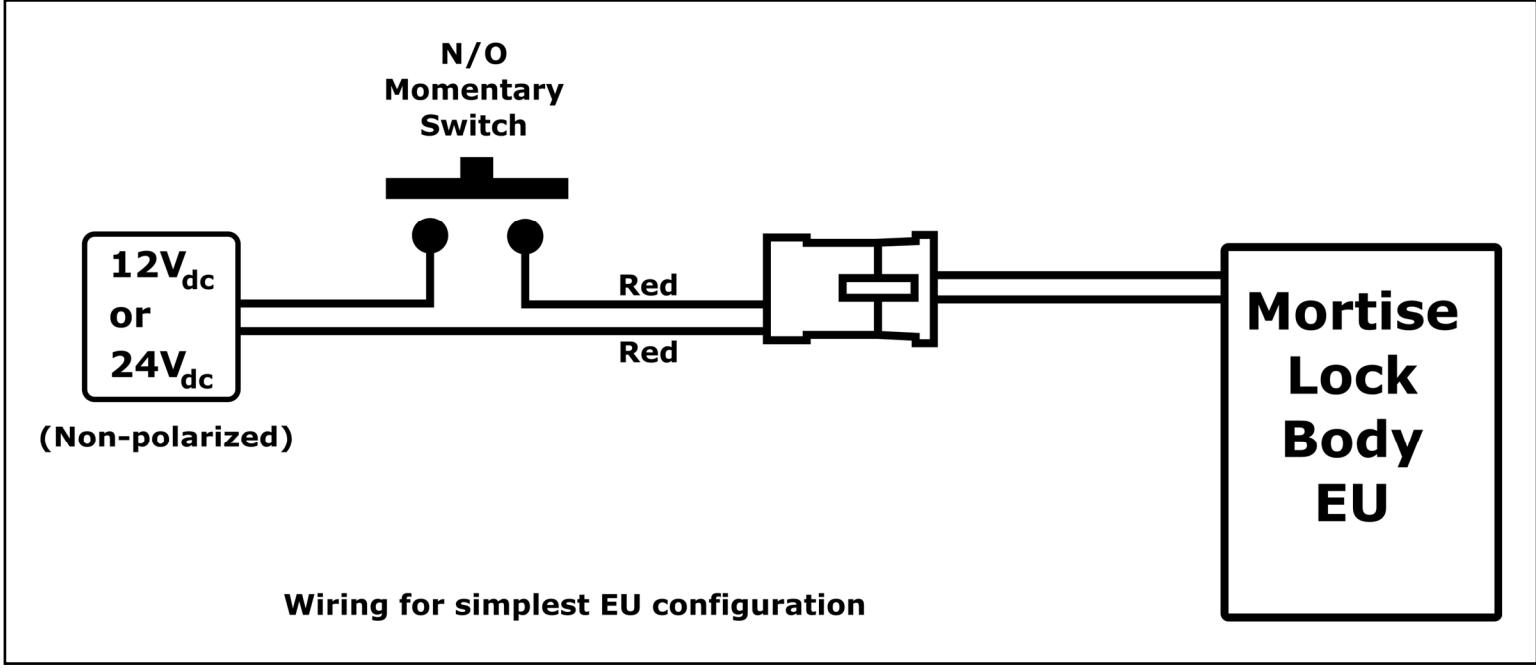

Wiring Diagrams

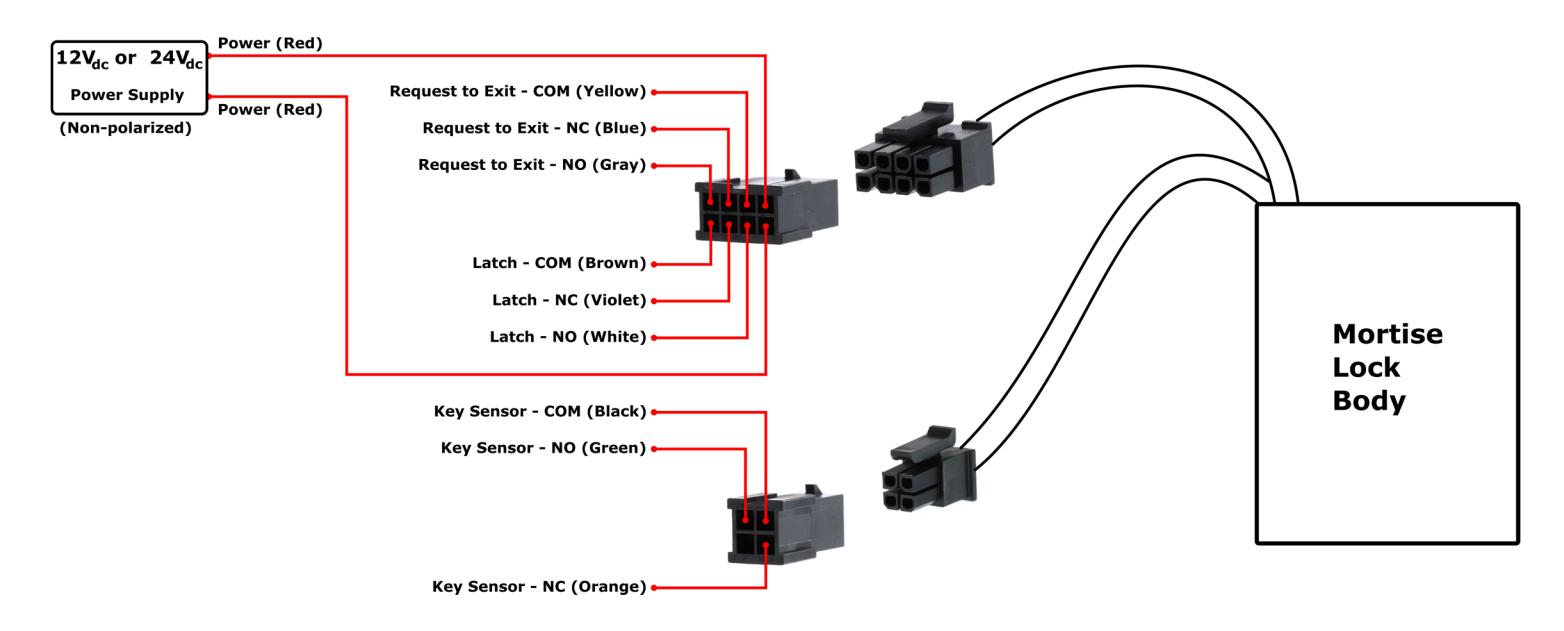

See illustrations, below and on next page. The lock body is equipped with two plugs routed from the back of the unit. One plug contains eight contacts, the other contains four. Both plugs are inserted into receptacles with flying leads that the installer can use to wire the lock. The eight-contact plug will always be used; the plug with four contacts contains the optional key position sensor connections, and therefore is only used when needed.

NOTES
