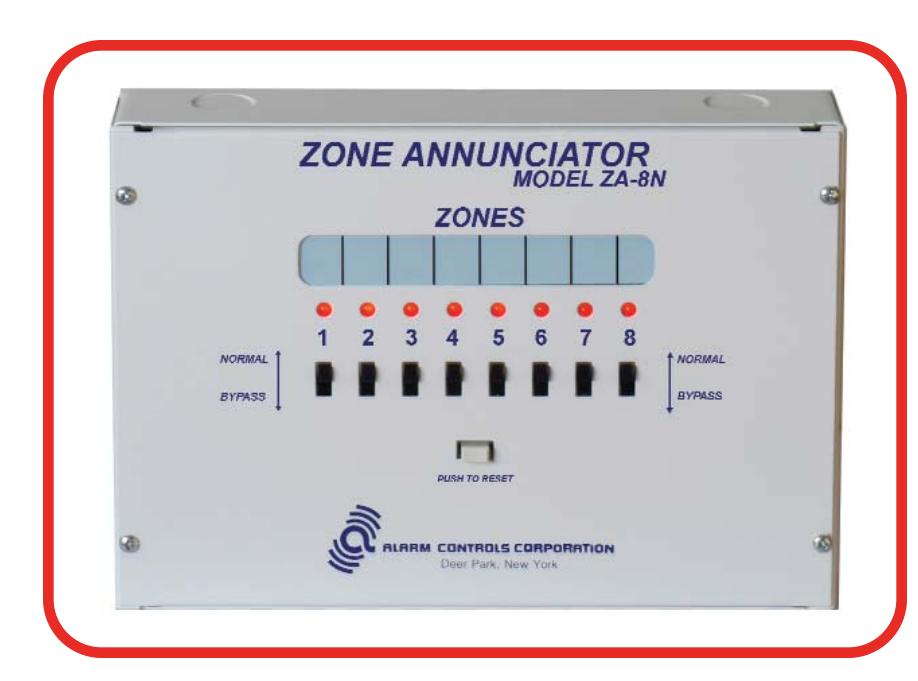

MODEL ZA-8N

EIGHT ZONE ANNUNCIATOR FOR ALL MONITORING APPLICATIONS

OUTSTANDING FEATURES

• INDEPENDENT ZONE ANNUNCIATION WITH ZONE STATUS INDICATION
• EIGHT RED LEDS INDICATE ZONE STATUS
• SELECTABLE NORMALLY-OPEN, NORMALLY-CLOSED, SUPERVISED LOOPS
• MEMORY FOR EACH ZONE WITH INDIVIDUAL ZONE OUTPUTS
• INDIVIDUAL ZONE BYPASS SWITCHES WITH BYPASS DISABLE FEATURE
• INDIVIDUAL ZONE OUTPUTS TO DRIVE RELAYS OR STROBE LAMPS
• REMOTE ZONE ANNUNCIATION CAPABILITY
• ADJUSTABLE DOOR AJAR TIMER
• OPERATES ON 12 VOLTS AC OR DC

ZONE OUTPUTS THE ZONE OUTPUTS ARE LIMITED TO 100 MA / ZONE CAN DRIVE STROBE LAMPS AND RELAYS 2 AMP POWER FUSE REMOTE PLATE CONNECTOR USE TO CONNECT ZP-8AN REMOTE PLATE TO ZA-8N THIS OUTPUT IS LIMITED TO TWO ZP-8AN REMOTE PLATES LED ZONE INDICATORS OFF ZONE NORMAL ON ZONE VIOLATED FLASHING ZONE BYPASSED BUZZER OFF - ON JUMPER ZONE RESET SWITCH LOOP SELECTOR SELECTS N/O, N/C OR SUPERVISED LOOPS DOOR AJAR POT ADJUSTS DOOR OPEN TIME FROM 1 SECOND TO 5 MINUTES DOOR AJAR TIMER JUMPER JUMPER TURNS TIMER ON OR OFF MODEL ZP-8AN REMOTE PLATE MODEL ZA-8N

SPECIFICATIONS

VOLTAGE INPUT: 12 VOLTS AC, USE 20 VA TRANSFORMER, 12 VOLTS DC, USE 1 AMP SUPPLY

MAXIMUM CURRENT: 140 MILLIAMPERES

ZONE OUTPUT CURRENT: 100 MILLIAMPERES PER ZONE

REMOTE OUTPUT CURRENT: 80 MILLIAMPERES

LOOPS: NORMALLY-OPEN, NORMALLY-CLOSED, SUPERVISED WITH 10K RESISTOR (SUPPLIED)

LOOP LENGTH: 1000 FEET TOTAL

DOOR AJAR TIME RANGE: ONE SECOND TO FIVE MINUTES

REMOTE ANNUNCIATOR OUTPUT: LIMITED TO TWO MODEL ZP-8AN REMOTE PLATES

REMOTE ANNUNCIATOR: MODEL ZP-8AN, EIGHT RED LEDS MOUNTED ON SINGLE GANG PLATE

WITH ZONE RESET AND BUZZER

CABINET SIZE: 10" W x 7" H x 2" D

ALARM CONTROLS CORPORATION

"QUALITY SECURITY EQUIPMENT SINCE 1971"

19 BRANDYWINE DRIVE, P.O. BOX 280, DEER PARK, NEW YORK 1 800 645-5538 631 586-4220 FAX 631 586-6500

EMAIL: INFO@ALARMCONTROLS.COM WWW.ALARMCONTROLS.COM

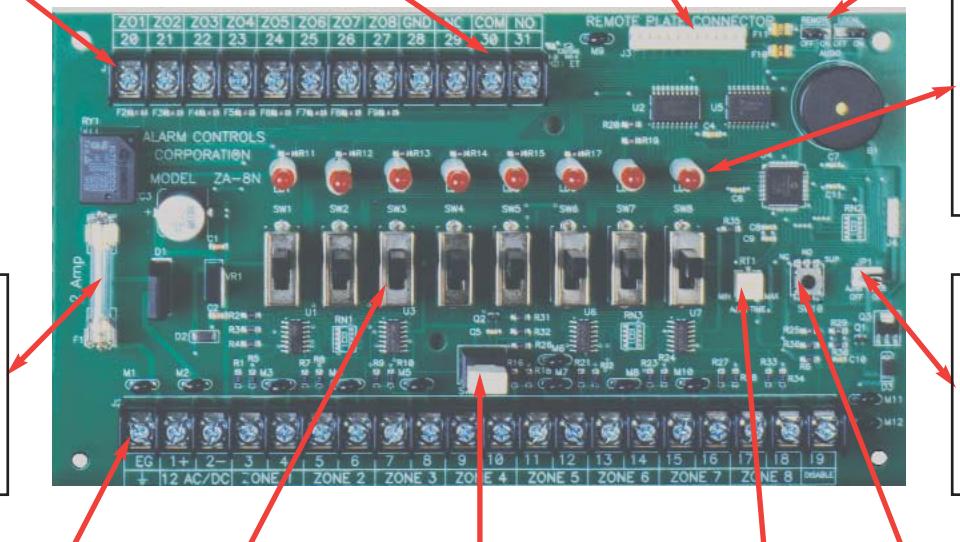

MODEL ZA-8N EIGHT ZONE ANNUNCIATOR

ZONE OUTPUTS

THE ZONE OUTPUTS ARE LIMITED TO 100 MA. / ZONE CAN DRIVE STROBE LAMPS AND RELAYS

COMMON RELAY OUTPUT

S.P.D.T. CONTACTS RATED 12A@28VDC OR 120 VAC

REMOTE PLATE CONNECTOR

USE TO CONNECT ZP-8AN REMOTE PLATE TO ZA-8N THIS OUTPUT IS LIMITED TO TWO ZP-8AN REMOTE PLATES

BUZZER OFF - ON JUMPER

TO DISABLE BUZZER MOVE JUMPER FROM ON TO OFF POSITION

2 AMP POWER FUSE REPLACE WITH 2 AMPERE SLOW BLOW FUSE P/N MDL-2

LED ZONE INDICATORS

OFF ZONE NORMAL ON ZONE VIOLATED FLASHING ZONE BYPASSED

DOOR AJAR TIMER JUMPER

TO ACTIVATE TIMER MOVE JUMPER TO ON POSITION

ZONE BYPASS SWITCHES

SHUNTS INDIVIDUAL ZONES

ZONE RESET SWITCH

RESETS ZONES THAT HAVE BEEN VOILATED

DOOR AJAR POT

ADJUSTS DOOR OPEN TIME FROM ONE SECOND TO FIVE MINUTES

LOOP SELECTOR SWITCH

SELECTS N/O, N/C OR SUPERVISED LOOPS

IMPORTANT

THE ZA-8N HAS EFFECTIVE LIGHTNING PROTECTION ONLY WHEN GROUNDED ACCORDING TO THE FOLLOWING INSTRUCTIONS:

CONNECT EG TERMINAL TO A COLD WATER PIPE WITH NOT LESS THAN 18GA. SOLID WIRE OR TWO CONDUCTOR 18 GA.STRANDED WIRE.

DO NOT GROUND TO A GAS PIPE OR THE BUILDINGS ELECTRICAL GROUND!

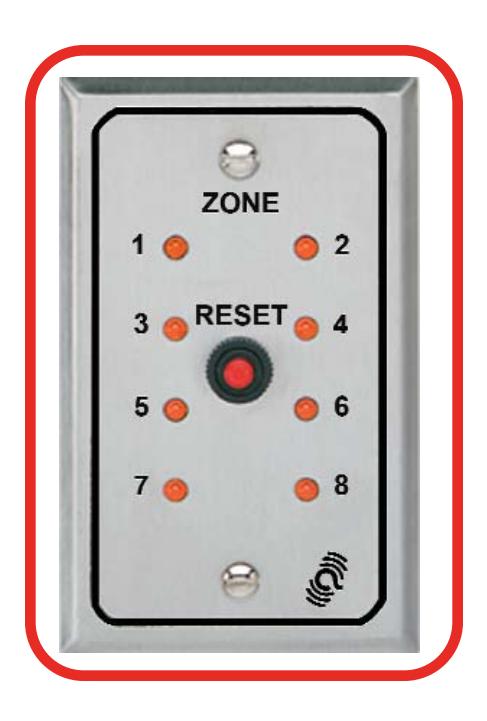

ZP-8AN REMOTE ANNUNCIATOR

THE ZA-8AN IS A SINGLE GANG STAINLESS STEEL WALLPLATE WITH EIGHT RED LEDS, REMOTE ZONE RESET BUTTON AND AUDIBLE BUZZER

THE ZP-8AN CONNECTS TO THE REMOTE PLATE CONNECTOR AND DISPLAYS ZONE STATUS

ALARM CONTROLS CORPORATION

19 BRANDYWINE DRIVE, DEER PARK, NY 11729 800 645-5538 WWW.ALARMCONTROLS.COM

INSTALLATION INSTRUCTIONS MODEL ZA-8N EIGHT ZONE ANNUNCIATOR

SPECIFICATIONS

VOLTAGE INPUT: 12 VOLTS AC, USE 20 VA TRANSFORMER, 12 VOLTS DC, USE 1 AMP. SUPPLY

MAXIMUM CURRENT: 140 MILLIAMPERES

10 K RES.

10 K RES.

10 K RES.

ZONE OUTPUT CURRENT: 100 MILLIAMPERES PER ZONE

REMOTE OUTPUT CURRENT: 80 MILLIAMPERES

LOOPS: NORMALLY-OPEN, NORMALLY-CLOSED, SUPERVISED WITH 10K RESISTOR (SUPPLIED)

LOOP LENGTH: 1000 FEET TOTAL EACH ZONE LOOP

DOOR AJAR TIMER RANGE: ONE SECOND TO FIVE MINUTES

REMOTE ANNUNCIATOR OUTPUT: LIMITED TO TWO MODEL ZP-8AN REMOTE PLATES

REMOTE ANNUNCIATOR: MODEL ZP-8AN, EIGHT RED LEDS MOUNTED ON SINGLE GANG WALLPLATE

WITH ZONE RESET AND BUZZER

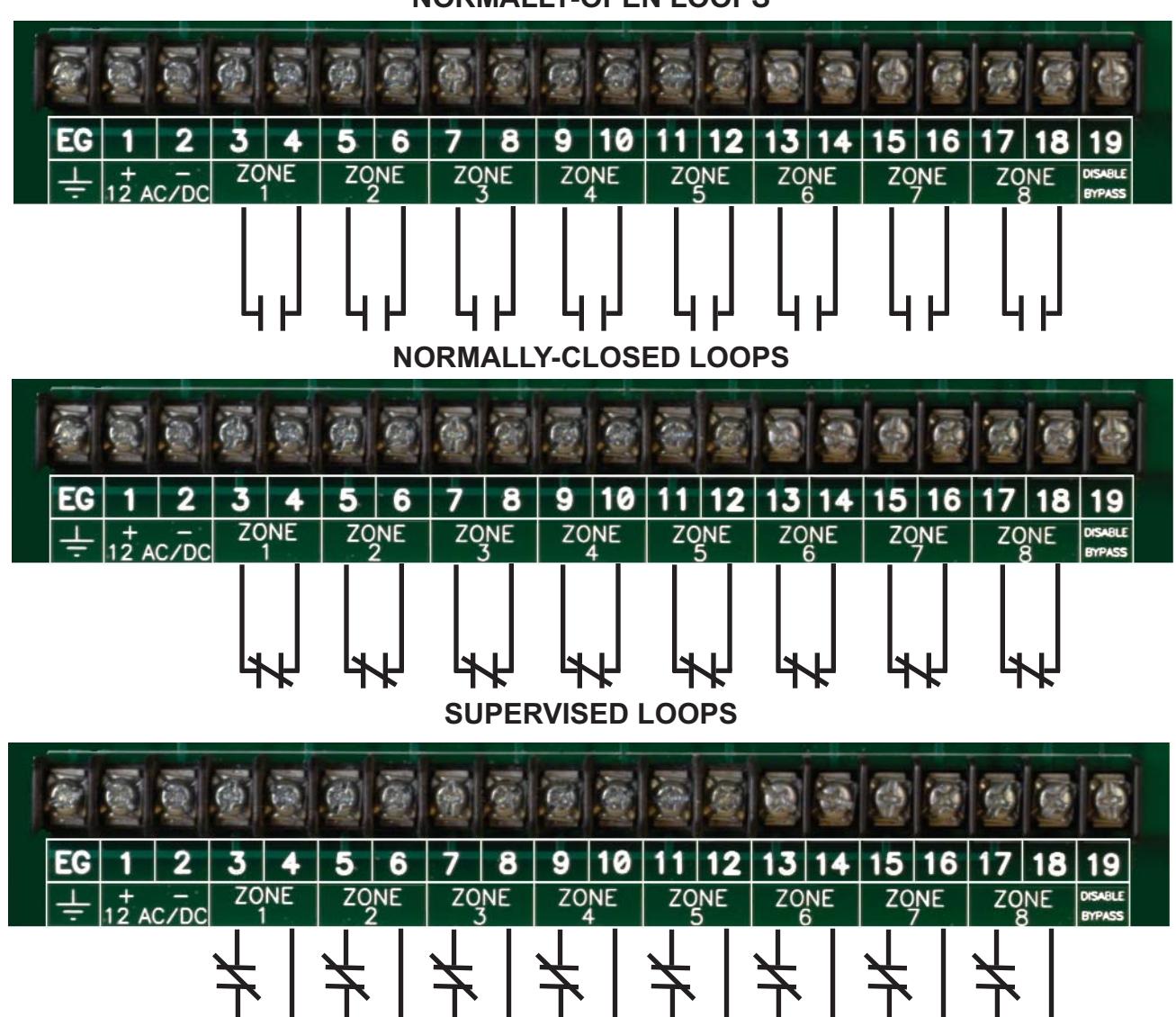

NORMALLY-OPEN LOOPS

DISABLE BYPASS FEATURE

10 K RES.

10 K RES.

10 K RES.

10 K RES.

10 K RES.

TO DISABLE ZONE BYPASSING CONNECT A S.P.S.T. SWITCH OR JUMPER TO TERMINALS 2 AND 19

MODEL ZP-18AN

FOR USE WITH MODEL ZA-8N

• SINGLE GANG STAINLESS STEEL PLATE
• EIGHT RED LEDS
• MOMENTARY ACTION RESET SWITCH

MODEL ZP-8A REMOTE PLATE ALLOWS THE REMOTE DISPLAY OF ZONE ANNUNCIATOR STATUS AND THE CAPABILITY OF REMOTE RESET

ALARM CONTROLS CORPORATION 19 BRANDYWINE DRIVE DEER PARK, NY 11729

1 631 586-4220 1 800 645-5538

WWW.ALARMCONTROLS.COM EMAIL INFO@ALARMCONTROLS.COM

ZP-18AN WIRING INSTRUCTIONS

THE ZP-18AN REMOTE ANNUNCIATOR PLATE PLUGS INTO A MALE CONNECTOR LABELED REMOTE PLATE ON THE ZA-8N ZONE ANNUNCIATOR.

CUT THE 12 COLORED LEADS 4" FROM THE CONNECTOR.

CONNECT ADDITIONAL FIELD WIRES TO THE ZP-18A AND THE ZA-8N AS REQUIRED. BE SURE THAT THE COLORS OF THE FIELD WIRES MATCH THE CONNECTIONS ON BOTH ENDS.

PLUG THE FEMALE CONNECTOR FROM THE ZP-18AN INTO THE CONNECTOR ON THE ZA-18AN.

THE BROWN WIRE ON THE CONNECTOR MUST BE ON THE LEFT!
