Alarm Controls Z Brackets Model AM3370C AM6370C Sell Sheet

Model AM3370C AM6370C

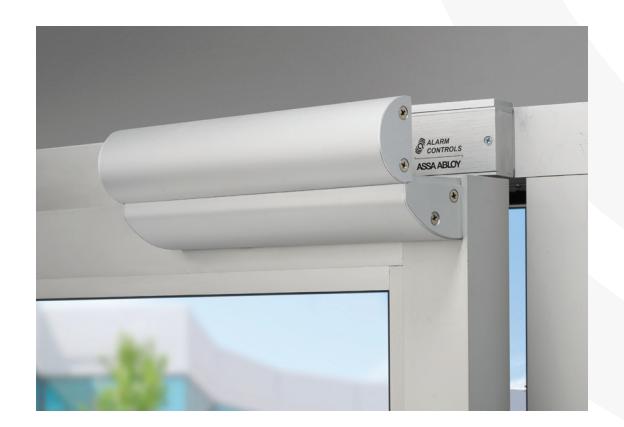

Z-Bracket with Integrated Dress-Up Cover for 600 & 1200 Series Single Magnetic Locks

Specifications

• · For use on in-swinging doors
• Anodized aluminum finish standard. Also available in Duranodic finish US40 (Dark Bronze) finish*
• Model AM3370C for magnetic lock models: 600S, 600L and 600LB

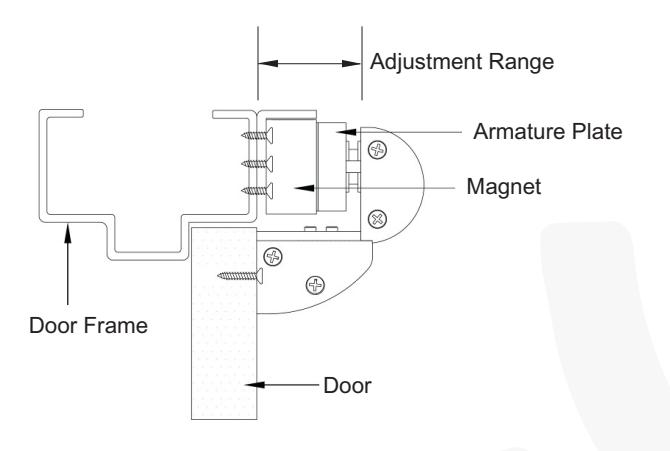

  • Adjustment range: 2" 2.75"
  • Bracket dimensions: 10"L x 3.5"H
• Model AM6370C for magnetic lock models: 1200S, 1200L and 1200LB
  • Adjustment range: 2.375" 3.5"
  • Bracket dimensions: 10.625"L x 4.25"H

*Contact Alarm Controls for lead times and minimum order quantities for non-standard finishes
