Alarm Controls Wall Plate Model RP-9SL Cutsheet

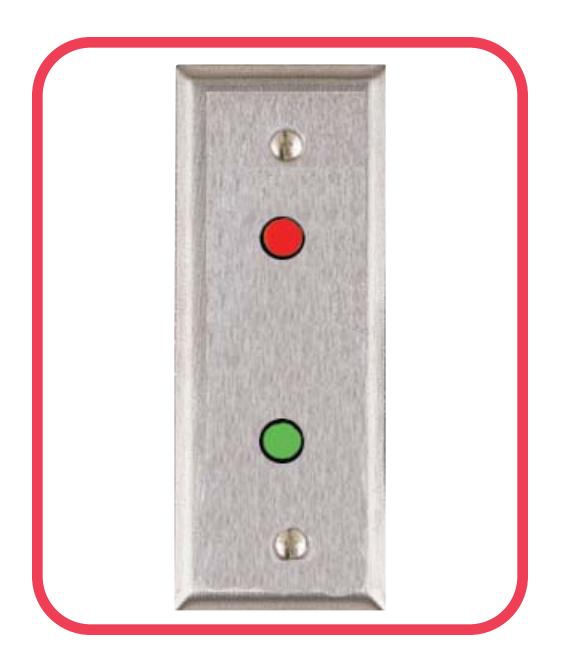

MODEL RP-9SL

SPECIFICATIONS

• - NARROW 1.5 INCH SATIN STAINLESS STEEL WALLPLATE
• - .250 INCH DIAMETER RED AND GREEN LEDS, OPERATE ON 12 OR 24 VDC
• - LED CURRENT DRAW 8 MA. @ 12 VDC, 12 MA. @ 24 VDC
• - 6 INCH RED AND BLACK LEADS
• - RP-9SL IS AVAILABLE IN ALL STANDARD PAINT FINISHES
• - PLATE SIZE IS 1.5" W x 4.5" H

19 BRANDYWINE DRIVE P.O. BOX 280 DEER PARK, NY 11729 1 631 586-4220 1 800 645-5538 WWW.ALARMCONTROLS.COM EMAIL INFO@ALARMCONTROLS.COM
