Alarm Controls Wall Plate Model RP-9L Cutsheet

MODEL RP-9L

SPECIFICATIONS

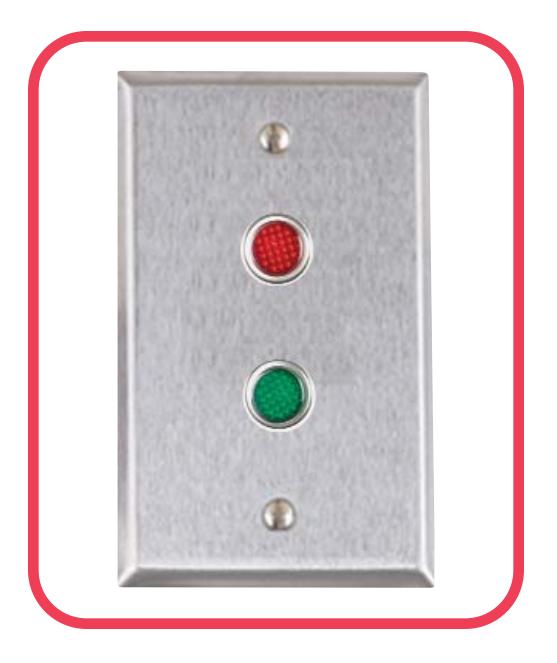

• - SINGLE GANG SATIN STAINLESS STEEL WALLPLATE
• - .500 INCH DIAMETER RED AND GREEN LEDS, OPERATE ON 12 OR 24 VDC
• - LED CURRENT DRAW 9 MA. @ 12 VDC, 19 MA. @ 24 VDC
• - RP-9 IS AVAILABLE IN ALL STANDARD PAINT FINISHES
• - PLATE SIZE IS 2.75" W x 4.5" H
• - LED ARE AVAILABLE MOUNTED IN A VERTICLE POSITION, ADD SUFFIX V TO P/N

19 BRANDYWINE DRIVE P.O. BOX 280 DEER PARK, NY 11729 1 631 586-4220 1 800 645-5538 WWW.ALARMCONTROLS.COM EMAIL INFO@ALARMCONTROLS.COM

LED WIRING INSTRUCTIONS

FOR 12 VOLT OPERATION WHITE LEAD POSITIVE BLACK LEAD NEGATIVE

FOR 24 VOLT OPERATION RED LEAD POSITIVE BLACK LEAD NEGATIVE
