Alarm Controls Vandal-Resistant and Weather-Proof Flush Mount Digital Keypad Model KP-200 Sell Sheet

Models

Flush Mount Weather-proof Digital

KP-200

Keypad

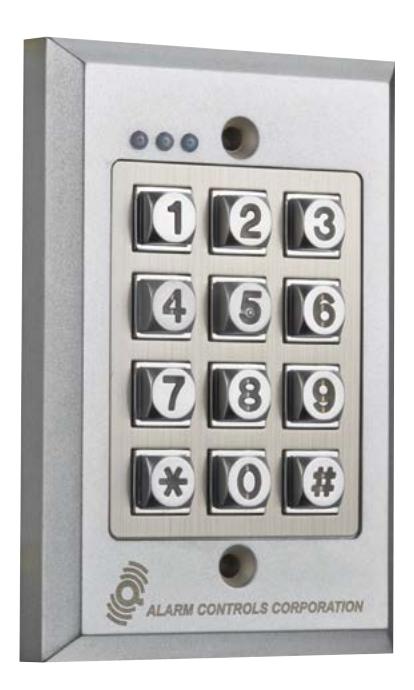

Model KP-200

Vandal-Resistant and Weather-Proof Flush Mount Digital Keypad

Specifications

• • One programmable SPDT 5A relay output, one transistor output
• • Operates on 12 or 24 VAC or VDC, auto voltage sensing
• • Output 1: 100 multi-user codes, code length from 4 to 8 digits
• • Output 2: 10 multi-user codes, code length from 4 to 8 digits
• • Output 1 Inhibit prevents Output 1 and Egress Button from operating
• • Output 1 contact rating: SPDT 5A at 28 VDC/120 VAC
• • Output 2 NPN open collector: 100 mA sink at 24 VDC maximum
• • Active current draw: 100 mA at 12V, 120 mA at 24V
• • Idle current: 10 mA max at 12V, 22 mA max at 24V
• • Tamper switch contacts: N/C dry contacts, 50 mA maximum
• • Operating temperature: -4F to 158F, (-20C to +70C)
• • Ambient humidity: 5 to 95% relative humidity
• • Egress input: normally-open contacts
• • Interlock Control Output is used to control a second keypad in an interlock system to prevent both doors from opening at the same time.
• • Conforms to IP66 Code

Features

• • Designed for access control applications
• • Built-in tamper switch, built-in buzzer
• • Heavy die cast flush mount housing with brushed 302 stainless steel faceplate

• • Waterproof and dustproof
• • Red, yellow and green LEDs indicate the condition of the keypad
• • Request to exit input with relay timer from 1 to 999 seconds
• • Fully programmable from the keypad
• • 100 user codes with code lengths from 4 to 8 digits
• • One programmable NPN transistor output
• • Keypad lockout feature: After 10 false code entries, keypad locks for 30 seconds
• • Flush mounts on standard single gang electrical box
• • Die cast metal keys with audible and visual key press
• • Metal keys are backlit for visibility in dark areas, backlighting is adjustable
• • Keypad beeper can be silenced if desired
• • Keypad can be programmed for output annunciation
• • Relay can be set for momentary or latching mode
• • N/C tamper switch can provide a remote alarm signal
• • Door sensor input connected to a n/c magnetic contact mounted on the door will provide the following functions:
• • Door auto relock to prevent "tailgating"
• • Door forced open alarm
• • Door propped open alarm
• • Door interlock, (mantrap), requires 2 keypads
• • Key active output switches to ground for 10 seconds when a key is pressed. Can be used for a remote LED, buzzer or relay.
• • Limited lifetime warranty
