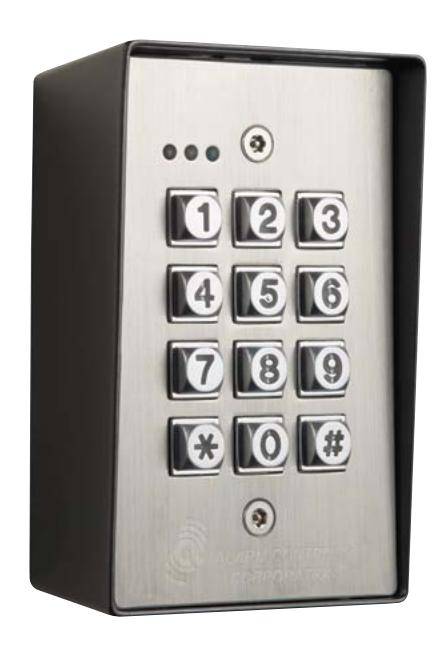

Model KP-400

Vandal-Resistant and Weather-Proof Digital Keypad

Specifications

• • Operates on 12 or 24 VAC or VDC, auto sensing
• • Output 1: capacity of 100 user codes, code length 4 to 8 digits
• • Output 2: 100 user codes, code length 4 to 8 digits
• • Conforms to IP66 code, dust-proof and water-proof from powerful direct water spray in any direction
• • Duress output and door prop open alarm
• • Red, yellow and green LEDs indicate status of keypad

Features

• • Man trap option available
• • Built-in tamper switch, built-in buzzer
• • Black powder coated die cast aluminum backbox
• • Fully programmable from the keypad
• • Anti-tailgating feature
• • Request to exit input, duress output
• • Two programmable SPDT relays
• • Die cast metal keys with audible and visual key press
• • 302 stainless steel faceplate with tamperproof screws
• • Audible and visual key press
• • Keys are backlit for visibility in dark areas
• • False code lockout
• • Three year warranty

Models

KP-400

Digital Keypad Weather-proof, Vandal-resistant with Metal Backbox
