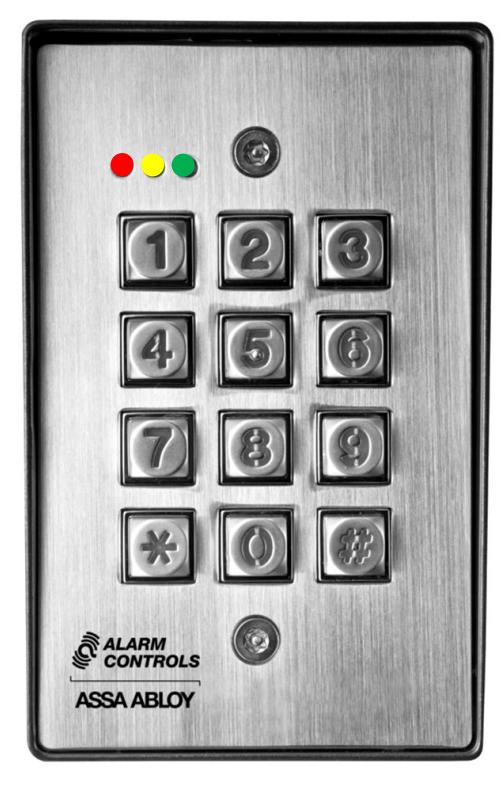

MODEL KP-400 VANDAL RESISTANT WEATHERPROOF DIGITAL KEYPAD OPERATING INSTRUCTIONS

Model KP-400 is a self-contained vandal resistant digital keypad. This dual-relay output keypad is suitable for residential, industrial, and commercial installations. It is compatible with all electric locking devices. Durable backlit metal keys and a rugged metal housing protect the keypad from harsh environments.

Alarm Controls 10027 S. 51st Street Suite 102 Phoenix, AZ 85044 (800) 645-5538

INSTALLATION

• 1. Remove tamper proof screws from the front of the keypad with the provided tool.
• 2. Pass the wire harness through the opening in the back box.
• 3. Mount the back box to the door frame or wall.
• 4. Make all required wiring connections to the terminal blocks.
• 5. Place the keypad faceplate on the back box and secure with the tamper proof

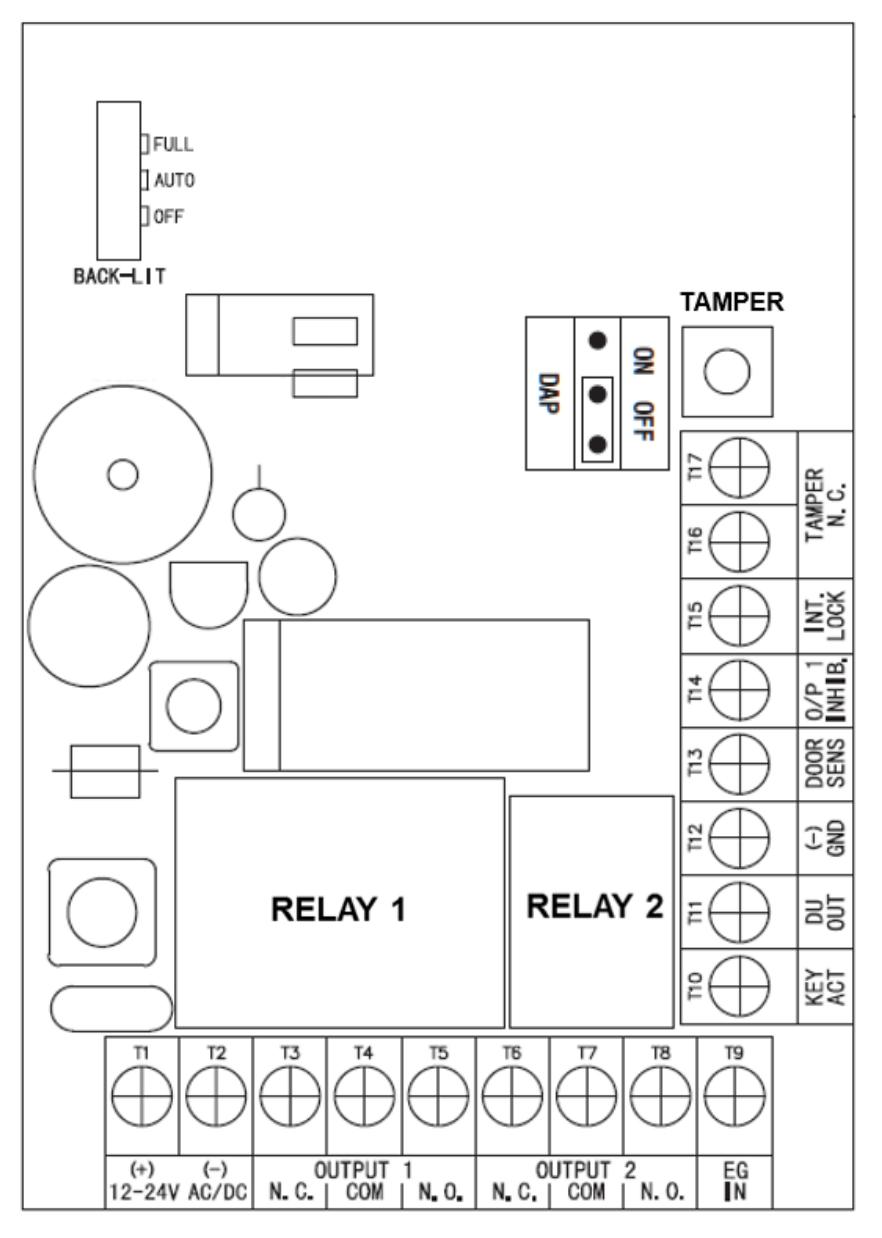

	WIRING
Power Input (12-24V AC/DC)	12 or 24 AC or DC. AC power can be connected without observing polarity requirement. Connect DC power with polarity as indicated.
Output 1, Output 2	SPDT dry contacts. Outputs can be programmed for latching or momentary operation.
Egress Input (EG IN)	A normally-open request to exit station can be connected to this terminal and ground (-). Connecting the terminal to ground will operate output 1 in the same manner as a valid user code.
Key Active Output (KEY ACT)	NPN transistor open collector output that switches to ground (-) for 10 seconds with each key press. Output rating Ic max: 100mA sink, Vc max: 24VDC.
Duress Output (DU OUT)	NPN transistor open collector output that switches to ground (-) after the duress code has been entered. Output rating Ic max: 100mA sink, Vc max: 24VDC.
Ground (-) (GND)	System ground (-).
Door Position Sensor Input (DOOR SENS)	A normally-closed contact connected to this terminal and ground (-) will provide a door position monitor. This terminal must be connected to ground (-) if not used. The factory installed jumper must be removed if using this input.
Output 1 Inhibit (O/P 1 INHIB)	Normally-open input terminal used in a cross wire connection in an interlock application.
Interlock Control Output (INT. Lock)	NPN transistor open collector output that switches to ground (-) for 5 seconds after entering a valid user code. Use this output to control a second keypad in a "Mantrap" application.
Normally-closed Tamper (Tamper N.C.)	Normally-closed output pair activated by the tamper switch if the keypad faceplate is removed from the back box.

KEYPAD INITIATION

Keypad initiation must be done at the initial turn-on of the keypad.

• 1. Connect power to the keypad.
• 2. Put the keypad in Program Mode by entering " 0 0 0 0 ". The keypad will beep twice and the yellow LED will be on and not blinking.
• 3. Enter " 8 9 0 1 # ".
• 4. The keypad will beep twice and the keypad initiation is complete.
• 5. Enter "" to exit Program Mode. The yellow LED will begin blinking.

ENTERING A NEW INSTALLER CODE

It is strongly recommended that the Installer Code be changed from the default " 0 0 0 0 ". If the Installer Code is not known, please refer to the section on Direct Access to Programming .

• 1. Put the keypad in Program Mode by entering " 0 0 0 0 " or the current installer code. The keypad will beep twice and the yellow LED will be on and not blinking.
• 2. Enter " 0 (4 to 8 digit new installer code) # ". For example, to change the Installer Code to 1 2 3 4 you would enter " 0 1 2 3 4 # ".
• 3. The keypad will beep twice indicating that the new Installer Code has been accepted.
• 4. Enter "" to exit Program Mode. The yellow LED will begin blinking.

PROGRAMMING MODE

It is necessary to put the keypad in Programming Mode in order to access all keypad configuration settings.

• 1. Put the keypad in Program Mode by entering the Installer Code followed by the "". The keypad will beep twice and the yellow LED will be on and not blinking.
• 2. Enter "" to exit Program Mode. The yellow LED will begin blinking.

PROGRAMMING USER CODES

A User Code can be assigned to operate either Output 1 or Output 2. The keypad can store up to 100 User Codes for Output 1 and up to 10 User Codes for Output 2.

Each User Code has a Code Number . Output 1 Code Numbers are two digits ranging from " 00 " to " 99 ". Output 2 Code Numbers are one digit ranging from " 0 " to " 9 ".

• 1. Put the keypad in Program Mode by entering the Installer Code followed by the "". The keypad will beep twice and the yellow LED will be on and not blinking.
• 2. Enter "( Output) (Code Number) (User Code) # " .

For example, if you wish to assign a User Code of "6 7 8 9" to Code Number "00" to operate Output 1 you would enter " 1 0 0 6 7 8 9 # ".

• If you wish to assign a User Code of "3 4 3 3" to Code Number "1" to operate Output 2 you would enter " 2 1 3 4 3 3 # ".
• 3. Enter "" to exit Program Mode. The yellow LED will begin blinking.

OPERATION

Enter a valid User Code to activate the associated Output. The keypad must be in standby mode (yellow LED blinking).

1. Enter " (User Code) # ".

For example, if the User Code is "1234" you would enter " 1 2 3 4 # ".

DELETING USER CODES

• 1. Put the keypad in Program Mode by entering the Installer Code followed by the "". The keypad will beep twice and the yellow LED will be on and not blinking.
• 2. Enter " (Output) (Code Number) # " .

For example, if you wish to delete the User Code in Code Number "02" for Output 1 you would enter " 1 0 2 # ".

If you wish to delete the User Code in Code Number "3" for Output 2 you would enter " 2 3 # ".

3. Enter "" to exit Program Mode. The yellow LED will begin blinking.

To delete all User Codes enter " 8 9 0 1 # ".

FALSE CODE LOCKOUT

The keypad can be programmed to be disabled for 15 minutes after 5 successive false code entries.

• 1. Put the keypad in Program Mode by entering the Installer Code followed by the "". The keypad will beep twice and the yellow LED will be on and not blinking.
• 2. Enter " 7 2 5 # ".
• 3. Enter "" to exit Program Mode. The yellow LED will begin blinking.

To disable the False Code Lockout feature -

• 1. Put the keypad in Program Mode by entering the Installer Code followed by the "". The keypad will beep twice and the yellow LED will be on and not blinking.
• 2. Enter " 7 6 0 0 # ".
• 3. Enter "" to exit Program Mode. The yellow LED will begin blinking.

DOOR FORCED OPEN ALARM

The keypad will generate an alarm instantly if the door is opened without a valid User Code or Egress Input. The alarm will last for 60 seconds. Door position is monitored via the Door Position Sensor Input . The alarm will be turned off immediately with any valid Output 1 User Code entry.

• 1. Put the keypad in Program Mode by entering the Installer Code followed by the "". The keypad will beep twice and the yellow LED will be on and not blinking.
• 2. Enter " 8 0 1 # ".
• 3. Enter "" to exit Program Mode. The yellow LED will begin blinking.

DOOR FORCED OPEN ALARM (CONTINUED)

To disable the Door Forced Open Alarm feature -

• 1. Put the keypad in Program Mode by entering the Installer Code followed by the "". The keypad will beep twice and the yellow LED will be on and not blinking.
• 2. Enter " 8 0 0 # ".
• 3. Enter "" to exit Program Mode. The yellow LED will begin blinking.

DOOR PROPPED OPEN ALARM

If the door is left open for longer than a preset time, the keypad will generate an alarm until the door is closed. The door open time can be programmed from 1 to 999 seconds. Door position is monitored via the Door Position Sensor Input .

• 1. Put the keypad in Program Mode by entering the Installer Code followed by the "". The keypad will beep twice and the yellow LED will be on and not blinking.
• 2. Enter " 9 (door open time 1-999) # " .
• 3. Enter "" to exit Program Mode. The yellow LED will begin blinking.

To disable the Door Propped Open Alarm feature -

• 1. Put the keypad in Program Mode by entering the Installer Code followed by the "". The keypad will beep twice and the yellow LED will be on and not blinking.
• 2. Enter " 9 0 # ".
• 3. Enter "" to exit Program Mode. The yellow LED will begin blinking.

MOMENTARY OR LATCHING OUTPUT MODES

Outputs 1 and 2 can be programmed for either momentary or latching operation. Momentary operation time can be set for between 1 and 999 seconds. The factory default momentary operation time is 1 second.

• 1. Put the keypad in Program Mode by entering the Installer Code followed by the "". The keypad will beep twice and the yellow LED will be on and not blinking.
• 2. Output 1 Momentary Mode -

Enter " 4 0 (output active time 1-999) #"

Output 2 Momentary Mode -

Enter " 5 0 (output active time 1-999) #"

Output 1 Latching Mode -

Enter " 4 1 #"

Output 2 Latching Mode -

Enter " 5 1 #"

3. Enter "" to exit Program Mode. The yellow LED will begin blinking.

KEYPAD SILENT MODE

The keypad beeper can be silenced.

• 1. Put the keypad in Program Mode by entering the Installer Code followed by the "". The keypad will beep twice and the yellow LED will be on and not blinking.
• 2. Enter " 8 3 0 # ".
• 3. Enter "" to exit Program Mode. The yellow LED will begin blinking.

To return the keypad to audible mode -

• 1. Put the keypad in Program Mode by entering the Installer Code followed by the "". The keypad will beep twice and the yellow LED will be on and not blinking.
• 2. Enter " 8 3 1 # ".
• 3. Enter "" to exit Program Mode. The yellow LED will begin blinking.

AUTO OR MANUAL CODE ENTRY MODE

When the keypad is programmed for Auto Entry Mode it is not necessary to terminate User Codes with the " # " during operation. However, in Auto Entry Mode the User Code must be the same length (4 to 8 digits) as the Installer Code .

To put the keypad in Auto Entry Mode -

• 1. Put the keypad in Program Mode by entering the Installer Code followed by the "". The keypad will beep twice and the yellow LED will be on and not blinking.
• 2. Enter " 8 2 1 # ".
• 3. Enter "" to exit Program Mode. The yellow LED will begin blinking.

To return the keypad to Manual Entry Mode -

• 1. Put the keypad in Program Mode by entering the Installer Code followed by the "". The keypad will beep twice and the yellow LED will be on and not blinking.
• 2. Enter " 8 2 0 # ".
• 3. Enter "" to exit Program Mode . The yellow LED will begin blinking.

DURESS OUTPUT

There may be up to ten (10) user programmable Duress Codes. Their User ID's are single digit (between 0 & 9). A Duress Code will operate Relay 1 just like a User Code, but it will also activate the Duress Output. The Duress Output can be wired for remote monitoring of the event if desired. To reset the Duress Output you can enter any valid User Code.

• 1. To program a Duress Code put the keypad into the Program Mode by entering the Installer Code followed by the "". The keypad will beep twice and the yellow LED will stop flashing and go solid.
• 2. Enter(46) (User ID) (Duress Code) #. For example, if you wish to enter Duress Code 1818 into the first User ID slot (0), you will enter 4601818# .
• 3. Enter "*" to exit Program Mode. The yellow LED will begin blinking.

DIRECT ACCESS TO PROGRAMMING (DAP)

If the Installer Code is forgotten, the Direct Access to Programming (DAP) utility can be used to put the keypad in Programming Mode .

• 1. Disconnect the power supply from the keypad.
• 2. Move the DAP jumper from the OFF to the ON position.
• 3. Reconnect the power supply to the keypad (keypad will start beeping).
• 4. Move the DAP jumper from the ON to the OFF position (keypad will stop beeping and the yellow LED will be on and not blinking. The keypad is now in Programming Mode .
• 5. A new Installer Code must now be entered.
• 6. Enter " 0 (4 to 8 digit new installer code) # ". For example, if you wish to change the Installer Code to 1 2 3 4 you would enter " 0 1 2 3 4 # ".
• 7. The keypad will beep twice indicating that the new Installer Code has been accepted.
• 8. Enter "" to exit Program Mode . The yellow LED will begin blinking.

LED AND TONE INDICATORS

The Green LED is on while Output 1 is activated.

The Red LED is on while Output 2 is activated.

The Yellow LED is described in the table below -

Yellow LED	Keypad Status	Tone Indicator
On	Programming Mode	None
1 Blink	Successful Key Press	1 Beep
2 Blinks	Successful Code Entry	2 Beeps
5 Blinks	Error in Code Entry	5 Beeps
Continuous Blinking	Standby Mode	None
Continuous Blinking	DAP Jumper not replaced	Continuous Tone

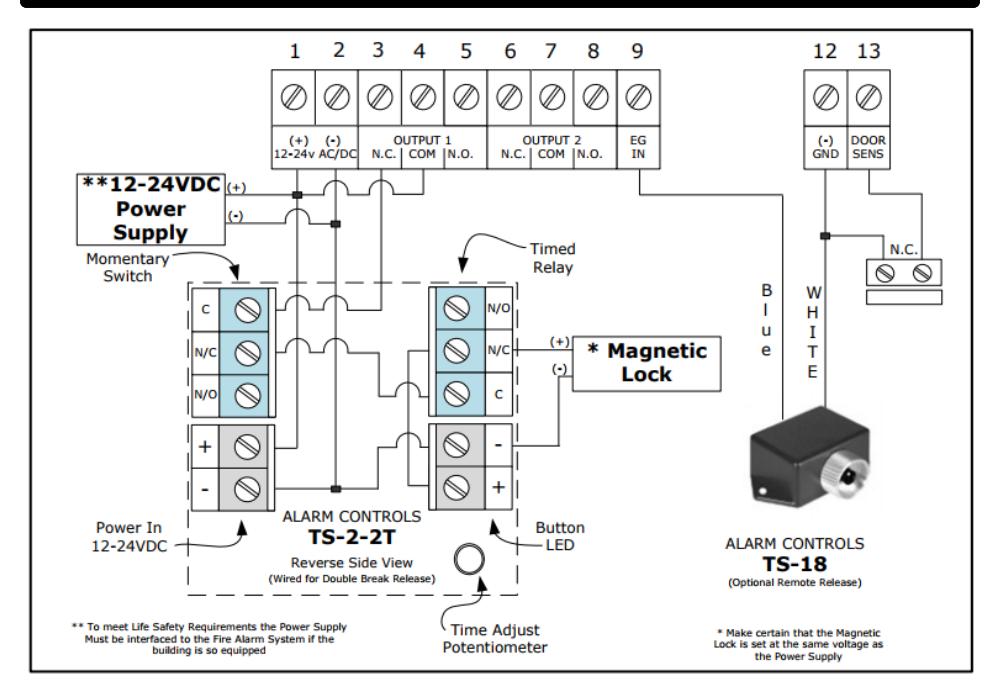

BASIC WIRING DIAGRAM FOR A MAGNETIC LOCK

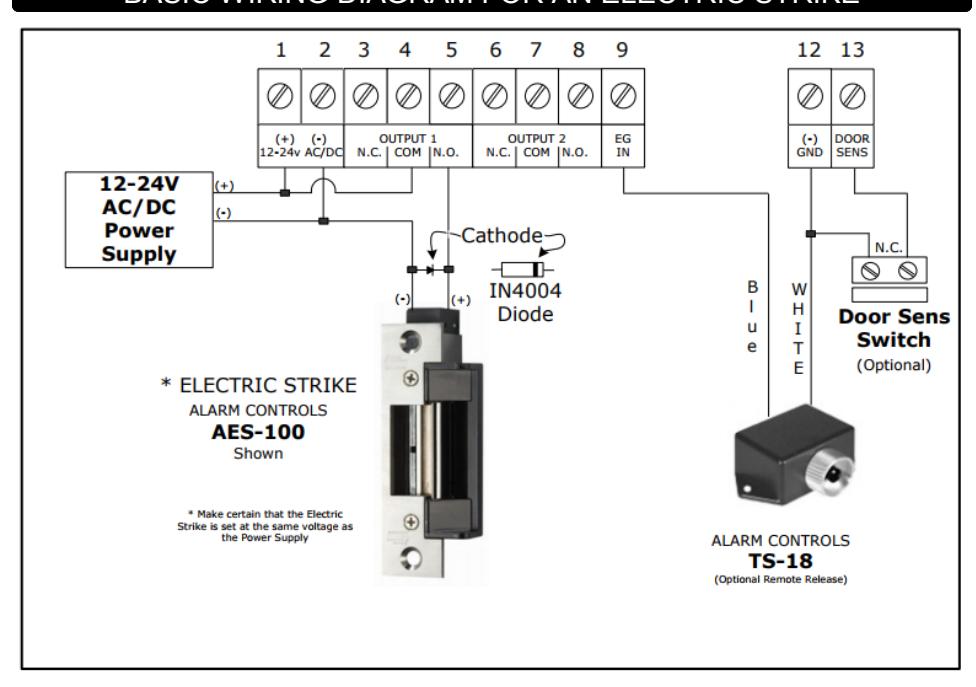

BASIC WIRING DIAGRAM FOR AN ELECTRIC STRIKE

ADDITIONAL WIRING DIAGRAHMS

Call tech support for mantrap, inhibit and other application specific wiring diagrams at 1.800.461.3007

TAMPER SWITCH

The Tamper Switch is Normally-closed when the keypad face plate is securely attached to the back box. Connect these terminals to an alarm panel if desired.

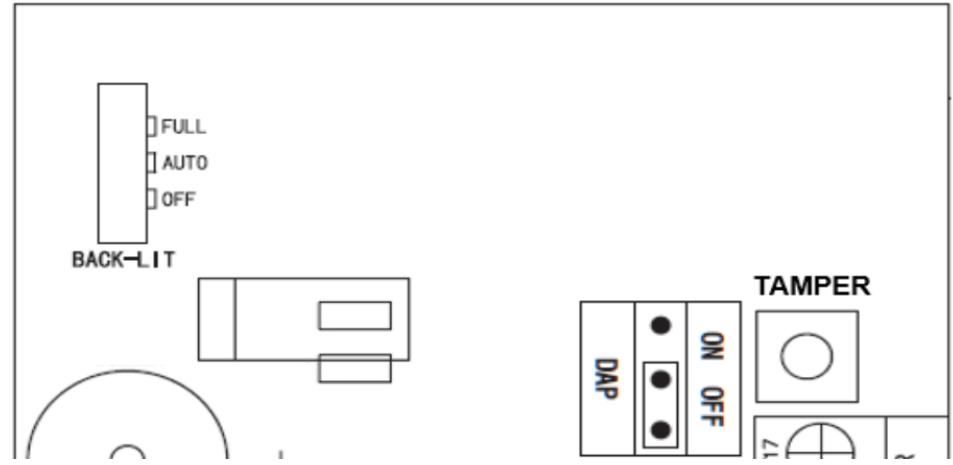

BACKLIGHT ADJUSTMENT

The keypad has an adjustable backlight feature. The backlight illumination can be set to "FULL", "AUTO", and "OFF" using the jumper located in the upper left hand corner of the PCB assembly behind the front plate.

SPECIFICATIONS Operating Voltage 12 or 24 Volts AC or DC Auto-sensing Active Current Draw 100 mA maximum @12VDC 120 mA maximum @24VDC Idle Current Draw 10 mA maximum @12VDC 22 mA maximum @24VDC Output 1 Contact Rating 5A@24VDC Output 2 Contact Rating 1A@24VDC Output Contact Arrangement Single Pole Double Throw Operating Temperature -4°F to 158°F (-20°C to +70°C) Ambient Humidity 5% to 95% Relative Humidity (Non-condensing) Environmental Rating Conforms to IP66

CODES

It is recommended that the Installer Code and User Codes be noted here for reference.

Dimensions 3.125"W x 4.5"L x 1.75" to 2.5"D

Installer Code User Code User Code
User Code
User Code
User Code
User Code
User Code
User Code
User Code
User Code
User Code
User Code
User Code
User Code
User Code
User Code
User Code
User Code
User Code
User Code
