Vandal Resistant Push Plates

FOR ACCESS CONTROL APPLICATIONS

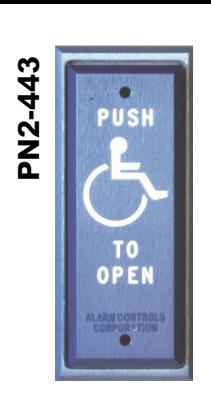

NARROW PLATE BRONZE FINISH WHITE FILL

NARROW PLATE BLUE FINISH WHITE FILL

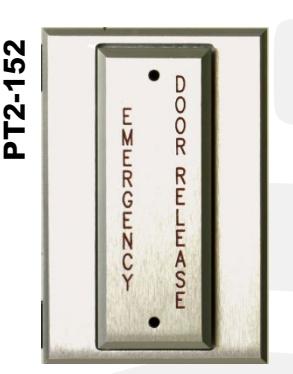

T-STYLE PLATE CLEAR FINISH RED FILL

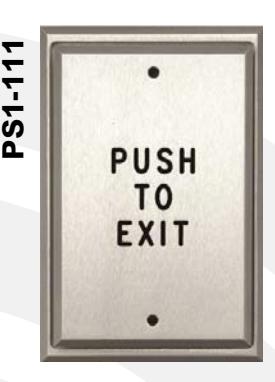

SINGLE GANG PLATE CLEAR FINISH BLACK FILL

• Machined from solid aluminum with engraved text and anodized finish
• Tamper resistant mounting
• Designed for use in high traffic areas
• Narrow Plate is just 1.875" wide and is suitable for mullion mounting
• T-Style and Single Gang Plates mount on a standard single gang electrical box

PLATE	SWITCH TYPE	FINISH	ENGRAVING	FILL
PN	1	1	1	1
NARROW	SPDT MOMENTARY ACTION	CLEAR	PUSH TO EXIT	BLACK
PT	2	2	2	2
T-STYLE	DPDT MOMENTARY ACTION	BRONZE	PUSH TO OPERATE	RED
PS	5	3	3	3
SINGLE	PNEUMATIC TIME DELAY	BRASS	PUSH TO OPEN	WHITE
GANG	(2 TO 60 SECONDS)	4	4	4
		BLUE	ADA SYMBOL PUSH TO OPEN	BLUE
		5	5
		BLACK	EMERGENCY DOOR RELEASE
PS | 1- | 1 | 1 | 1

Part Number Example

For Single Gang Plate with SPDT Momentary Action Switch, Clear Finish, Engraved "PUSH TO EXIT" and filled in Black Ink.

SPDT and DPDT Switch Specifications

Contact Rating ....................................

Common ....... White Normally Closed ...... Red Normally Open ...... Blue

Pnuematic Switch Specifications

Contact Rating ...... 2A @ 28VDC Depth Behind Plate ...... 1.50"

Switches terminated in 22AWG colored leads -

Normally Closed Pair ...... Red Normally Open Pair ..... Blue
