INSTALLATION INSTRUCTIONS FOR PUSH PLATES PS, PN, PT, PD Series

Mount Push Plate to mounting surface with the captive 6-32 screws using the hex key.

Switch Wiring SPDT/DPDT Pneumatic Wiring

Normally Closed Contact - Red Lead Normally Open Contact—Blue Lead Normally Open Contact - Blue Lead Contacts Rated 2A @ 12-28VDC Contacts Rated .5A @125VDC

Common - White Lead Normally Closed Contact— Red Lead

*Must be powered by a UL 294 Listed Power Supply*

Time Adjustment -

Rotate knob clockwise for maximum time (30 seconds). Rotate knob counter clockwise for minimum time (2 seconds). Note: Switch time repeatability is ±10%.

Time adjustment knob

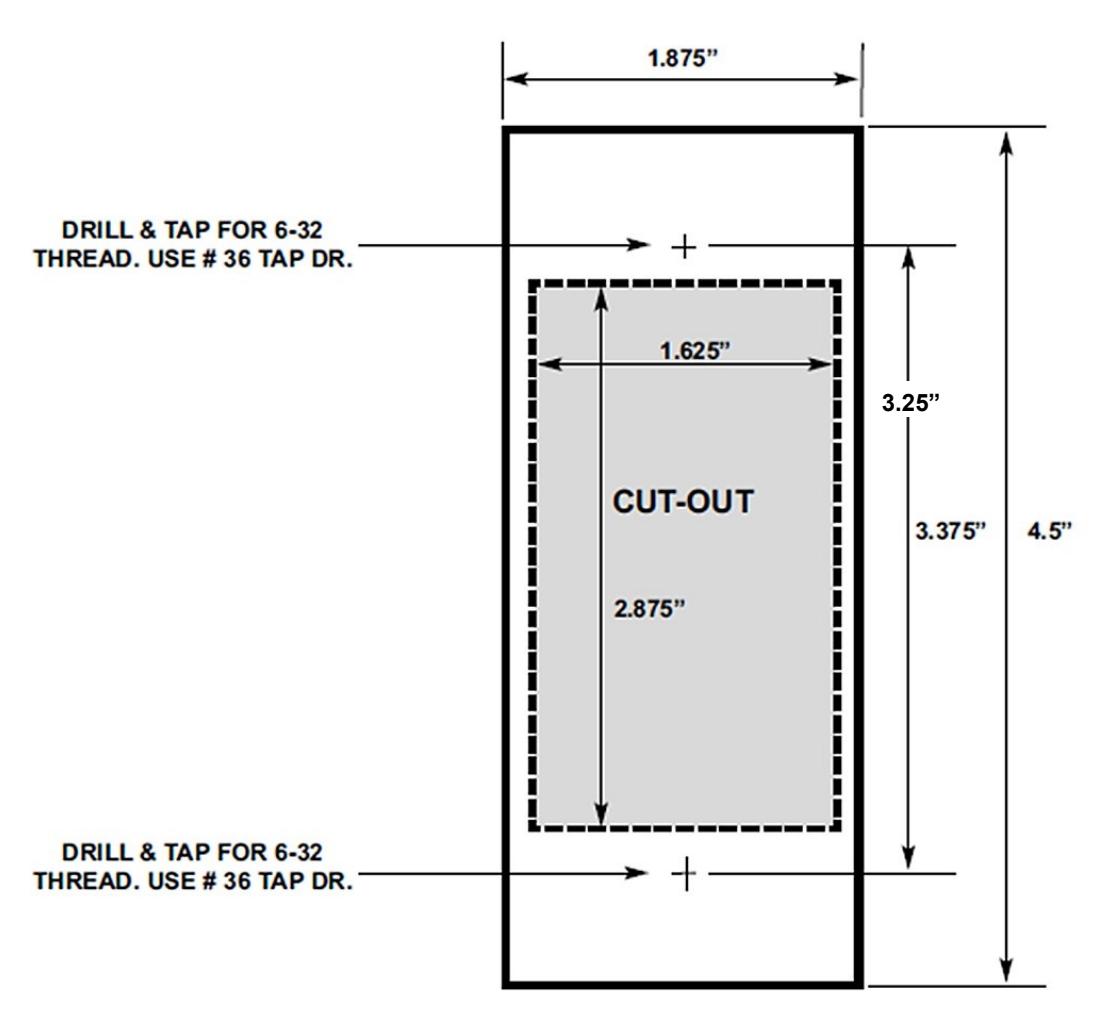

TEMPLATE FOR MULLION CUT-OUT

Alarm Controls Phoenix AZ, 85044 (800) 645-5538 www.alarmcontrols.com

DocD-014 Rev. A
