Vandal Resistant Double Gang Push Plates

FOR ACCESS CONTROL APPLICATIONS

PD1-121

PRESS TO OPERATE DOOR CLEAR FINISH BLACK FILL

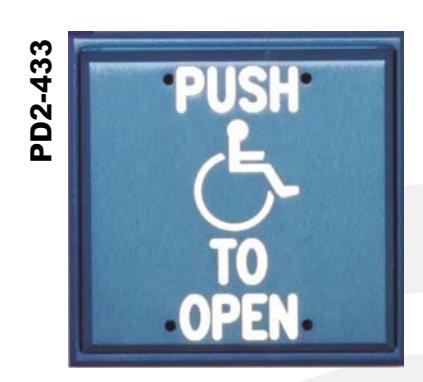

ADA PUSH TO OPEN BLUE FINISH WHITE FILL

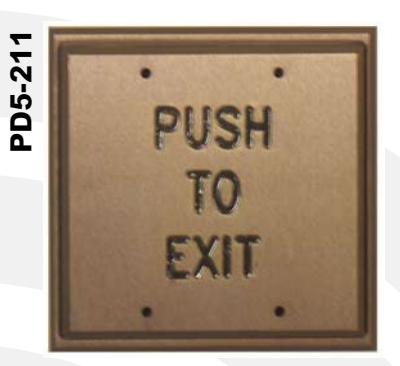

PUSH TO EXIT BRONZE FINISH BLACK FILL

• Machined from solid aluminum with engraved text and anodized finish
• Tamper resistant mounting
• Designed for use in high traffic areas
• Mounts on a standard double gang electrical box

SWITCH TYPE	FINISH	ENGRAVING	FILL
1	1	1	1
SPDT MOMENTARY ACTION	CLEAR	PUSH TO EXIT	BLACK
2	2	2	2
DPDT MOMENTARY ACTION	BRONZE	PUSH TO OPERATE DOOR	RED
5	3	3	3
PNEUMATIC TIME DELAY	BRASS	ADA SYMBOL PUSH TO OPEN	WHITE
(2 TO 60 SECONDS)	4		4
	BLUE		BLUE
	5
	BLACK
PD 1- 1 1 1

Part Number Example

For Double Gang Plate with SPDT Momentary Action Switch, Clear Finish, Engraved "PUSH TO EXIT" and filled in Black Ink.

SPDT and DPDT Switch Specifications

Contact Rating ............... 4A @ 28VDC

Depth Behind Plate ........ 1.375"

Switches terminated in 22AWG colored leads -

Common ..................... White Normally Closed ......... Red Normally Open ............ Blue

Pnuematic Switch Specifications

Contact Rating ............... 2A @ 28VDC

Depth Behind Plate ........ 1.50"

Switches terminated in 22AWG colored leads -

Normally Closed Pair ......... Red Normally Open Pair ............ Blue
