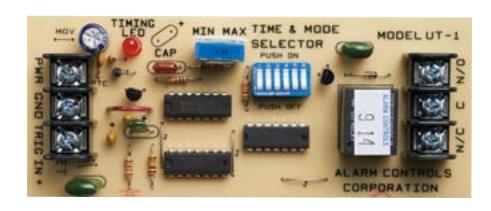

Model UT

Universal Timer

Specifications

• • Size: 2-1/8" x 5-3/16"
• • Voltage range:
• • UT-1: 12 VDC
• • UT-1-24V: 24 VDC
• • Current Draw: 37 mA (maximum)
• • Contact rating: 10A at 35 VDC or 125 VAC
• • Temperature rating: -13 to +158F [-25 to +70C]
• • Contact arrangement: SPDT

Features

• • Time range: 1 second to 1 hour
• • Mounting: adhesive foam tape
• • Four modes of operation:
• • Delay on operate
• • Delay on release
• • One shot
• • Pulsing

Options

• Order UT-1 24 V for 24 VDC Model

Models

UT-1

Programmable Digital Timer, 12 VDC

UT-1 24 V

Programmable Digital Timer, 24 VDC
