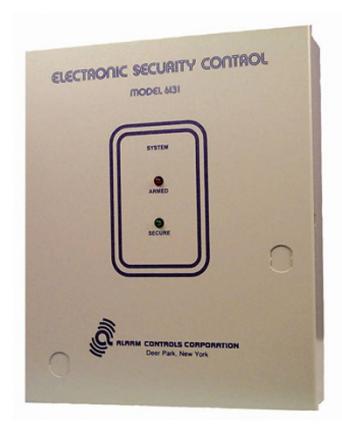

Model 6131

Single Zone Burglary Control with Entry/Exit Delay

Specifications

• • Regulated voltage output, 13.8 VDC and 300 mA
• • Power input 12 VAC, Class 2 plug-in transformer (transformer supplied)
• • 12 VDC, 4 Ah rechargeable battery (battery not supplied)
• • Bell/siren output 12 VDC, 2.5A
• • Dry contacts SPST normally-open rated 5A at 28 VDC
• • Pre-alarm output 12 VDC for SC628 sonalert or equal
• • Cabinet size: 11" H x 9" W x 3" D
• • Closed circuit instant loop: Instant and Delay maximum loop resistance 1000 ohms

Features

• Adjustable entry/exit delay, independently adjustable from 2 to 60 seconds

• • Adjustable bell cut-off, auto restore time 2 to 15 minutes
• • Latching panic circuit
• • Built-in battery charger
• • Built-in pulse stretcher
• • Open circuit instant loop
• • 24 hour latching panic circuit
• • Remote instant/delay switch: single pole, single throw (Delay active when open)
• • Full static and lightning protection
• • Remote LEDs: Armed LED: Red, Secure LED: Green, Control will accept up to three LED remote stations
• • Key switch momentary type, round or flat key, key switch not supplied
• • Cabinet beige finish, knockout for optional camlock, knockout for cabinet mounted key switch, secure and armed LEDs, five additional knockouts

Models

6131NT

Burglary Only, Entry/Exit Delay, Remote Arming, Battery and Transformer not included
