Model RP-50

Single Gang Wall Plate

Specifications

• • 1/4" red and green LEDs operate on 12 or 24 VDC
• • LED current draw 8 mA at 12 VDC, 12 mA at 24 VDC
• • Normally-closed tamper switch, contacts rated .75A at 125 VDC

Options

• Available in all standard finishes

Features

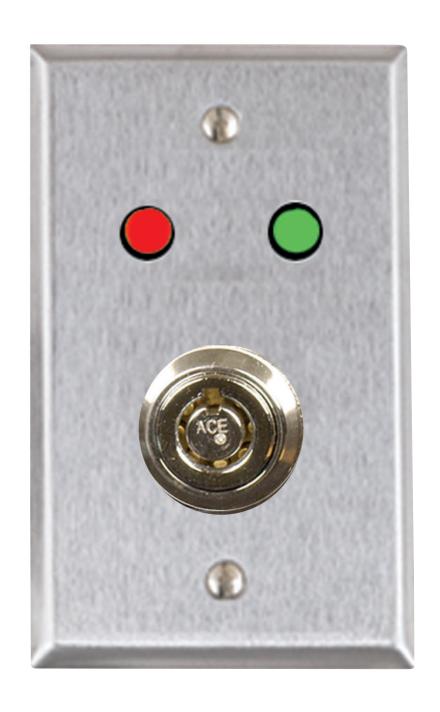

• • Single gang satin stainless steel wall plate with 1/4" red and green LEDs
• • 3/4" "D" hole for Ace lock
• • 6" red and black leads

Models

RP-50

Single Gang Stainless Steel Wall Plate with 1/4" Red, Green LEDs and 3/4" "D" Hole for Ace Lock
