Model RP-33

Single Gang Wall Plate

Specifications

• • 1/4" red, yellow and green LEDs operate on 12 or 24 VDC
• • LED current draw 8 mA at 12 VDC, 12 mA at 24 VDC

Features

• • Single gang satin stainless steel wall plate with 1/4" red, yellow and green LEDs
• "D" hole for Ace lock
• • 6" red and black leads

Options

• Available in all standard finishes

Models

RP-33

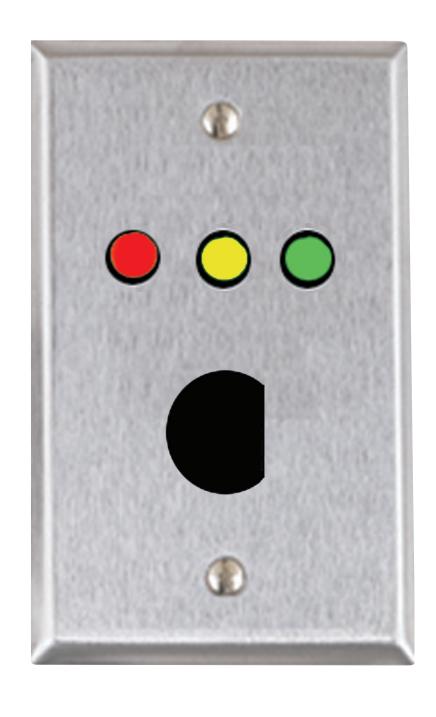

Single Gang Stainless Steel Wall Plate with 1/4" Red, Yellow, Green LEDs and "D" Hole for Ace Lock

ALARMCONTROLS
