Model RP-30

Single Gang Wall Plate

Specifications

• • LED current draw 8 mA at 12 VDC, 12 mA at 24 VDC
• • 1/4" and 1/2" red LED operates on 12 or 24 VDC
• • LEDs terminated with 6" 18 gauge red, white and black leads

Options

• • Available in all standard finishes
• • Order RP-30L for 1/2" red LED

Features

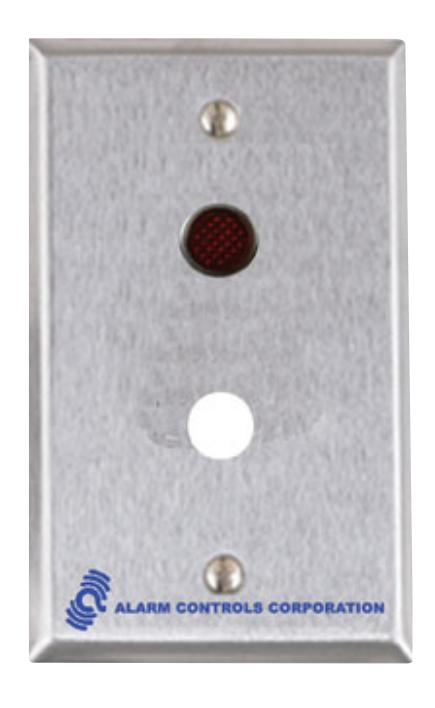

• • Single gang stainless steel wall plate with 1/4" red LED
• 1/2" hole for mounting a switch
• • 6" red and black leads

Models

RP-30

Single Gang Stainless Steel Wall Plate with 1/4" Red LED and 1/2" Hole

RP-30L

Single Gang Stainless Steel Wall Plate with 1/2" Red LED and 1/2" Hole
