Model KP-100A

Self-Contained Digital Keypad

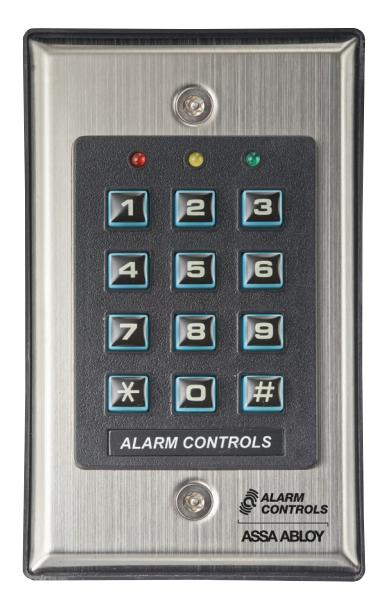

The KP-100A is a self-contained digital access control keypad that can be flush mounted on a single gang box or surface mounted on its plastic mounting box.

Easy to install and easy to program, this keypad is ideal for access control and alarm arm/disarm control systems

It works perfectly in stand-alone operation, split-decoded operation for security enhancement with the optional decoder, and multi-station operation for user convenience.

Features

Standard Features

• • Single gang or flush mount stainless steel plate
• • 12-key illuminated 3x4 keypad
• • True 10-digit operation (10 digits plus * and # keys)
• • 1 1,000 user codes capability
• • 1 50 visitor codes for temporary workers and visitors
• • Easy programming from the keypad
• • Built-in tamper switch with N.C. dry contact
• • Passage mode and Lockout mode
• • Configurable audible keystroke echo tone
• • Red, green and yellow LEDs for status and programming feedback
• • Fail safe or fail secure capable
• • Easy to install with simple hand tools
• • 5A SPDT timed, control relay (1) output
• • Request to exit (REX) input
• • For indoor applications only
• • 3 year warranty

Accessories

• Comes standard with surface mount back box

Specifications

Dimensions

• • Keypad: 2-3/4"W X 4-1/2"H X 5/32"D
• • Surface mount back box: 2-13/16"W X 4-5/8"H X 1-7/16"D

Electrical

• • Operating Voltage
  • 12-24V AC/DC [+/- 10%]
• • Operating Current
  • 12VDC: 40mA at rest; 100mA active
  • 24VDC: 70mA at rest; 50mA active
• • Output Relay (1) Form C dry contacts
  • 5A/30 VDC Max Fail Safe or Fail Secure
• • REX Input N.O. dry contact - 1mA/5VDC Max
• • Tamper Switch N.C. dry contact
  • 50mA/24VDC Max

Environmental

• • Operating Temperature - -4°F to +158°F [-20°C to +70°C]
• • Humidity
  • 5-95% relative humidity non-condensing
• • Indoor use only

Shipping Weight

• 0.5lb [0.23kg]

Models KP-100A

Keypad

Self-Contained Backlit Digital
