Alarm Controls Remote Audio Indicator Model TS-41 Cutsheet

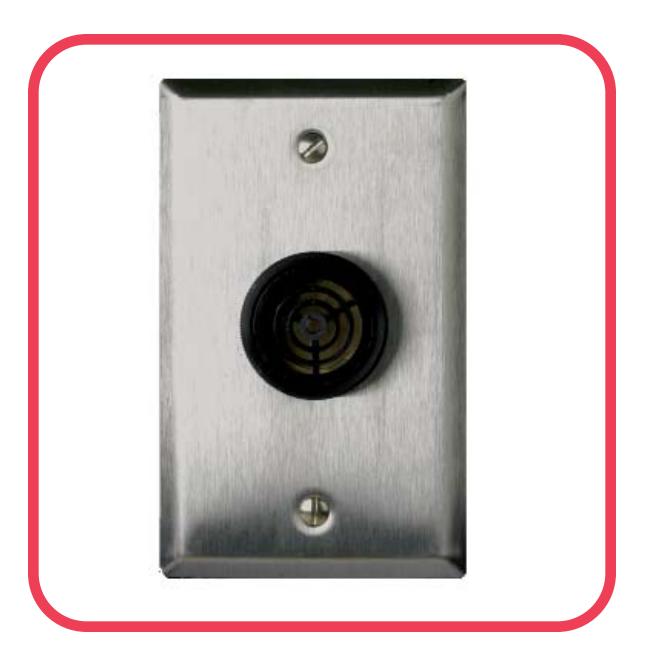

MODEL TS-41 REMOTE AUDIO INDICATOR

SPECIFICATIONS

• - SONALERT MOUNTED ON SINGLE GANG STAINLESS STEEL WALLPLATE
• - OPERATING VOLTAGE RANGE 6 TO 28 VOLTS DC
• - MINIMUM SOUND LEVEL 85 Db @ 3 FEET
• - CURRENT DRAW 3 MA @ 6 VDC, 18 MA @ 28 VDC
• - SCREW TERMINALS
• - OTHER STANDARD PLATE FINISHES ARE AVAILABLE
• - CUSTOM SILKSCREENING OF PLATE IS AVAILABLE
