Alarm Controls Remote Annunciator Plate Model ZP-8AN Cutsheet

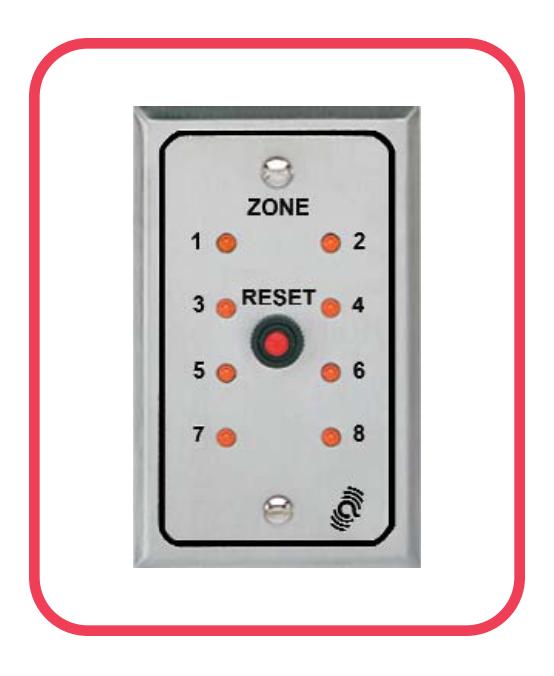

MODEL ZP-8AN REMOTE ANNUNCIATOR PLATE

MODEL ZP-8AN REMOTE PLATE ALLOWS THE REMOTE DISPLAY OF ZONE ANNUNCIATOR STATUS AND THE CAPABILITY OF REMOTE ZONE RESET

SPECIFICATIONS

• - EIGHT RED LEDS, REMOTE RESET SWITCH AND BUZZER
• - MOUNTED ON SINGLE GANG STAINLESS STEEL WALPLATE

19 BRANDYWINE DRIVE P.O. BOX 280 DEER PARK, NY 11729 1 631 586-4220 1 800 645-5538 WWW.ALARMCONTROLS.COM EMAIL INFO@ALARMCONTROLS.COM

ZP-8AN WIRING INSTRUCTIONS

THE ZP-8AN REMOTE ANNUNCIATOR PLATE PLUGS INTO A MALE CONNECTOR LABELED REMOTE PLATE ON THE ZA-8N ZONE ANNUNCIATOR.

CUT THE 12 COLORED LEADS 4" FROM THE CONNECTOR.

CONNECT ADDITIONAL FIELD WIRES TO THE ZP-8AN AND THE ZA-8N AS REQUIRED. BE SURE THAT THE COLORS OF THE FIELD WIRES MATCH THE CONNECTIONS ON BOTH ENDS.

PLUG THE FEMALE CONNECTOR FROM THE ZP-8AN INTO THE CONNECTOR ON THE ZA-8AN.

THE BROWN WIRE ON THE CONNECTOR MUST BE ON THE LEFT!
