Alarm Controls Piezo Buzzer Station Model TS-34 Cutsheet

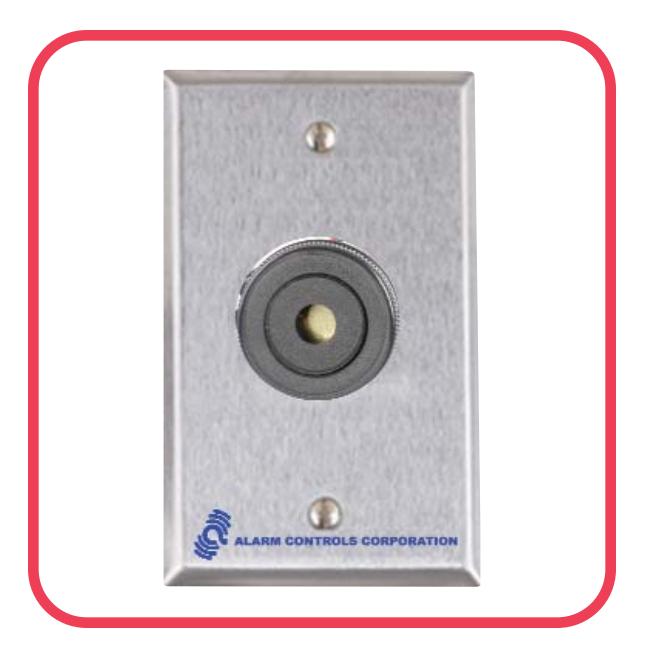

MODEL TS-34 PIEZO BUZZER STATION

SPECIFICATIONS

• - PIEZO BUZZER MOUNTS ON SINGLE GANG STAINLESS STEEL WALLPLATE
• - OPERATING VOLTAGE RANGE 6 TO 28 VOLTS DC
• - MINIMUM SOUND LEVEL 80 Db @ 3 FEET
• - CURRENT DRAW 3 MA @ 6 VDC, 18 MA @ 28 VDC
• - 6 INCH RED AND BLACK LEADS
• - OTHER STANDARD PLATE FINISHES ARE AVAILABLE
• - CUSTOM SILKSCREENING OF PLATE IS AVAILABLE

19 BRANDYWINE DRIVE P.O. BOX 280 DEER PARK, NY 11729 1 631 586-4220 1 800 645-5538 WWW.ALARMCONTROLS.COM EMAIL INFO@ALARMCONTROLS.COM
