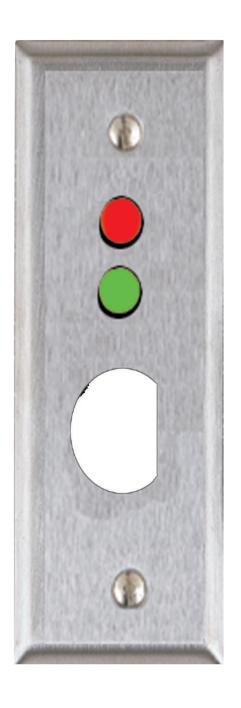

RP-3 Series

Narrow Single Gang Front Plate

Specifications

• • Normally-closed tamper switch
• • 1/4" red and green LEDs that operate on 12 or 24 VDC
• • Current draw: 8 mA at 12 VDC, 12 mA at 24 VDC
• • Narrow 1-1/2" satin stainless steel wall plate

Options

• RP-3M features aluminum back plate with 3/4" double "D" hole for Medeco lock

Features

• • Aluminum back plate with 3/4" "D" hole for Ace lock
• • 6" red and black leads

Models

RP-3

Narrow 1-1/2" Stainless Steel Wall Plate with 1/4" Red & Green LEDs and 3/4" "D" Hole for Ace Lock

RP-3M

Narrow 1-1/2" Stainless Steel Wall Plate with 1/4" Red & Green LEDs and Double "D" Hole for Medeco Lock
