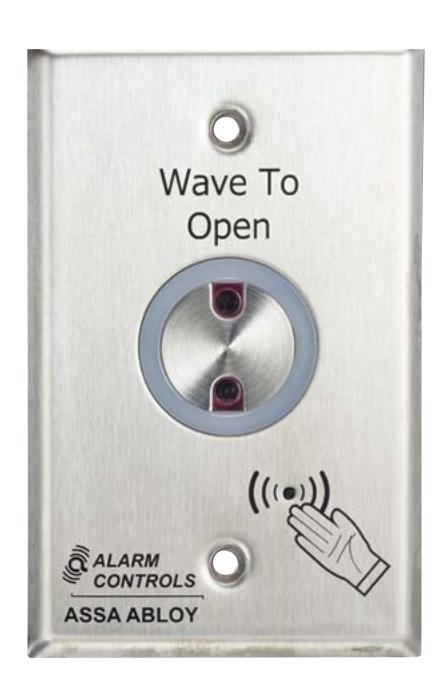

NTS Series

No-Touch Request to Exit

Specifications

• • Operates on 12 or 24 VDC
• • SPDT relay rated 2A at 30 VAC or VDC
• • Operating temperature: -13 to +131F [-25 to +55C]

Features

• • IR sensor detection range up to approximately 4"
• • Dual color LED, red/green; indicates active/inactive status
• • Time delay settable from 1 to 35 seconds
• • Single gang stainless steel, weather-resistant, vandal-resistant face plate

Models

NTS-1

No Touch Switch Dual Color LED, Red/Green indicates Active/Inactive Status
