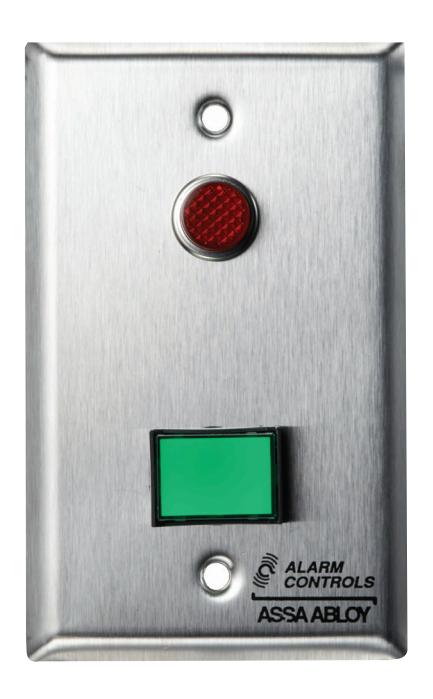

Models SLP-1L and SLP-1M

Single DPDT Latching/ Momentary Switch Monitoring/Control Station

Specifications

• Components mounted on standard single gang electrical wall plate
• One 1/2" red LED operates on 12 or 24 VAC or VDC
• Switch LED operates on 12 or 24 VAC or VDC
• Switch contacts rated 3A at 35 VDC or 120 VAC
• Depth behind plate is 1-1/2"

Features

Designed to release or secure and monitor one electric lock

• Switch and LED terminated with colored leads
• One DPDT illuminated latching or momentary push button with hibrightness built-in LED

Options

• Order 1L for Single DPDT Latching Switch Monitoring/Control Station
• Order 1M for Single DPDT Momentary Switch Monitoring/Control Station
• Green LEDs available
• Yellow LEDs available
• Custom switch legends are available

Models

QI D_11

Single DPDT Latching Switch Monitoring/Control Station

SLP-1M

Single DPDT Momentary Switch Monitoring/Control Station
