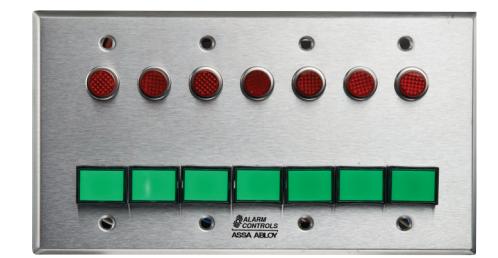

Models SLP-7L and SLP-7M

Seven DPDT Latching/ Momentary Switch Monitoring/Control Station

Specifications

• Components mounted on standard four gang electrical wall plate
• Seven 1/2" red LEDs operate on 12 or 24 VAC or VDC
• Switch LED operates on 12 or 24 VAC or VDC
• Switch contacts rated 3A at 35 VDC or 120 VAC
• Depth behind plate is 1-1/2"

Features

Designed to release or secure and monitor seven electric locks

• Switches and LEDs terminated with colored leads
• Seven DPDT illuminated latching or momentary push buttons with hibrightness built-in LEDs

Options

• Order 7L for Seven DPDT Latching Switch Monitoring/Control Station
• Order 7M for Seven DPDT Momentary Switch Monitoring/Control Station
• Green LEDs available
• Yellow LEDs available
• Custom switch legends are available

Models

SI P-71

Seven DPDT Latching Switch Monitoring/Control Station

SLP-7M

Seven DPDT Momentary Switch Monitoring/Control Station
