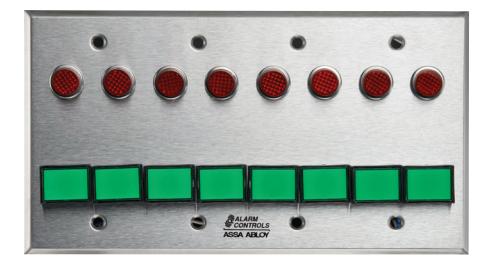

Models SLP-8L and SLP-8M

Eight DPDT Latching/ Momentary Switch Monitoring/Control Station

Specifications

• Components mounted on standard four gang electrical wall plate
• Eight 1/2" red LEDs operate on 12 or 24 VAC or VDC
• Switch LED operates on 12 or 24 VAC or VDC
• Switch contacts rated 3A at 35 VDC or 120 VAC
• Depth behind plate is 1-1/2"

Features

Designed to release or secure and monitor eight electric locks

• Switches and LEDs terminated with colored leads
• Eight DPDT illuminated latching or momentary push buttons with hibrightness built-in LEDs

Options

• Order 8L for Eight DPDT Latching Switch Monitoring/Control Station
• Order 8M for Eight DPDT Momentary Switch Monitoring/Control Station
• Green LEDs available
• Yellow LEDs available
• Custom switch legends are available

Models

ei b oi

Eight DPDT Latching Switch Monitoring/Control Station

SLP-8M

Eight DPDT Momentary Switch Monitoring/Control Station
