Alarm Controls Monitoring Control Station SLP-5L Cutsheet

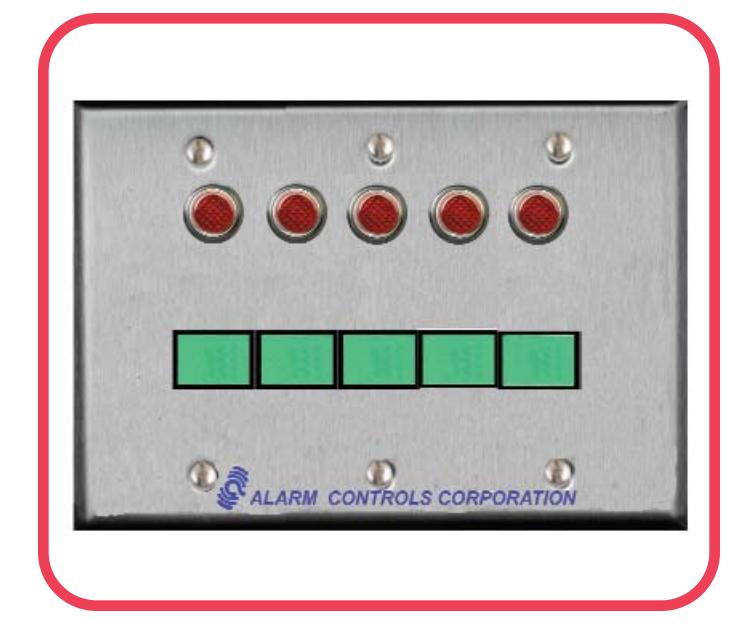

MODEL SLP-5L MONITORING/CONTROL STATION

SPECIFICATIONS

• - DESIGNED TO RELEASE OR SECURE AND MONITOR FIVE ELECTRIC LOCKS
• - FIVE 1/2" RED LEDS OPERATE ON 12 OR 24 VOLTS AC OR DC
• - FIVE D.P.D.T. ILLUMINATED LATCHING PUSHBUTTONS WITH HI-BRIGHTNESS BUILT-IN LED
• - SWITCH LED OPERATE ON 12 OR 24 VOLTS AC OR DC
• - SWITCH CONTACTS RATED 3 AMPS @ 35 VDC OR 120 VAC
• - COMPONENTS MOUNTED ON STANDARD THREE GANG ELECTRICAL WALLPLATE
• - SWITCHES AND LEDS TERMINATED WITH COLORED LEADS
• - GREEN AND YELLOW LEDS ARE AVAILABLE
• - CUSTOM SWITCH LEGENDS ARE AVAILABLE
• - ORDER MODEL SLP-5M FOR SWITCHES WITH MOMENTARY CONTACTS
