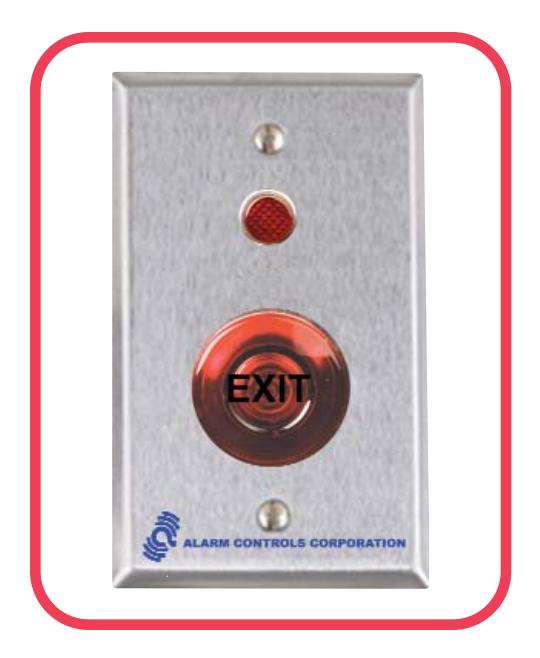

MODEL TS-56R MONITORING/CONTROL STATION

- DESIGNED TO RELEASE OR SECURE AND MONITOR ELECTRIC LOCKS
- 1/2" RED LED OPERATE ON 12 OR 24 VOLTS AC OR DC
- 1-1/2" DIA. RED ILLUMINATED LATCHING PUSHBUTTON WITH HI- BRIGHTNESS BUILT-IN LED
- PUSHBUTTON LED OPERATES ON 12 OR 24 VOLTS AC OR DC
- ONE N/O AND ONE N/C CONTACT RATED 10 AMPS @ 35 VDC OR 120 VAC
- COMPONENTS MOUNTED ON STANDARD SINGLE GANG ELECTRICAL WALLPLATE
- WEATHERPROOF RATED TO IP65, NEMA TYPE 4
- ORDER MODEL TS-55R FOR MOMENTARY CONTACTS

DEER PARK, NY 11729 1 631 586-4220 1 800 645-5538 WWW.ALARMCONTROLS.COM EMAIL INFO@ALARMCONTROLS.COM

FOR 12 VOLT OPERATION WHITE LEAD POSITIVE BLACK LEAD NEGATIVE

FOR 24 VOLT OPERATION RED LEAD POSITIVE BLACK LEAD NEGATIVE
