Models SLP-5L and SLP-5M

Five DPDT Latching/ Momentary Switch Monitoring/Control Station

Specifications

• Components mounted on standard three gang electrical wall plate
• Five 1/2" red LEDs operate on 12 or 24 VAC or VDC
• Switch LED operates on 12 or 24 VAC or VDC
• Switch contacts rated 3A at 35 VDC or 120 VAC
• Depth behind plate is 1-1/2"

Features

Designed to release or secure and monitor five electric locks

• Switches and LEDs terminated with colored leads
• Five DPDT illuminated latching or momentary push buttons with hibrightness built-in LEDs

Options

• Order 5L for Five DPDT Latching Switch Monitoring/Control Station
• Order 5M for Five DPDT Momentary Switch Monitoring/Control Station
• Green LEDs available
• Yellow LEDs available
• Custom switch legends are available

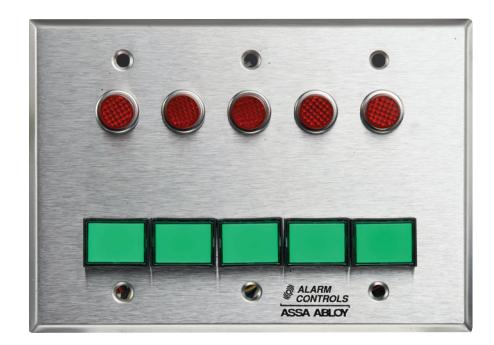

SLP-5M Five DPDT Momentary Switch Monitoring/Control Station

Five DPDT Latching Switch Monitoring/Control Station

Models

SI P-5I
