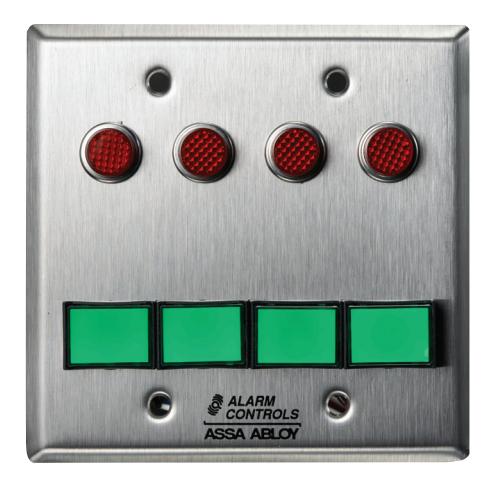

Model SLP-4L and SLP-4M

Four DPDT Latching/ Momentary Switch Monitoring/Control Station

Specifications

• Components mounted on standard double gang electrical wall plate
• Four 1/2" red LEDs operate on 12 or 24 VAC or VDC
• Switch LED operates on 12 or 24 VAC or VDC
• Switch contacts rated 3A at 35 VDC or 120 VAC
• Depth behind plate is 1-1/2"

Features

Designed to release or secure and monitor four electric locks

• Switches and LEDs terminated with colored leads
• Four DPDT illuminated latching or momentary push buttons with hibrightness built-in LEDs

Options

• Order 4L for Four DPDT Latching Switch Monitoring/Control Station
• Order 4M for Four DPDT Momentary Switch Monitoring/Control Station
• Green LEDs available
• Yellow LEDs available
• Custom switch legends are available

Models

SI P-4I

Four DPDT Latching Switch Monitoring/Control Station

SLP-4M

Four DPDT Momentary Switch Monitoring/Control Station
