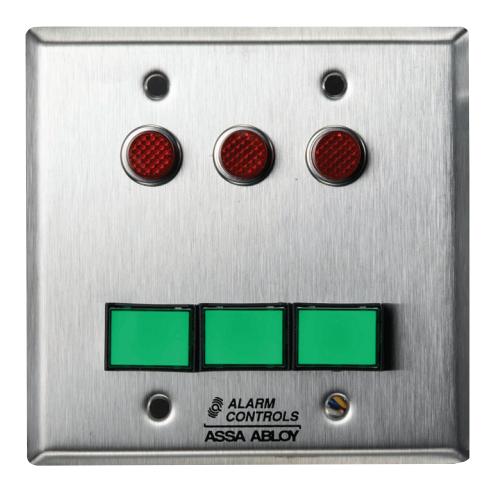

Models SLP-3L and SLP-3M

Three DPDT Latching/ Momentary Switch Monitoring/Control Station

Specifications

• Components mounted on standard double gang electrical wall plate
• Three 1/2" red LEDs operate on 12 or 24 VAC or VDC
• Switch LED operates on 12 or 24 VAC or VDC
• Switch contacts rated 3A at 35 VDC or 120 VAC
• Depth behind plate is 1-1/2"

Features

Designed to release or secure and monitor three electric locks

• Switches and LEDs terminated with colored leads
• Three DPDT illuminated latching or momentary push buttons with hibrightness built-in LEDs

Options

• Order 3L for Three DPDT Latching Switch Monitoring/Control Station
• Order 3M for Three DPDT Momentary Switch Monitoring/Control Station
• Green LEDs available
• Yellow LEDs available
• Custom switch legends are available

Models

SI P-3I

Three DPDT Latching Switch Monitoring/Control Station

SLP-3M

Three DPDT Momentary Switch Monitoring/Control Station
